  2. A0309



A0309


Code: A0309
Category: Alternators
Manufacturer: Bosch
Supplier: As-pl
: 0124655011
STANDARD LINE

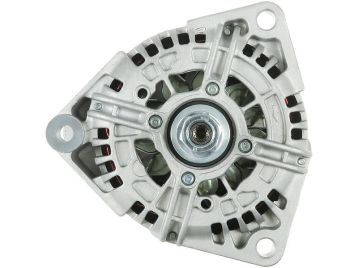

Brand new AS-PL Alternator


Size b: 80.00 mm
Amp.: 110 A
D.1: 12.00
D.2: 12.00
D.3: 11.50
Pulley: n/a
L.1: 196.00 mm
Plug: PL_5003
Voltage: 24 v


Reference number

CodeManufacturer
PRAL7263EFFE
PRAL726B3EFFE
A0309 As-pl
0124655011 Bosch
0124655047 Bosch
1986A00519Bosch
113998Cargo
115492Cargo
CAL10655ASCasco
CAL10655GSCasco
2510Cevam
DRB7520DELCO
ALT1341Electrolog
ALT1379Electrolog
48-5557Elstock
8EL012584-821Hella
11.209.656Iskra / Letrika
553008RIKuhner
553008RIBKuhner
10326243Liebherr
442006Logistik
442106Logistik
LRA02943Lucas
LRA2943Lucas
063536550110Magneti Marelli
MAN2097Magneti Marelli
MG795Mahle
51.26101-7559Man
51.26101-9270Man
51261017253Man
51261017259Man
51261017268Man
5610028Meat & Doria
10326243Opel
PTC-3006Power Truck
860811Prestolite
556.508.110.014Psh
556.508.110.210Psh
556.508.110.215Psh
556.508.110.280Psh
20101556BNReal
20101556OEReal
220-30239Robert's
220-30239NOERobert's
ALT445Rollco
2010655.0Sando
2010655.1Sando
A24BH0011Sidat
A24BH0011ASSidat
12724NWai / Transpo


Usage

BrandModelTypeYearNote
MAN10.220 4.6(TGL)[D0834LFL65]04.2005-
MAN10.250 6.9(TGL)[D0836LFL63]04.2005-
MAN12.220 4.6(TGL)[D0834LFL65]04.2005-
MAN12.250 6.9(TGL)[D0836LFL63]04.2005-
MAN13.250 6.9(TGM)[D0836LFL63]10.2005-
MAN13.290 6.9(TGM)[D0836LFL64]10.2005-
MAN15.240 6.9(TGM)[D0836LFL40]10.2005-
MAN15.240 6.9(TGM)[D0836LFL53]10.2005-
MAN15.250 6.9(TGM)[D0836LFL63]10.2005-
MAN15.280 6.9(TGM)[D0836LFL41]10.2005-
MAN15.280 6.9(TGM)[D0836LFL54]10.2005-
MAN15.290 6.9(TGM)[D0836LFL64]10.2005-
MAN15.340 6.9(TGM)[D0836LFL65]10.2005-
MAN18.240 6.9(TGM)[D0836LFL40]05.2006-
MAN18.240 6.9(TGM)[D0836LFL53]05.2006-
MAN18.250 6.9(TGM)[D0836LFL63]10.2005-
MAN18.290 6.9(TGM)[D0836LFL64]10.2005-
MAN18.340 6.9(TGM)[D0836LFL65]10.2005-
MAN18.360 10.5(TGA)[D2066LF07]01.2006-
MAN18.360 10.5(TGA)[D2066LF27]01.2006-
MAN18.360 10.5(TGA)[D2066LF38]01.2006-
MAN18.440 10.5(TGA)[D2066LF25]09.2005-
MAN18.440 10.5(TGA)[D2066LF36]09.2005-
MAN18.480 12.4(TGA)[D2676LF05]02.2006-
MAN18.480 12.4(TGA)[D2676LF12]02.2006-
MAN18.480 12.8(TGA)[D2876LF12]09.2002-
MAN18.530 12.8(TGA)[D2876LF13]09.2002-
MAN18.540 12.4(TGA)[D2676LF13]08.2006-
MAN19.360 10.5(TGS)[D2066LF07]02.2011-
MAN19.360 10.5(TGS)[D2066LF48]02.2011-
MAN19.360 10.5(TGS)[D2066LF64]02.2011-
MAN19.400 10.5(TGS)[D2066LF06]02.2011-
MAN19.400 10.5(TGS)[D2066LF49]02.2011-
MAN19.400 10.5(TGS)[D2066LF63]02.2011-
MAN19.440 10.5(TGS)[D2066LF50]02.2011-
MAN19.440 10.5(TGS)[D2066LF62]02.2011-
MAN19.440 12.4(TGS)[D2676LF04]02.2011-
MAN19.480 12.4(TGS)[D2676LF02]02.2011-
MAN19.480 12.4(TGS)[D2676LF03]02.2011-
MAN19.480 12.4(TGS)[D2676LF20]02.2011-
MAN19.480 12.4(TGS)[D2676LF31]02.2011-
MAN24.480 12.8(TGA)[D2876LF12]09.2002-
MAN24.530 12.8(TGA)[D2876LF13]09.2001-
MAN26.280 6.9(TGM)[D0836LFL54]10.2005-
MAN26.320 10.5(TGA)[D2066LF39]04.2006-
MAN26.320 10.5(TGS)[D2066LF39]10.2007-
MAN26.320 10.5(TGS)[D2066LF39]07.2008-
MAN26.320 10.5(TGS)[D2066LF43]07.2008-
MAN26.330 6.9(TGM)[D0836LFL55]10.2005-
MAN26.340 6.9(TGM)[D0836LFL65]10.2005-
MAN26.360 10.5(TGA)[D2066LF38]05.2004-
MAN26.360 10.5(TGA)[D2066LF38]06.2004-
MAN26.360 10.5(TGA)[D2066LF38]04.2006-
MAN26.360 10.5(TGS)[D2066LF27]08.2008-
MAN26.360 10.5(TGS)[D2066LF38]10.2007-
MAN26.360 10.5(TGS)[D2066LF38]04.2008-
MAN26.360 10.5(TGS)[D2066LF38]05.2008-
MAN26.360 10.5(TGS)[D2066LF38]08.2008-
MAN26.360 10.5(TGS)[D2066LF42]04.2008-03.2009
MAN26.360 10.5(TGS)[D2066LF42]08.2008-
MAN26.360 10.5(TGX)[D2066LF38]10.2007-
MAN26.360 10.5(TGX)[D2066LF38]07.2008-
MAN26.360 10.5(TGX)[D2066LF42]07.2008-
MAN26.400 10.5(TGA)[D2066LF37]01.2004-
MAN26.400 10.5(TGA)[D2066LF37]04.2006-
MAN26.400 10.5(TGS)[D2066LF26]02.2009-
MAN26.400 10.5(TGS)[D2066LF37]10.2007-
MAN26.400 10.5(TGS)[D2066LF37]05.2008-
MAN26.400 10.5(TGS)[D2066LF37]07.2008-
MAN26.400 10.5(TGS)[D2066LF37]02.2009-
MAN26.400 10.5(TGS)[D2066LF41]07.2008-
MAN26.400 10.5(TGS)[D2066LF41]02.2009-
MAN26.440 10.5(TGA)[D2066LF31]07.2006-
MAN26.440 10.5(TGA)[D2066LF36]01.2004-
MAN26.440 10.5(TGA)[D2066LF36]09.2005-
MAN26.440 10.5(TGS)[D2066LF25]02.2009-
MAN26.440 10.5(TGS)[D2066LF36]10.2007-
MAN26.440 10.5(TGS)[D2066LF36]02.2009-
MAN26.440 10.5(TGS)[D2066LF40]02.2009-
MAN26.440 10.5(TGX)[D2066LF36]12.2007-
MAN26.440 10.5(TGX)[D2066LF36]05.2008-
MAN26.480 12.4(TGA)[D2676LF01]02.2006-
MAN26.480 12.4(TGA)[D2676LF05]01.2006-
MAN26.480 12.4(TGA)[D2676LF05]02.2006-
MAN26.480 12.8(TGA)[D2876LF12]09.2002-
MAN26.530 12.8(TGA)[D2876LF13]01.2001-
MAN26.530 12.8(TGA)[D2876LF13]09.2002-
MAN26.530 12.8(TGA)[D2876LF13]07.2006-
MAN26.540 12.4(TGA)[D2676LF13]08.2006-
MAN28.310 12.0(TGA)[D2866LF26]09.2002-
MAN28.320 10.5(TGA)[D2066LF39]06.2004-
MAN28.320 10.5(TGS)[D2066LF39]07.2008-
MAN28.320 10.5(TGS)[D2066LF43]07.2008-
MAN28.360 10.5(TGA)[D2066LF38]07.2006-
MAN28.360 10.5(TGS)[D2066LF38]08.2008-
MAN28.360 10.5(TGS)[D2066LF42]08.2008-
MAN28.360 12.0(TGA)[D2866LF27]09.2002-
MAN28.400 10.5(TGA)[D2066LF26]04.2006-
MAN28.400 10.5(TGA)[D2066LF37]04.2006-
MAN28.400 10.5(TGA)[D2066LF37]07.2006-
MAN28.400 10.5(TGS)[D2066LF37]08.2008-
MAN28.400 10.5(TGS)[D2066LF41]08.2008-
MAN28.410 12.0(TGA)[D2866LF28]09.2002-
MAN28.440 10.5(TGA)[D2066LF25]09.2005-
MAN28.440 10.5(TGA)[D2066LF36]09.2005-
MAN28.440 10.5(TGA)[D2066LF36]07.2006-
MAN28.440 10.5(TGS)[D2066LF36]08.2008-
MAN28.440 10.5(TGS)[D2066LF40]08.2008-
MAN28.460 12.8(TGA)[D2876LF04]09.2002-
MAN28.480 12.4(TGA)[D2676LF02]02.2006-
MAN28.480 12.4(TGA)[D2676LF05]02.2006-
MAN28.480 12.4(TGA)[D2676LF14]02.2006-
MAN28.480 12.8(TGA)[D2876LF12]09.2002-
MAN28.510 12.8(TGA)[D2876LF05]09.2002-
MAN28.530 12.8(TGA)[D2876LF13]09.2002-
MAN28.540 12.4(TGA)[D2676LF13]08.2006-
MAN32.360 10.5(TGS)[D2066LF38]08.2008-
MAN32.400 10.5(TGS)[D2066LF26]10.2007-
MAN32.400 10.5(TGS)[D2066LF37]10.2007-
MAN32.400 10.5(TGS)[D2066LF37]08.2008-
MAN32.400 10.5(TGS)[D2066LF41]10.2007-
MAN32.440 10.5(TGS)[D2066LF36]08.2008-
MAN32.480 12.8(TGA)[D2876LF12]09.2002-
MAN33.360 10.5(TGA)[D2066LF07]09.2007-09.2006
MAN33.360 10.5(TGS)[D2066LF38]02.2009-06.2005
MAN33.360 10.5(TGS)[D2066LF38]02.2009-
MAN33.360 10.5(TGS)[D2066LF42]02.2009-06.2005
MAN33.360 10.5(TGS)[D2066LF42]02.2009-12.2005
MAN33.360 12.0(TGA)[D2866LF27]01.2001-
MAN33.360 12.0(TGA)[D2866LF27]09.2002-
MAN33.360 12.0(TGA)[D2866LF37]09.2002-
MAN33.390 10.5(TGA)[D2066LF02]09.2007-
MAN33.390 10.5(TGA)[D2066LF06]09.2007-03.2006
MAN33.400 10.5(TGA)[D2066LF02]09.2007-03.2006
MAN33.400 10.5(TGA)[D2066LF06]09.2007-
MAN33.400 10.5(TGS)[D2066LF37]02.2009-
MAN33.400 10.5(TGS)[D2066LF41]02.2009-09.2006
MAN33.410 12.0(TGA)[D2866LF28]10.2000-
MAN33.410 12.0(TGA)[D2866LF32]10.2000-
MAN33.460 12.8(TGA)[D2876LF04]09.2002-
MAN33.460 12.8(TGA)[D2876LF07]09.2002-
MAN33.480 12.8(TGA)[D2876LF12]09.2002-
MAN33.530 12.8(TGA)[D2876LF13]09.2002-
MAN35.310 12.0(TGA)[D2866LF26]06.2003-
MAN35.310 12.0(TGA)[D2866LF26]11.2003-
MAN35.320 10.5(TGS)[D2066LF28]10.2007-
MAN35.320 10.5(TGS)[D2066LF39]10.2007-
MAN35.320 10.5(TGS)[D2066LF39]06.2008-
MAN35.320 10.5(TGS)[D2066LF39]08.2008-
MAN35.320 10.5(TGS)[D2066LF43]10.2007-
MAN35.320 10.5(TGS)[D2066LF43]06.2008-
MAN35.320 10.5(TGS)[D2066LF43]08.2008-
MAN35.360 10.5(TGA)[D2066LF38]07.2006-
MAN35.360 10.5(TGS)[D2066LF27]10.2007-
MAN35.360 10.5(TGS)[D2066LF38]10.2007-
MAN35.360 10.5(TGS)[D2066LF38]08.2008-
MAN35.360 10.5(TGS)[D2066LF42]10.2007-
MAN35.360 10.5(TGS)[D2066LF42]08.2008-
MAN35.360 12.0[D2866LF27]10.2003-
MAN35.400 10.5(TGA)[D2066LF37]02.2004-
MAN35.400 10.5(TGA)[D2066LF37]07.2006-
MAN35.400 10.5(TGA)[D2066LF37]11.2006-
MAN35.400 10.5(TGS)[D2066LF26]10.2007-
MAN35.400 10.5(TGS)[D2066LF37]10.2007-
MAN35.400 10.5(TGS)[D2066LF37]06.2008-
MAN35.400 10.5(TGS)[D2066LF37]08.2008-
MAN35.400 10.5(TGS)[D2066LF41]06.2008-
MAN35.400 10.5(TGS)[D2066LF41]08.2008-
MAN35.410 12.0(TGA)[D2866LF28]10.2003-
MAN35.440 10.5(TGA)[D2066LF36]07.2006-
MAN35.440 10.5(TGA)[D2066LF36]11.2006-
MAN35.480 12.4(TGA)[D2676LF05]07.2006-
MAN35.480 12.8(TGA)[D2876LF12]09.2003-
MAN35.480 12.8(TGA)[D2876LF12]10.2003-
MAN35.480 12.8(TGA)[D2876LF12]07.2006-
MAN35.530 12.8(TGA)[D2876LF13]06.2004-
MAN35.530 12.8(TGA)[D2876LF13]07.2006-
MAN37.320 10.5(TGS)[D2066LF28]10.2007-
MAN37.320 10.5(TGS)[D2066LF39]10.2007-
MAN37.320 10.5(TGS)[D2066LF43]10.2007-
MAN37.360 10.5(TGS)[D2066LF27]10.2007-
MAN37.360 10.5(TGS)[D2066LF38]10.2007-
MAN37.360 10.5(TGS)[D2066LF42]10.2007-
MAN37.360 10.5(TGS)[D2066LF42]07.2008-
MAN39.440 10.5(TGA)[D2066LF36]07.2006-
MAN39.480 12.4(TGA)[D2676LF05]07.2006-
MAN40.400 10.5(TGS)[D2066LF06]02.2011-
MAN40.400 10.5(TGS)[D2066LF49]02.2011-
MAN40.400 10.5(TGS)[D2066LF63]02.2011-
MAN40.410 12.0(TGA)[D2866LF28]04.2004-
MAN40.410 12.0(TGA)[D2866LF32]04.2004-
MAN40.440 10.5(TGS)[D2066LF50]02.2011-
MAN40.440 10.5(TGS)[D2066LF62]02.2011-
MAN40.440 12.4(TGS)[D2676LF04]02.2011-
MAN40.460 12.8(TGA)[D2876LF07]04.2004-
MAN40.480 12.8(TGA)[D2876LF12]04.2004-
MAN40.480 12.8(TGA)[D2876LF25]04.2004-
MAN41.350 10.5(TGA)[D2066LF03]09.2007-
MAN41.360 10.5(TGA)[D2066LF07]12.2008-
MAN41.360 10.5(TGS)[D2066LF38]07.2008-
MAN41.360 10.5(TGS)[D2066LF42]07.2008-
MAN41.390 10.5(TGA)[D2066LF02]09.2007-
MAN41.400 10.5(TGA)[D2066LF06]09.2007-
MAN41.400 10.5(TGA)[D2066LF06]12.2008-
MAN41.440 10.5(TGS)[D2066LF25]10.2007-
MAN41.440 10.5(TGS)[D2066LF36]10.2007-
MAN41.440 10.5(TGS)[D2066LF36]07.2008-
MAN41.440 10.5(TGS)[D2066LF40]10.2007-
MAN41.440 10.5(TGS)[D2066LF40]07.2008-
MAN41.480 12.8(TGA)[D2876LF12]07.2006-
MAN41.530 12.8(TGA)[D2876LF13]09.2002-
MAN41.530 12.8(TGA)[D2876LF13]12.2004-
MAN41.530 12.8(TGA)[D2876LF13]07.2006-
MAN8.220 4.6(TGL)[D0834LFL65]04.2005-
MAN8.250 6.9(TGL)[D0836LFL63]04.2005-
