A1086S
Code: A1086S
Category: Alternators
Manufacturer: DELCO
Supplier: As-pl
: 8600201
STANDARD LINE

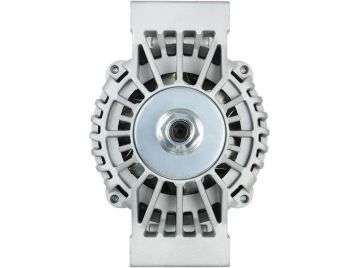

Brand new AS-PL Alternator
Size c: 108.00 mm
Amp.: 160 A
D.1: 10.50
D.2: 10.50
D.3: 12.50
D.4: 12.50
E.1: 80.00 mm
E.2: 80.00 mm
Pulley: n/a
L.1: 243.00 mm
Plug: PL_9111
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD19356A | As-pl | |
| CAL60157GS | Casco | |
| 8600201 | DELCO | |
| 8600422 | DELCO | |
| 8700080 | DELCO | |
| 101-28100 | Dixie | |
| A-1828 | Dixie | |
| 645.526.160.030 | Psh | |
| 645.526.160.390 | Psh | |
| 20109751OE | Real | |
| 240-28112 | Robert's | |
| 2060157.1 | Sando | |
| 8746N | Wai / Transpo | |
| 90-01-4730 | Wilson |
Usage
| Brand | Model | Type | Year | Note |
| FREIGHTLINER | 108SD 12.8 | [DD13] | 01.2013-12.2015 | |
| FREIGHTLINER | 108SD 15.0 | [ISX15] | 01.2013-12.2015 | |
| FREIGHTLINER | 108SD 6.7 | [B6.7] | 01.2017-12.2018 | |
| FREIGHTLINER | 108SD 6.7 | [ISB] | 01.2012-12.2016 | |
| FREIGHTLINER | 108SD 8.3 | [ISC] | 01.2012-12.2015 | |
| FREIGHTLINER | 108SD 8.9 | [ISL] | 01.2012-12.2017 | |
| FREIGHTLINER | 114SD 11.9 | [ISX12G] | 01.2016-12.2017 | |
| FREIGHTLINER | 114SD 12.8 | [DD13] | 01.2012-12.2017 | |
| FREIGHTLINER | 114SD 15.0 | [ISX15] | 01.2013-12.2015 | |
| FREIGHTLINER | 114SD 6.7 | [ISB] | 01.2013-12.2015 | |
| FREIGHTLINER | 114SD 8.3 | [ISC] | 01.2012-12.2015 | |
| FREIGHTLINER | 114SD 8.9 | [ISL-G] | 01.2012-12.2016 | |
| FREIGHTLINER | 114SD 8.9 | [ISL] | 01.2012-12.2016 | |
| FREIGHTLINER | 122SD 12.8 | [DD13] | 01.2015-12.2016 | |
| FREIGHTLINER | 122SD 14.8 | [DD15] | 01.2015-12.2016 | |
| FREIGHTLINER | 122SD 15.0 | [ISX15] | 01.2015-12.2016 | |
| FREIGHTLINER | 122SD 15.6 | [DD16] | 01.2015-12.2016 | |
| FREIGHTLINER | B2 6.7 | [ISB] | 01.2013-12.2016 | |
| FREIGHTLINER | Business Class M2 100 12.8 | [DD13] | 01.2009-12.2015 | |
| FREIGHTLINER | Business Class M2 100 15.0 | [ISX15] | 01.2009-12.2015 | |
| FREIGHTLINER | Business Class M2 100 4.3 | [MBE904] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 100 6.4 | [MBE906] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 100 6.7 | [ISB] | 01.2008-12.2015 | |
| FREIGHTLINER | Business Class M2 100 7.2 | [MBE926] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 100 8.3 | [ISC] | 01.2008-12.2012 | |
| FREIGHTLINER | Business Class M2 100 8.9 | [ISL] | 01.2013-12.2016 | |
| FREIGHTLINER | Business Class M2 106 11.1 | [C11] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 106 12.5 | [C13] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 106 12.8 | [DD13] | 01.2009-12.2016 | |
| FREIGHTLINER | Business Class M2 106 12.8 | [MBE4000] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 106 15.0 | [ISX15] | 01.2009-12.2015 | |
| FREIGHTLINER | Business Class M2 106 4.3 | [MBE904] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 106 6.4 | [MBE906] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 106 6.7 | [B6.7] | 01.2017-12.2018 | |
| FREIGHTLINER | Business Class M2 106 6.7 | [ISB] | 01.2008-12.2016 | |
| FREIGHTLINER | Business Class M2 106 7.2 | [C7] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 106 7.2 | [MBE926] | 01.2008-12.2015 | |
| FREIGHTLINER | Business Class M2 106 8.3 | [ISC] | 01.2008-12.2016 | |
| FREIGHTLINER | Business Class M2 106 8.8 | [C9] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 106 8.9 | [ISL] | 01.2010-12.2017 | |
| FREIGHTLINER | Business Class M2 112 11.1 | [C11] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 112 12.5 | [C13] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 112 12.8 | [DD13] | 01.2009-12.2017 | |
| FREIGHTLINER | Business Class M2 112 12.8 | [MBE4000] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 112 14.8 | [DD15] | 01.2008-12.2017 | |
| FREIGHTLINER | Business Class M2 112 15.0 | [ISX15] | 01.2009-12.2015 | |
| FREIGHTLINER | Business Class M2 112 15.6 | [DD16] | 01.2010-12.2017 | |
| FREIGHTLINER | Business Class M2 112 4.3 | [MBE904] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 112 6.4 | [MBE906] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 112 6.7 | [B6.7] | 01.2017-12.2018 | |
| FREIGHTLINER | Business Class M2 112 6.7 | [ISB] | 01.2008-12.2016 | |
| FREIGHTLINER | Business Class M2 112 7.2 | [C7] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 112 7.2 | [MBE926] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 112 8.3 | [ISC] | 01.2008-12.2016 | |
| FREIGHTLINER | Business Class M2 112 8.8 | [C9] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 112 8.9 | [ISL] | 01.2010-12.2017 | |
| FREIGHTLINER | Cascadia 11.9 | [ISX12G] | 01.2012-12.2017 | |
| FREIGHTLINER | Cascadia 11.9 | [ISX12] | 01.2012-12.2017 | |
| FREIGHTLINER | Cascadia 12.8 | [DD13] | 01.2009-12.2017 | |
| FREIGHTLINER | Cascadia 14.8 | [DD15] | 01.2008-12.2017 | |
| FREIGHTLINER | Cascadia 15.0 | [ISX15] | 01.2009-12.2017 | |
| FREIGHTLINER | Cascadia 15.6 | [DD16] | 01.2010-12.2016 | |
| FREIGHTLINER | Columbia 14.8 | [DD15] | 01.2008-12.2011 | |
| FREIGHTLINER | Coronado 12.8 | [DD13] | 01.2010-12.2017 | |
| FREIGHTLINER | Coronado 14.8 | [DD15] | 01.2010-12.2017 | |
| FREIGHTLINER | Coronado 15.0 | [ISX15] | 01.2011-12.2017 | |
| FREIGHTLINER | Coronado 15.6 | [DD16] | 01.2011-12.2017 | |
| FREIGHTLINER | Coronado SD 12.8 | [DD13] | 01.2010-12.2016 | |
| FREIGHTLINER | MB-65 6.7 | [ISB] | 01.2015-12.2016 | |
| FREIGHTLINER | MT45 6.7 | [ISB] | 01.2013-12.2017 | |
| FREIGHTLINER | MT55 6.7 | [ISB] | 01.2013-12.2017 | |
| FREIGHTLINER | S2 6.7 | [ISB] | 01.2015-12.2016 | |
| FREIGHTLINER | S2 7.2 | [MBE926] | 01.2015-12.2016 | |
| FREIGHTLINER | S2C 6.7 | [ISB] | 01.2015-12.2016 | |
| FREIGHTLINER | S2RV 6.7 | [B6.7] | 01.2017-12.2017 | |
| FREIGHTLINER | S2RV 6.7 | [ISB] | 01.2015-12.2016 | |
| FREIGHTLINER | XCL 6.7 | [ISB] | 01.2013-12.2015 | |
| FREIGHTLINER | XCL 8.3 | [ISC] | 01.2013-12.2015 | |
| FREIGHTLINER | XCL 8.9 | [ISL] | 01.2013-12.2015 | |
| FREIGHTLINER | XCM 12.8 | [DD13] | 01.2013-12.2015 | |
| FREIGHTLINER | XCM 15.0 | [ISX15] | 01.2013-12.2015 | |
| FREIGHTLINER | XCM 6.7 | [ISB] | 01.2013-12.2015 | |
| FREIGHTLINER | XCM 8.3 | [ISC] | 01.2013-12.2015 | |
| FREIGHTLINER | XCM 8.9 | [ISL] | 01.2013-12.2015 | |
| FREIGHTLINER | XCP 12.8 | [DD13] | 01.2013-12.2015 | |
| FREIGHTLINER | XCP 15.0 | [ISX15] | 01.2013-12.2015 | |
| FREIGHTLINER | XCR 6.7 | [ISB] | 01.2013-12.2015 | |
| FREIGHTLINER | XCR 8.3 | [ISC] | 01.2013-12.2015 | |
| FREIGHTLINER | XCR 8.9 | [ISL] | 01.2013-12.2015 | |
| FREIGHTLINER | XCS 6.7 | [ISB] | 01.2013-12.2015 | |
| FREIGHTLINER | XCS 8.3 | [ISC] | 01.2013-12.2015 | |
| FREIGHTLINER | XCS 8.9 | [ISL] | 01.2013-12.2015 | |
| International | 9100 15.0 | [ISX15] | 01.2013-12.2017 | |
| International | 9100 15.2 | [MaxxForce15] | 01.2013-12.2013 | |
| International | 9900 15.0 | [ISX15] | 01.2013-12.2017 | |
| Peterbilt | 210 6.7 | [PX-7] | 01.2014-12.2017 |
