A2091S


Code: A2091S

Category: Alternators

Manufacturer: Hitachi

Supplier: As-pl

: LR1190-941

STANDARD LINE

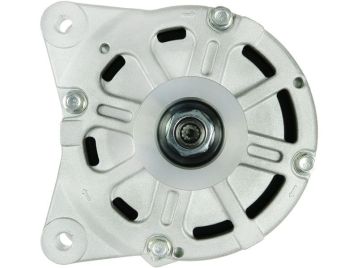

Brand new AS-PL Alternator



Size a: 30.00 mm

Size b: 14.00 mm

Size c: 60.50 mm

Amp.: 190 A

D.1: 9.00

D.2: 9.00

D.3: M8x1.25

D.4: M8x1.25

Pulley: AP

L.1: 203.00 mm

Plug: PL_2306

G: 7

O.d.1: 56.00 mm

Water cooled: Yes

Voltage: 12 v



Reference number

CodeManufacturer
UD13152AAs-pl
AEG1454Autoelectro
A-80629Dixie
LR1190-941 Hitachi
ALH7531Krauf
ALH7531NWKrauf
205.414.190Psh
021903016KVw
021903016KXVw
90-25-1220Wilson


Usage

BrandModelTypeYearNote
AUDIQ7 3.6 FSi Quattro[BHK]08.2006-05.2010
