  3. A3691S



A3691S


Code: A3691S

Category: Alternators

Manufacturer: Valeo

Supplier: As-pl

: FG18T114

STANDARD LINE

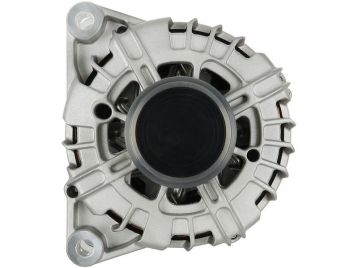

Brand new AS-PL Alternator



Size a: 49.00 mm

Size b: 21.00 mm

Size c: 46.50 mm

Amp.: 180 A

D.1: 10.50

D.2: 10.50

D.3: M10x1.5

D.4: M10x1.5

Pulley: AFP

L.1: 189.00 mm

Plug: PL_3402

G: 6

O.d.1: 54.40 mm

Voltage: 12 v



Reference number

CodeManufacturer
AZMT-49-035-2288A.z. Meisterteile
AC-CBA6202Acauto
CGB-87530Ainde
10445003Alanko
11445003Alanko
UD90798AAs-pl
L85840Atl Autotechnik
L85841Atl Autotechnik
AEK3920Autoelectro
AVA049Autoteam
116595Cargo
F032116595Cargo
CAL15049ASCasco
CAL15049GSCasco
4554Cevam
DRA1645DELCO
2193251802Dri
A-14624Dts
57789Eai
28-7530Elstock
209313Era
12090872Eurotec
114932Farcom
1870357 Ford
2380382Ford
2438699Ford
DS7T-10300-KBFord
DS7T-10300-KCFord
DS7T-10300-KD Ford
DS7T-10300-KEFord
REDS7T10300KDFord
8EL015637-561Hella
3123350Henkel Parts
H5515134Hoffer
20015049AVItab Automotive
20015049OVItab Automotive
ALV3687Krauf
554706RIKuhner
554706RIRKuhner
554706RIVKuhner
442680Logistik
LRA03920Lucas
LRA3920Lucas
5515134Meat & Doria
4825011Nk
89216013Powermax
IR5653Protech
595.579.180.000Psh
595.579.180.004Psh
595.579.180.500Psh
595.579.180.502Psh
595.579.180.505Psh
QRA3426QUINTON HAZELL
20179940BNReal
20179940OEReal
ALT2412CPRollco
2015049.0Sando
2015049.1Sando
A12VA0305ASSidat
ALT170490SIOM
ALT170490ASIOM
FO8139Snra
STX101690Stardax
STX101690RStardax
789ST75Startcar
AL03483Tmi
439957Valeo
440713Valeo
FG18T114 Valeo
FG18T197 Valeo
21055NWai / Transpo
WG2011265Wilmink Group
WG2263650Wilmink Group
ALT14624Woodauto
VAL439957Woodauto


Usage

BrandModelTypeYearNote
FORDGalaxy 2.0 TDCi[T7CI]01.2015-06.2018
FORDGalaxy 2.0 TDCi[T7CJ]01.2015-06.2018
FORDGalaxy 2.0 TDCi[T7CK]01.2015-06.2018
FORDGalaxy 2.0 TDCi[T7CL]01.2015-06.2018
FORDGalaxy 2.0 TDCi[T8CG]01.2015-06.2018
FORDGalaxy 2.0 TDCi[T8CH]01.2015-06.2018
FORDGalaxy 2.0 TDCi[T8CI]01.2015-06.2018
FORDGalaxy 2.0 TDCi[T8CJ]01.2015-06.2018
FORDGalaxy 2.0 TDCi[UFCA]01.2015-06.2018
FORDGalaxy 2.0 TDCi[UFCB]01.2015-06.2018
FORDGalaxy 2.0 TDCi 4x4[T7CI]05.2015-06.2018
FORDGalaxy 2.0 TDCi 4x4[T7CJ]05.2015-06.2018
FORDGalaxy 2.0 TDCi 4x4[T7CL]05.2015-06.2018
FORDGalaxy 2.0 TDCi 4x4[T8CG]05.2015-06.2018
FORDGalaxy 2.0 TDCi 4x4[T8CH]05.2015-06.2018
FORDGalaxy 2.0 TDCi 4x4[T8CI]05.2015-06.2018
FORDGalaxy 2.0 TDCi 4x4[T8CJ]05.2015-06.2018
FORDGalaxy 2.0 TDCi Bi-Turbo[T9CB]01.2015-06.2018
FORDGalaxy 2.0 TDCi Bi-Turbo[T9CC]01.2015-06.2018
FORDGalaxy 2.0 TDCi Bi-Turbo[T9CD]01.2015-06.2018
FORDMondeo 2.0 TDCi[T7CA]09.2014-
FORDMondeo 2.0 TDCi[T7CC]09.2014-
FORDMondeo 2.0 TDCi[T7CD]09.2014-
FORDMondeo 2.0 TDCi[T7CE]09.2014-
FORDMondeo 2.0 TDCi[T7CF]09.2014-
FORDMondeo 2.0 TDCi[T7CN]09.2014-
FORDMondeo 2.0 TDCi[T7CP]09.2014-
FORDMondeo 2.0 TDCi[T7CQ]09.2014-
FORDMondeo 2.0 TDCi[T8CA]09.2014-
FORDMondeo 2.0 TDCi[T8CA]05.2015-
FORDMondeo 2.0 TDCi[T8CB]09.2014-
FORDMondeo 2.0 TDCi[T8CC]09.2014-
FORDMondeo 2.0 TDCi[T8CC]05.2015-
FORDMondeo 2.0 TDCi[T8CD]09.2014-
FORDMondeo 2.0 TDCi[T8CD]05.2015-
FORDMondeo 2.0 TDCi[T8CL]09.2014-
FORDMondeo 2.0 TDCi[T8CL]05.2015-
FORDMondeo 2.0 TDCi[T8CP]09.2014-
FORDMondeo 2.0 TDCi 4X4[7CQ]02.2015-
FORDMondeo 2.0 TDCi 4X4[T7CA]09.2014-
FORDMondeo 2.0 TDCi 4X4[T7CA]02.2015-
FORDMondeo 2.0 TDCi 4X4[T7CC]09.2014-
FORDMondeo 2.0 TDCi 4X4[T7CC]02.2015-
FORDMondeo 2.0 TDCi 4X4[T7CD]09.2014-
FORDMondeo 2.0 TDCi 4X4[T7CD]02.2015-
FORDMondeo 2.0 TDCi 4X4[T7CE]09.2014-
FORDMondeo 2.0 TDCi 4X4[T7CE]02.2015-
FORDMondeo 2.0 TDCi 4X4[T7CF]09.2014-
FORDMondeo 2.0 TDCi 4X4[T7CF]02.2015-
FORDMondeo 2.0 TDCi 4X4[T7CN]09.2014-
FORDMondeo 2.0 TDCi 4X4[T7CN]02.2015-
FORDMondeo 2.0 TDCi 4X4[T7CP]09.2014-
FORDMondeo 2.0 TDCi 4X4[T7CP]02.2015-
FORDMondeo 2.0 TDCi 4X4[T7CQ]09.2014-
FORDMondeo 2.0 TDCi 4X4[T7CQ]02.2015-
FORDMondeo 2.0 TDCi 4X4[T8CA]02.2015-
FORDMondeo 2.0 TDCi 4X4[T8CA]05.2015-
FORDMondeo 2.0 TDCi 4X4[T8CB]02.2015-
FORDMondeo 2.0 TDCi 4X4[T8CC]02.2015-
FORDMondeo 2.0 TDCi 4X4[T8CC]05.2015-
FORDMondeo 2.0 TDCi 4X4[T8CD]02.2015-
FORDMondeo 2.0 TDCi 4X4[T8CD]05.2015-
FORDMondeo 2.0 TDCi 4X4[T8CL]02.2015-
FORDMondeo 2.0 TDCi Bi-Turbo[T9CA]03.2015-
FORDMondeo 2.0 TDCi Bi-Turbo[T9CA]05.2015-
FORDS-Max 2.0 TDCi[T7CI]01.2015-06.2018
FORDS-Max 2.0 TDCi[T7CJ]01.2015-06.2018
FORDS-Max 2.0 TDCi[T7CK]01.2015-06.2018
FORDS-Max 2.0 TDCi[T7CL]01.2015-06.2018
FORDS-Max 2.0 TDCi[T8CG]01.2015-06.2018
FORDS-Max 2.0 TDCi[T8CH]01.2015-06.2018
FORDS-Max 2.0 TDCi[T8CI]01.2015-06.2018
FORDS-Max 2.0 TDCi[T8CJ]01.2015-06.2018
FORDS-Max 2.0 TDCi[UFCA]01.2015-06.2018
FORDS-Max 2.0 TDCi[UFCB]01.2015-06.2018
FORDS-Max 2.0 TDCi[UFCD]01.2015-06.2018
FORDS-Max 2.0 TDCi 4X4[T7CJ]01.2015-06.2018
FORDS-Max 2.0 TDCi 4X4[T7CK]01.2015-06.2018
FORDS-Max 2.0 TDCi 4X4[T7CL]01.2015-06.2018
FORDS-Max 2.0 TDCi 4X4[T7C]01.2015-06.2018
FORDS-Max 2.0 TDCi 4X4[T8CG]01.2015-06.2018
FORDS-Max 2.0 TDCi 4X4[T8CH]01.2015-06.2018
FORDS-Max 2.0 TDCi 4X4[T8CI]01.2015-06.2018
FORDS-Max 2.0 TDCi 4X4[T8CJ]01.2015-06.2018
FORDS-Max 2.0 TDCi BI-Turbo[T9CB]01.2015-06.2018
FORDS-Max 2.0 TDCi BI-Turbo[T9CC]01.2015-06.2018
