A4095

Code: A4095

Category: Alternators

Manufacturer: Magneti Marelli

Supplier: As-pl

: 63321715

STANDARD LINE

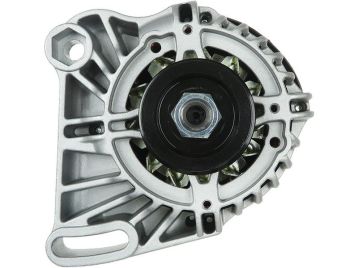

Brand new AS-PL Alternator

Size a: 44.00 mm

Size b: 32.00 mm

Size c: 83.50 mm

Amp.: 85 A

D.1: 12.50

D.2: 12.00

D.3: 12.50

Pulley: AP

L.1: 186.00 mm

Plug: PL_9104

G: 4

O.d.1: 60.00 mm

Voltage: 12 v

Reference number

Code

Manufacturer

ALTL284

3EFFE

ALTL284M

3EFFE

ALTL284NE

3EFFE

ALTL284U

3EFFE

PRAL284

3EFFE

PRAL284M

3EFFE

PRAL284U

3EFFE

CGB-83748

Ainde

ANM35864X

Andel

A4095

As-pl

ABR4047	As-pl	Alternator brackets
ABR4083S	As-pl	Alternator brackets
APC4027S	As-pl	Alternator plastic covers
AP4009	As-pl	Alternator pulleys
ARC4018	As-pl	Alternator rectifiers
ARE6082	As-pl	Alternator regulators
ARS4006	As-pl	Alternator repair kits
ARS4003	As-pl	Alternator repair kits
ARS4013	As-pl	Alternator repair kits
ARS6018	As-pl	Alternator repair kits
ARS4010	As-pl	Alternator repair kits
ARS4005	As-pl	Alternator repair kits
ARS4007	As-pl	Alternator repair kits
ARS9047	As-pl	Alternator repair kits
ABEC4001	As-pl	Alternator repair kits
ARS9075S	As-pl	Alternator repair kits
ARS9080S	As-pl	Alternator repair kits
ARS4016	As-pl	Alternator repair kits
ARS9014	As-pl	Alternator repair kits
ARS4017	As-pl	Alternator repair kits
AR4002	As-pl	Alternator rotors
ASL9014	As-pl	Alternator slip rings
AS4005	As-pl	Alternator stators
ABE9004(KOYO)	As-pl	Bearings
ABE9004(FAG)	As-pl	Bearings
ABE9004	As-pl	Bearings
ABE9004(NTN)	As-pl	Bearings
ABE9004(NSK)	As-pl	Bearings
ABE9004(NACHI)	As-pl	Bearings
ARS0058	As-pl	Free wheel pulleys

AEC1350

Autoelectro

0986080550

Bosch

STA0251R

Bovez

115476

Cargo

CAL30151AS

Casco

CAL30151GS

Casco

40091

Cevam

DA4754

DELCO

DRA3644

DELCO

DAN629

Denso

EAA-222232

Eaa

56969

Eai

ALT9016

Electrolog

28-3748

Elstock

210086

Era

46231696

Fiat

46437413

Fiat

46516740

Fiat

46758245

Fiat

46769375

Fiat

71721108

Fiat

91600760

Fiat

CA1350IR

Hc Parts

8EL012240-801

Hella

ALE1350

Krauf

301350RI

Kuhner

301350RIR

Kuhner

LRA01885

Lucas

LRA1885

Lucas

063321629010

Magneti Marelli

ARC6063	MAGNETI MARELLI	Alternator rectifiers
ARC6059	MAGNETI MARELLI	Alternator rectifiers
ARC4037	MAGNETI MARELLI	Alternator rectifiers
ARC4018	MAGNETI MARELLI	Alternator rectifiers
AR4002	MAGNETI MARELLI	Alternator rotors
AR4002(MM)	MAGNETI MARELLI	Alternator rotors
AR4002PR	MAGNETI MARELLI	Alternator rotors

063321715010

Magneti Marelli

63321629

Magneti Marelli

ABR4049	MAGNETI MARELLI	Alternator brackets
AB4001(CARGO)	MAGNETI MARELLI	Alternator brush sets
ZS0003	MAGNETI MARELLI	Alternator brush sets
JX44	MAGNETI MARELLI	Alternator brush sets
AB4001	MAGNETI MARELLI	Alternator brush sets
AP4009PR	MAGNETI MARELLI	Alternator pulleys
AP4009	MAGNETI MARELLI	Alternator pulleys
ARC4007	MAGNETI MARELLI	Alternator rectifiers
ARC6063	MAGNETI MARELLI	Alternator rectifiers
ARC6059	MAGNETI MARELLI	Alternator rectifiers
ARC4037	MAGNETI MARELLI	Alternator rectifiers
ARC4018	MAGNETI MARELLI	Alternator rectifiers
ARE4004(DENSO)	MAGNETI MARELLI	Alternator regulators
ARE4004M	MAGNETI MARELLI	Alternator regulators
ARE4004(OEM)	MAGNETI MARELLI	Alternator regulators
ARE4004(MM)	MAGNETI MARELLI	Alternator regulators
ARE4004S	MAGNETI MARELLI	Alternator regulators
ARE4004	MAGNETI MARELLI	Alternator regulators
ARE4051S	MAGNETI MARELLI	Alternator regulators
ARS4011	MAGNETI MARELLI	Alternator repair kits
ARS9057S	MAGNETI MARELLI	Alternator repair kits
232057	MAGNETI MARELLI	Alternator repair kits
ARS4010	MAGNETI MARELLI	Alternator repair kits
ARS9161S	MAGNETI MARELLI	Alternator repair kits
ARS4008	MAGNETI MARELLI	Alternator repair kits
ARS4007	MAGNETI MARELLI	Alternator repair kits
ARS4014	MAGNETI MARELLI	Alternator repair kits
ARS5048S	MAGNETI MARELLI	Alternator repair kits
ARS4004	MAGNETI MARELLI	Alternator repair kits
ARS4012	MAGNETI MARELLI	Alternator repair kits
AR4002(MM)	MAGNETI MARELLI	Alternator rotors
AR4002PR	MAGNETI MARELLI	Alternator rotors
AR4002	MAGNETI MARELLI	Alternator rotors
ASL9014	MAGNETI MARELLI	Alternator slip rings
138441	MAGNETI MARELLI	Alternator slip rings
ABE9004(KOYO)	MAGNETI MARELLI	Bearings
ABE9004(KBC)	MAGNETI MARELLI	Bearings
ABE9039(SKF)	MAGNETI MARELLI	Bearings
ABE9039	MAGNETI MARELLI	Bearings
ABE9039(NSK)	MAGNETI MARELLI	Bearings
ABE9004	MAGNETI MARELLI	Bearings
ABE9004(NACHI)	MAGNETI MARELLI	Bearings
ZS0002	MAGNETI MARELLI	Bearings
141071	MAGNETI MARELLI	Bearings
ABE9004(NSK)	MAGNETI MARELLI	Bearings
ABE9004(FAG)	MAGNETI MARELLI	Bearings
ABE9004(NTN)	MAGNETI MARELLI	Bearings
ABE9039(KOYO)	MAGNETI MARELLI	Bearings
ABE9004(SKF)	MAGNETI MARELLI	Bearings
ARS0058	MAGNETI MARELLI	Free wheel pulleys

63321715

Magneti Marelli

ABR4083S	MAGNETI MARELLI	Alternator brackets
ABR4049	MAGNETI MARELLI	Alternator brackets
ABR4048	MAGNETI MARELLI	Alternator brackets
ABR4047	MAGNETI MARELLI	Alternator brackets
JX44	MAGNETI MARELLI	Alternator brush sets
AB4001	MAGNETI MARELLI	Alternator brush sets
ZS0003	MAGNETI MARELLI	Alternator brush sets
AB4001(CARGO)	MAGNETI MARELLI	Alternator brush sets
APC4027S	MAGNETI MARELLI	Alternator plastic covers
AP6033S	MAGNETI MARELLI	Alternator pulleys
AP4009	MAGNETI MARELLI	Alternator pulleys
ARC4037	MAGNETI MARELLI	Alternator rectifiers
ARC6063	MAGNETI MARELLI	Alternator rectifiers
ARC4018	MAGNETI MARELLI	Alternator rectifiers
ARC6059	MAGNETI MARELLI	Alternator rectifiers
ARE6082	MAGNETI MARELLI	Alternator regulators
ABEC4001	MAGNETI MARELLI	Alternator repair kits
ARS4006	MAGNETI MARELLI	Alternator repair kits
ARS5048S	MAGNETI MARELLI	Alternator repair kits
ARS4010	MAGNETI MARELLI	Alternator repair kits
ARS9057S	MAGNETI MARELLI	Alternator repair kits
ARS4003	MAGNETI MARELLI	Alternator repair kits
ARS4004	MAGNETI MARELLI	Alternator repair kits
ARS4008	MAGNETI MARELLI	Alternator repair kits
ARS6018	MAGNETI MARELLI	Alternator repair kits
ARS4013	MAGNETI MARELLI	Alternator repair kits
ARS4007	MAGNETI MARELLI	Alternator repair kits
ARS9014	MAGNETI MARELLI	Alternator repair kits
ARS9161S	MAGNETI MARELLI	Alternator repair kits
ARS4014	MAGNETI MARELLI	Alternator repair kits
ARS4005	MAGNETI MARELLI	Alternator repair kits
ARS9047	MAGNETI MARELLI	Alternator repair kits
ARS9080S	MAGNETI MARELLI	Alternator repair kits
ARS4017	MAGNETI MARELLI	Alternator repair kits
ARS4016	MAGNETI MARELLI	Alternator repair kits
231827	MAGNETI MARELLI	Alternator repair kits
ARS9075S	MAGNETI MARELLI	Alternator repair kits
AR4002PR	MAGNETI MARELLI	Alternator rotors
AR4002	MAGNETI MARELLI	Alternator rotors
AR4002(MM)	MAGNETI MARELLI	Alternator rotors
ASL9014	MAGNETI MARELLI	Alternator slip rings
AS4005PR	MAGNETI MARELLI	Alternator stators
AS4005	MAGNETI MARELLI	Alternator stators
AS4004	MAGNETI MARELLI	Alternator stators
ZS0002	MAGNETI MARELLI	Bearings
ABE9039(SKF)	MAGNETI MARELLI	Bearings
ABE9039	MAGNETI MARELLI	Bearings
ABE9004(KOYO)	MAGNETI MARELLI	Bearings
141071	MAGNETI MARELLI	Bearings
ABE9004	MAGNETI MARELLI	Bearings
ABE9039(NSK)	MAGNETI MARELLI	Bearings
ABE9004(FAG)	MAGNETI MARELLI	Bearings
ABE9004(KBC)	MAGNETI MARELLI	Bearings
ABE9004(NACHI)	MAGNETI MARELLI	Bearings
ABE9039(KOYO)	MAGNETI MARELLI	Bearings
ABE9004(NSK)	MAGNETI MARELLI	Bearings
ABE9004(NTN)	MAGNETI MARELLI	Bearings
ABE9004(SKF)	MAGNETI MARELLI	Bearings
ARS0058	MAGNETI MARELLI	Free wheel pulleys

63321782

Magneti Marelli

JX44	MAGNETI MARELLI	Alternator brush sets
AB4001(CARGO)	MAGNETI MARELLI	Alternator brush sets
ZS0003	MAGNETI MARELLI	Alternator brush sets
AB4001	MAGNETI MARELLI	Alternator brush sets
ARC6063	MAGNETI MARELLI	Alternator rectifiers
ARC6059	MAGNETI MARELLI	Alternator rectifiers
ARC4037	MAGNETI MARELLI	Alternator rectifiers
ARC4018	MAGNETI MARELLI	Alternator rectifiers
ABEC4001	MAGNETI MARELLI	Alternator repair kits
ARS9161S	MAGNETI MARELLI	Alternator repair kits
ARS4016	MAGNETI MARELLI	Alternator repair kits
231827	MAGNETI MARELLI	Alternator repair kits
ARS4010	MAGNETI MARELLI	Alternator repair kits
ARS9057S	MAGNETI MARELLI	Alternator repair kits
ARS5048S	MAGNETI MARELLI	Alternator repair kits
ARS4004	MAGNETI MARELLI	Alternator repair kits
ARS4008	MAGNETI MARELLI	Alternator repair kits
ARS4007	MAGNETI MARELLI	Alternator repair kits
AR4002PR	MAGNETI MARELLI	Alternator rotors
AR4002	MAGNETI MARELLI	Alternator rotors
AR4002(MM)	MAGNETI MARELLI	Alternator rotors
ASL9014	MAGNETI MARELLI	Alternator slip rings
AS4005	MAGNETI MARELLI	Alternator stators
AS4004	MAGNETI MARELLI	Alternator stators
AS4005PR	MAGNETI MARELLI	Alternator stators
ABE9004(NSK)	MAGNETI MARELLI	Bearings
ABE9004(KBC)	MAGNETI MARELLI	Bearings
ABE9004(NTN)	MAGNETI MARELLI	Bearings
ABE9004(SKF)	MAGNETI MARELLI	Bearings
ABE9039	MAGNETI MARELLI	Bearings
ABE9004	MAGNETI MARELLI	Bearings
141071	MAGNETI MARELLI	Bearings
ABE9039(SKF)	MAGNETI MARELLI	Bearings
ABE9004(NACHI)	MAGNETI MARELLI	Bearings
ABE9004(FAG)	MAGNETI MARELLI	Bearings
ABE9039(KOYO)	MAGNETI MARELLI	Bearings
ZS0002	MAGNETI MARELLI	Bearings
ABE9039(NSK)	MAGNETI MARELLI	Bearings
ABE9004(KOYO)	MAGNETI MARELLI	Bearings

944390902180

Magneti Marelli

MAN1039

Magneti Marelli

MRA90218

Magneti Marelli

A5T05473

MITSUBISHI

AB5009(IKA)	MITSUBISHI	Alternator brush sets
38-8307	MITSUBISHI	Alternator brush sets
ZS0003	MITSUBISHI	Alternator brush sets
140817	MITSUBISHI	Alternator brush sets
AB5009	MITSUBISHI	Alternator brush sets
ARE5017S	MITSUBISHI	Alternator regulators
ARE5017	MITSUBISHI	Alternator regulators
ASL9022	MITSUBISHI	Alternator slip rings
134028	MITSUBISHI	Alternator stators
AS5008	MITSUBISHI	Alternator stators
10-800-4	MITSUBISHI	Bearings
ABE9006(NTN)	MITSUBISHI	Bearings
10-800-4E	MITSUBISHI	Bearings
ABE9006(NSK)	MITSUBISHI	Bearings
ABE9028	MITSUBISHI	Bearings
ABE9006(FAG)	MITSUBISHI	Bearings
ABE9027	MITSUBISHI	Bearings
6-303-4E	MITSUBISHI	Bearings
140419	MITSUBISHI	Bearings
ABE9006	MITSUBISHI	Bearings
ABE9006(NACHI)	MITSUBISHI	Bearings
ABE9006(KOYO)	MITSUBISHI	Bearings
ABE9028(NTN)	MITSUBISHI	Bearings
ABE9028(NSK)	MITSUBISHI	Bearings
ABE9027(NTN)	MITSUBISHI	Bearings
ZS0002	MITSUBISHI	Bearings
10-800-4W	MITSUBISHI	Bearings
ABE9006(SKF)	MITSUBISHI	Bearings

2310047N70

Nissan

89213881

Powermax

505.512.090.260

Psh

505.512.090.265

Psh

505.512.090.460

Psh

505.512.090.605

Psh

20104151BN

Real

20104151OE

Real

2030151.0

Sando

2030151.1

Sando

ALT2450

SIOM

ALT2450A

SIOM

STX101459

Stardax

STX101837

Stardax

440490

Valeo

22885R

Wai / Transpo

ALT12062

Woodauto

Usage

Brand	Model	Type	Year	Note
FIAT	Brava 1.2 16V	[182B2.000]	12.1998-10.2000	AC
FIAT	Bravo 1.2 16V	[182B2.000]	12.1998-10.2000	AC
FIAT	Doblo 1.2 8V	[223A5.000]	01.2001-	AC
FIAT	Marea 1.2 16V	[182B2.000]	10.1998-	AC
FIAT	Punto 1.2 16V	[176B9.000]	04.1997-09.1999	AC
FIAT	Punto 1.2 16V	[176B9.000]	04.1997-06.2000	AC
LANCIA	Y 1.2 16V	[176B9.000]	04.1997-09.2003	AC

Filters

Supplier

Manufacturer

Size a (mm)

Size b (mm)

Size c (mm)

Amp. (A)

B+

E.1 (mm)

E.2 (mm)

E.3 (mm)

E.4 (mm)

Pulley

L.1 (mm)

G

No./mount. holes

O.d.1 (mm)

O.d.2 (mm)

Power (Kw)

Voltage (v)

W.1

A4095

Reference number

Usage

Contact

Suport

Menu

Menu
