A9271S
Code: A9271S
Category: Alternators
Manufacturer: Prestolite
Supplier: As-pl
: 8LHP2170V
STANDARD LINE

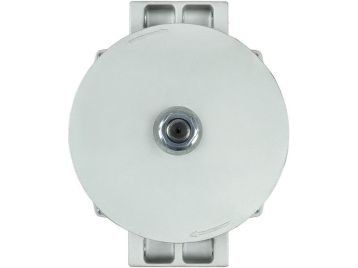

Brand new AS-PL Alternator
Size c: 108.00 mm
Amp.: 140 A
D.1: 10.50
D.2: 10.50
D.3: 12.50
D.4: 12.50
E.1: 80.00 mm
E.2: 80.00 mm
E.3: 80.00 mm
E.4: 80.00 mm
Pulley: n/a
Insulated return: Yes
L.1: 240.00 mm
Plug: PL_9104
Voltage: 12 v
Reference number
| Code | Manufacturer | ||||||||||||||||||||||
| UD15017A | As-pl | ||||||||||||||||||||||
| 10459320 | DELCO | ||||||||||||||||||||||
| |||||||||||||||||||||||
| 10459340 | DELCO | ||||||||||||||||||||||
| 19020387 | DELCO | ||||||||||||||||||||||
| |||||||||||||||||||||||
| 19020388 | DELCO | ||||||||||||||||||||||
| |||||||||||||||||||||||
| A-9384 | Dixie | ||||||||||||||||||||||
| 554368RIP | Kuhner | ||||||||||||||||||||||
| 110-555P | Prestolite | ||||||||||||||||||||||
| |||||||||||||||||||||||
| 8LHP2170V | Prestolite | ||||||||||||||||||||||
| |||||||||||||||||||||||
| AVI143P2003 | Prestolite | ||||||||||||||||||||||
| MDP2934 | Prestolite | ||||||||||||||||||||||
| 90-05-9254 | Wilson | ||||||||||||||||||||||
| 90-05-9254N | Wilson | ||||||||||||||||||||||
Usage
| Brand | Model | Type | Year | Note |
| FORD | F650 5.9 | [ISB] | 01.2004-12.2007 | |
| FORD | F650 6.0 | [365] | 01.2003-12.2008 | |
| FORD | F650 6.7 | [ISB] | 01.2007-12.2010 | |
| FORD | F650 7.2 | [C7] | 01.2004-12.2010 | |
| FORD | F650 7.3 | [444] | 01.2000-12.2003 | |
| FORD | F750 5.9 | [ISB] | 01.2004-12.2007 | |
| FORD | F750 6.0 | [365] | 01.2003-12.2008 | |
| FORD | F750 6.7 | [ISB] | 01.2007-12.2010 | |
| FORD | F750 7.2 | [C7] | 01.2004-12.2010 | |
| FORD | F750 7.3 | [444] | 01.2000-12.2003 | |
| FREIGHTLINER | Argosy 12.0 | [C12] | 01.2000-12.2003 | |
| FREIGHTLINER | Argosy 14.6 | [3406] | 01.2000-12.2003 | |
| FREIGHTLINER | Argosy 14.6 | [C15] | 01.2000-12.2003 | |
| FREIGHTLINER | Argosy 15.8 | [C16] | 01.2000-12.2003 | |
| FREIGHTLINER | C112 | 01.2000-12.2003 | ||
| FREIGHTLINER | C112 | [3176] | 01.2000-12.2000 | |
| FREIGHTLINER | C112 | [C10] | 01.2000-12.2003 | |
| FREIGHTLINER | C112 | [C15] | 01.2001-12.2007 | |
| FREIGHTLINER | C112 | [ISX] | 01.2000-12.2003 | |
| FREIGHTLINER | C112 | [ISX] | 01.2001-12.2003 | |
| FREIGHTLINER | C112 | [M11] | 01.2000-12.2003 | |
| FREIGHTLINER | C112 | [N14] | 01.2000-12.2003 | |
| FREIGHTLINER | C112 10.8 | [ISM] | 01.2000-12.2003 | |
| FREIGHTLINER | C112 10.8 | [ISM] | 01.2001-12.2004 | |
| FREIGHTLINER | C120 | [C15] | 01.2001-12.2007 | |
| FREIGHTLINER | C120 | [ISX] | 01.2001-12.2003 | |
| FREIGHTLINER | C120 10.8 | [ISM] | 01.2001-12.2004 | |
| FREIGHTLINER | Century Class | 01.2000-12.2003 | ||
| FREIGHTLINER | Century Class | 01.2001-12.2003 | ||
| FREIGHTLINER | Century Class | [C15] | 01.2004-12.2007 | |
| FREIGHTLINER | Century Class 10.3 | [3176] | 01.2000-12.2000 | |
| FREIGHTLINER | Century Class 10.3 | [C10] | 01.2000-12.2003 | |
| FREIGHTLINER | Century Class 10.8 | [ISM] | 01.2000-12.2003 | |
| FREIGHTLINER | Century Class 10.8 | [ISM] | 01.2001-12.2004 | |
| FREIGHTLINER | Century Class 10.8 | [M11] | 01.2000-12.2003 | |
| FREIGHTLINER | Century Class 14.0 | [N14] | 01.2000-12.2003 | |
| FREIGHTLINER | Century Class 14.6 | [C15] | 01.2001-12.2003 | |
| FREIGHTLINER | Century Class 15.0 | [ISX] | 01.2000-12.2003 | |
| FREIGHTLINER | Century Class 15.0 | [ISX] | 01.2001-12.2003 | |
| FREIGHTLINER | Classic | [ISX] | 01.2003- | |
| FREIGHTLINER | Classic 10.8 | [ISM] | 01.2004- | |
| FREIGHTLINER | Classic 14.6 | [C15] | 01.2003- | |
| FREIGHTLINER | Classic 15.2 | [C15] | 01.2009- | |
| FREIGHTLINER | Classic 15.8 | [C16] | 01.2000-12.2003 | |
| FREIGHTLINER | Classic XL | [ISX] | 01.2001-12.2003 | |
| FREIGHTLINER | Classic XL 12.5 | [C13] | 01.2004-12.2007 | |
| FREIGHTLINER | Classic XL 14.6 | [C15] | 01.2001-12.2003 | |
| FREIGHTLINER | Classic XL 15.2 | [C15] | 01.2004-12.2009 | |
| FREIGHTLINER | Classic XL 15.8 | [C16] | 01.2000-12.2003 | |
| FREIGHTLINER | Classic XL 15.8 | [ISM] | 01.2001-12.2004 | |
| FREIGHTLINER | Columbia | [ISX] | 01.2001-12.2003 | |
| FREIGHTLINER | Columbia 10.8 | [ISM] | 01.2001-12.2004 | |
| FREIGHTLINER | Columbia 15.2 | [C15] | 01.2001-12.2003 | |
| FREIGHTLINER | Columbia 15.2 | [C15] | 01.2004-12.2009 | |
| FREIGHTLINER | Condor | [ISL] | 01.2001-12.2005 | |
| FREIGHTLINER | Condor | [ISX] | 01.2001-12.2005 | |
| FREIGHTLINER | Condor 10.8 | [ISM] | 01.2001-12.2005 | |
| FREIGHTLINER | Coronado | [C15] | 01.2003-12.2007 | |
| FREIGHTLINER | FC80 5.9 | [ISB] | 01.2000-12.2003 | |
| FREIGHTLINER | FC80 8.3 | [ISC] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 112 | 01.2000-12.2003 | ||
| FREIGHTLINER | FL 112 | [555] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 112 | [6V-92] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 112 | [855/BC] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 112 | [8V-92] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 112 | [NTA/NTC] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 112 | [V-903] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 112 10.5 | [3306] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 112 10.8 | [ISM] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 112 18.0 | [3408] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 120 | 01.2000-12.2003 | ||
| FREIGHTLINER | FL 120 | [555] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 120 | [6V-92] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 120 | [855/BC] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 120 | [8V-92] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 120 | [NTA/NTC] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 120 | [V-903] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 120 10.5 | [3306] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 120 10.8 | [ISM] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 120 18.0 | [3408] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 50 7.2 | [3126] | 01.2000-12.2003 | |
| FREIGHTLINER | FL 90 | 01.2000-12.2003 | ||
| FREIGHTLINER | FL 90 | [OM366] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 112 | 01.2000-12.2003 | ||
| FREIGHTLINER | FLC 112 | [555] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 112 | [6V-92] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 112 | [855/BC] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 112 | [8V-92] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 112 | [NTA/NTC] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 112 | [V-903] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 112 10.5 | [3306] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 112 10.8 | [ISM] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 112 18.0 | [3408] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 120 | 01.2000-12.2003 | ||
| FREIGHTLINER | FLC 120 | [555] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 120 | [6V-92] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 120 | [855/BC] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 120 | [8V-92] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 120 | [NTA/NTC] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 120 | [V-903] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 120 10.5 | [3306] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 120 10.8 | [ISM] | 01.2000-12.2003 | |
| FREIGHTLINER | FLC 120 18.0 | [3408] | 01.2000-12.2003 | |
| FREIGHTLINER | FLD 112 | [C15] | 01.2001-12.2007 | |
| FREIGHTLINER | FLD 112 10.8 | [ISM] | 01.2001-12.2003 | |
| FREIGHTLINER | FLD 112 12.5 | [C13] | 01.2003-12.2005 | |
| FREIGHTLINER | FLD 120 12.5 | [C13] | 01.2003-12.2005 | |
| FREIGHTLINER | FLD 121 | [C15] | 01.2001-12.2007 | |
| FREIGHTLINER | FLD 122 10.8 | [ISM] | 01.2001-12.2003 | |
| FREIGHTLINER | M2 | [C13] | 01.2003-12.2007 | |
| FREIGHTLINER | M2 | [C15] | 01.2003-12.2007 | |
| FREIGHTLINER | M2 | [MBE4000] | 01.2002-12.2003 | |
| FREIGHTLINER | M2 | [MBE4000] | 01.2003-12.2007 | |
| FREIGHTLINER | M2 100 | [C13] | 01.2003-12.2010 | |
| FREIGHTLINER | M2 106 | [C13] | 01.2003-12.2010 | |
| FREIGHTLINER | M2 112 | [C13] | 01.2003-12.2010 | |
| FREIGHTLINER | M2 112 | [MBE4000] | 01.2003-12.2003 | |
| FREIGHTLINER | M2 112 | [MBE4000] | 01.2003-12.2007 | |
| International | 1400 | 01.2000-12.2007 | ||
| International | 1600 | 01.2000-12.2007 | ||
| International | 1700 | 01.2000-12.2007 | ||
| International | 1800 | 01.2000-12.2007 | ||
| International | 1900 | 01.2000-12.2007 | ||
| International | 2000 | 01.2000-12.2007 | ||
| International | 3000 | 01.2000-12.2007 | ||
| International | 4000 | 01.2000-12.2007 | ||
| International | 4000 | [VT-365] | 01.2003-12.2007 | |
| International | 4000 7.6 | [DT-466] | 01.2003-12.2007 | |
| International | 4900 | [VT-365] | 01.2003-12.2007 | |
| International | 4900 7.6 | [DT-466] | 01.2003-12.2007 | |
| International | 5000 | 01.2000-12.2007 | ||
| International | 5000 | [C15] | 01.2000-12.2007 | |
| International | 5000 | [ISX] | 01.2000-12.2007 | |
| International | 5000 10.8 | [ISM] | 01.2000-12.2007 | |
| International | 5000 12.5 | [C13] | 01.2003-12.2007 | |
| International | 5900 | [C15] | 01.2000-12.2007 | |
| International | 5900 | [ISX] | 01.2000-12.2007 | |
| International | 5900 10.8 | [ISM] | 01.2000-12.2007 | |
| International | 5900 12.5 | [C13] | 01.2003-12.2007 | |
| International | 7000 | 01.2000-12.2007 | ||
| International | 7100 | [C11] | 01.2005-12.2007 | |
| International | 7100 | [ISX] | 01.2003-12.2007 | |
| International | 7100 10.8 | [ISM] | 01.2003-12.2007 | |
| International | 7100 12.5 | [C13] | 01.2005-12.2007 | |
| International | 7100 7.6 | [DT-466] | 01.2003-12.2007 | |
| International | 7100 8.7 | [C15] | 01.2005-12.2007 | |
| International | 7100 8.7 | [DT-530] | 01.2003-12.2007 | |
| International | 7100 9.3 | [DT-570] | 01.2003-12.2007 | |
| International | 7700 | [C11] | 01.2005-12.2007 | |
| International | 7700 | [ISX] | 01.2003-12.2007 | |
| International | 7700 10.8 | [ISM] | 01.2003-12.2007 | |
| International | 7700 12.5 | [C13] | 01.2005-12.2007 | |
| International | 7700 7.6 | [DT-466] | 01.2003-12.2007 | |
| International | 7700 8.7 | [C15] | 01.2005-12.2007 | |
| International | 7700 8.7 | [DT-530] | 01.2003-12.2007 | |
| International | 7700 9.3 | [DT-570] | 01.2003-12.2007 | |
| International | 8000 | 01.2000-12.2007 | ||
| International | 8100 | [ISM] | 01.2001-12.2007 | |
| International | 8100 10.8 | [C13] | 01.2005-12.2007 | |
| International | 8100 12.0 | [DT-570] | 01.2003-12.2007 | |
| International | 8100 12.5 | [DT-466] | 01.2003-12.2007 | |
| International | 8100 7.6 | [C12] | 01.2003-12.2005 | |
| International | 8100 9.3 | [DT-530] | 01.2003-12.2007 | |
| International | 8600 | [ISM] | 01.2001-12.2007 | |
| International | 8600 12.0 | [DT-570] | 01.2003-12.2007 | |
| International | 8600 12.5 | [DT-466] | 01.2003-12.2007 | |
| International | 8600 7.6 | [C12] | 01.2003-12.2005 | |
| International | 8600 9.3 | [DT-530] | 01.2003-12.2007 | |
| International | 9000 | 01.2000-12.2007 | ||
| International | 9100 | [C11] | 01.2005-12.2007 | |
| International | 9100 | [C15] | 01.2000-12.2007 | |
| International | 9100 | [ISX] | 01.2001-12.2007 | |
| International | 9100 10.8 | [ISM] | 01.2001-12.2007 | |
| International | 9100 12.5 | [C13] | 01.2005-12.2007 | |
| International | 9100 15.8 | [C16] | 01.2000-12.2003 | |
| International | 9900 | [C11] | 01.2005-12.2007 | |
| International | 9900 | [C15] | 01.2000-12.2007 | |
| International | 9900 | [ISX] | 01.2001-12.2007 | |
| International | 9900 10.8 | [ISM] | 01.2001-12.2007 | |
| International | 9900 12.5 | [C13] | 01.2005-12.2007 | |
| International | 9900 15.8 | [C16] | 01.2000-12.2003 | |
| KENWORTH | C500 | [C11] | 01.2005-12.2007 | |
| KENWORTH | C500 | [C15] | 01.2000-12.2007 | |
| KENWORTH | C500 | [ISX] | 01.2000-12.2007 | |
| KENWORTH | C500 10.8 | [ISM] | 01.2001-12.2007 | |
| KENWORTH | C500 12.5 | [C13] | 01.2005-12.2007 | |
| KENWORTH | C500 15.8 | [C16] | 01.2002-12.2003 | |
| KENWORTH | T2000 | [C15] | 01.2001-12.2007 | |
| KENWORTH | T2000 | [ISX] | 01.2001-12.2007 | |
| KENWORTH | T2000 12.5 | [C13] | 01.2004-12.2007 | |
| KENWORTH | T600 | [C11] | 01.2005-12.2007 | |
| KENWORTH | T600 | [C15] | 01.2001-12.2007 | |
| KENWORTH | T600 | [T800] | 01.2001-12.2007 | |
| KENWORTH | T600 | [T800] | 01.2002-12.2003 | |
| KENWORTH | T600 | [T800] | 01.2004-12.2007 | |
| KENWORTH | T600 | [T800] | 01.2005-12.2007 | |
| KENWORTH | T600 12.5 | [C13] | 01.2004-12.2007 | |
| KENWORTH | T600 15.8 | [C16] | 01.2002-12.2003 | |
| KENWORTH | T800 | [C11] | 01.2005-12.2007 | |
| KENWORTH | T800 | [C15] | 01.2001-12.2007 | |
| KENWORTH | T800 12.5 | [C13] | 01.2004-12.2007 | |
| KENWORTH | T800 15.8 | [C16] | 01.2002-12.2003 | |
| KENWORTH | Various | 01.2000-12.2003 | ||
| KENWORTH | W900 | [C15] | 01.2001-12.2007 | |
| KENWORTH | W900 | [ISX] | 01.2001-12.2007 | |
| KENWORTH | W900 12.5 | [C13] | 01.2004-12.2007 | |
| KENWORTH | W900 15.8 | [C16] | 01.2000-12.2003 | |
| MACK | Various Models | 01.2000-12.2003 | ||
| Peterbilt | 357 | [C11] | 01.2005-12.2007 | |
| Peterbilt | 357 | [C15] | 01.2001-12.2007 | |
| Peterbilt | 357 | [ISX] | 01.2001-12.2007 | |
| Peterbilt | 357 10.8 | [ISM] | 01.2001-12.2007 | |
| Peterbilt | 357 12.5 | [C13] | 01.2004-12.2007 | |
| Peterbilt | 359 | [C15] | 01.2001-12.2007 | |
| Peterbilt | 378 | [C11] | 01.2005-12.2007 | |
| Peterbilt | 378 | [C15] | 01.2001-12.2007 | |
| Peterbilt | 378 | [ISX] | 01.2001-12.2007 | |
| Peterbilt | 378 10.8 | [ISM] | 01.2001-12.2007 | |
| Peterbilt | 378 12.5 | [C13] | 01.2004-12.2007 | |
| Peterbilt | 379 | [C15] | 01.2001-12.2007 | |
| Peterbilt | 379 | [ISX] | 01.2001-12.2007 | |
| Peterbilt | 379 10.8 | [ISM] | 01.2001-12.2007 | |
| Peterbilt | 379 12.5 | [C13] | 01.2004-12.2007 | |
| Peterbilt | 379 15.8 | [C16] | 01.2000-12.2003 | |
| Peterbilt | 385 | [C11] | 01.2005-12.2007 | |
| Peterbilt | 385 | [C15] | 01.2001-12.2007 | |
| Peterbilt | 385 10.8 | [ISM] | 01.2001-12.2007 | |
| Peterbilt | 385 12.5 | [C13] | 01.2004-12.2007 | |
| Peterbilt | 386 | [C15] | 01.2006-12.2007 | |
| Peterbilt | 386 | [ISX] | 01.2006-12.2007 | |
| Peterbilt | 386 12.5 | [C13] | 01.2006-12.2007 | |
| Peterbilt | 387 | [C15] | 01.2000-12.2007 | |
| Peterbilt | 387 | [ISX] | 01.2000-12.2007 | |
| Peterbilt | 387 10.8 | [ISM] | 01.2000-12.2007 | |
| Peterbilt | 387 12.5 | [C13] | 01.2004-12.2007 | |
| STERLING | 7500 | [C11] | 01.2005-12.2007 | |
| STERLING | 7500 | [C15] | 01.2001-12.2007 | |
| STERLING | 7500 | [C9] | 01.2001-12.2007 | |
| STERLING | 7500 12.5 | [C13] | 01.2005-12.2007 | |
| STERLING | 7500 15.8 | [C16] | 01.2003-12.2003 | |
| STERLING | 8000 | [C11] | 01.2005-12.2007 | |
| STERLING | 8000 | [C15] | 01.2001-12.2007 | |
| STERLING | 8000 | [C9] | 01.2001-12.2007 | |
| STERLING | 8000 12.5 | [C13] | 01.2005-12.2007 | |
| STERLING | 8000 15.8 | [C16] | 01.2003-12.2003 | |
| STERLING | 8500 | [C11] | 01.2005-12.2007 | |
| STERLING | 8500 | [C15] | 01.2001-12.2007 | |
| STERLING | 8500 | [C9] | 01.2001-12.2007 | |
| STERLING | 8500 12.5 | [C13] | 01.2005-12.2007 | |
| STERLING | 8500 15.8 | [C16] | 01.2003-12.2003 | |
| STERLING | 9500 | [C11] | 01.2005-12.2007 | |
| STERLING | 9500 | [C15] | 01.2001-12.2007 | |
| STERLING | 9500 | [C9] | 01.2001-12.2007 | |
| STERLING | 9500 12.5 | [C13] | 01.2005-12.2007 | |
| STERLING | 9500 15.8 | [C16] | 01.2003-12.2003 | |
| STERLING | A9500 | [C11] | 01.2004-12.2007 | |
| STERLING | A9500 | [C15] | 01.2001-12.2007 | |
| STERLING | A9500 | [ISX] | 01.2001-12.2003 | |
| STERLING | A9500 10.8 | [ISM] | 01.2001-12.2003 | |
| STERLING | A9500 12.5 | [C13] | 01.2004-12.2007 | |
| STERLING | A9500 15.8 | [C16] | 01.2001-12.2003 | |
| STERLING | AT9500 | [C11] | 01.2004-12.2007 | |
| STERLING | AT9500 | [C15] | 01.2001-12.2007 | |
| STERLING | AT9500 | [ISX] | 01.2001-12.2003 | |
| STERLING | AT9500 10.8 | [ISM] | 01.2001-12.2003 | |
| STERLING | AT9500 12.5 | [C13] | 01.2004-12.2007 | |
| STERLING | AT9500 15.8 | [C16] | 01.2001-12.2003 | |
| STERLING | Condor | [ISL] | 01.2001-12.2005 | |
| STERLING | Condor | [ISX] | 01.2001-12.2005 | |
| STERLING | Condor 10.8 | [ISM] | 01.2001-12.2005 | |
| VOLVO | Various Models | |||
| WESTERN STAR | Various Models |
