AR1003
Code: AR1003
Category: Alternator rotors
Manufacturer: DELCO
Supplier: As-pl
STANDARD LINE

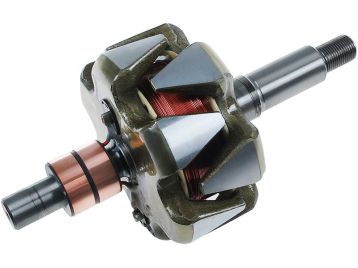

Brand new AS-PL Alternator rotor
D.: UNF 5/8" - 18G mm
Amp.: 70 A
Slip ring: ASL9035
L.1: 209.00 mm
L.2: 83.60 mm
O.d.1: 108.00 mm
O.d.2: 22.20 mm
Poles: 12
Bearing: No
Thread: Prawy
Voltage: 24 v
Reference number
| Code | Manufacturer | ||||
| 232823 | Cargo | ||||
| CRO60600AS | Casco | ||||
| 10477863 | DELCO | ||||
| |||||
| ROT2642 | Electrolog | ||||
| SRO60600 | Sando | ||||
| 28-141 | Wai / Transpo | ||||
| WRT67062 | Woodauto | ||||
Usage
| Brand | Model | Type | Year | Note |
| As-pl | A1018 | alternators | ||
| DELCO | 19010108 | alternators | ||
| DELCO | 19010111 | alternators | ||
| DELCO | 19010182 | alternators | ||
| DELCO | 19010185 | alternators | ||
| DELCO | 19010193 | alternators | ||
| DELCO | 19010195 | alternators | ||
| DELCO | 19010200 | alternators | ||
| DELCO | 19010205 | alternators | ||
| DELCO | 19020382 | alternators | ||
| DELCO | 19020391 | alternators |
