ARC4016


Code: ARC4016

Category: Alternator rectifiers

Manufacturer: Magneti Marelli

Supplier: As-pl

STANDARD LINE

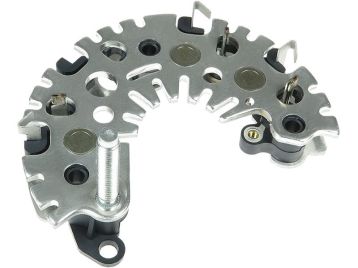

Brand new AS-PL Alternator rectifier



B+h.: 40.60 mm

B+d.: M8X1.25

Diode amp.: 50

Diodes: 6

Mounting dist.: 85 mm

I.d.1: 32.00 mm

O.d.1: 121.40 mm



Reference number

CodeManufacturer
138377Cargo
CRC30104ASCasco
CQ1080064Cq
RCT9006Electrolog
215797Era
215803Era
139075Huco
063624201010Lucas
085552105010Lucas
UBB814Lucas
000063624201Magneti Marelli
000063624202Magneti Marelli
063624202010Magneti Marelli
63624201Magneti Marelli
63624201010Magneti Marelli
63624202Magneti Marelli
63625801Magneti Marelli
RDD42Magneti Marelli
RDD42AMagneti Marelli
RDD42BMagneti Marelli
RI-23HMobiletron
1110920Powermax
81110920Powermax
21104401BNReal
SRC30104Sando
IXR642Wai / Transpo
IXR7595Wai / Transpo
RTF49560Woodauto


Usage

BrandModelTypeYearNote
As-plA4042alternators
As-plA4042(P)alternators
As-plA4096alternators
As-plA4096(P)alternators
DENSO1012100160alternators
DENSO1012100161alternators
DENSO1012100990alternators
DENSO1022118260alternators
DENSO1022118270alternators
DENSO1022118640alternators
DENSO1022118641alternators
DENSO1022118650alternators
DENSO1022118651alternators
LUCAS063321310010alternators
LUCAS063321315010alternators
LUCAS063321316010alternators
LUCAS063321328010alternators
LUCAS063321331010alternators
LUCAS063321332010alternators
LUCAS063321340010alternators
LUCAS063321349010alternators
LUCAS063321355010alternators
LUCAS063321390010alternators
LUCAS063321391010alternators
LUCAS063321395010alternators
LUCAS063321398010alternators
LUCAS063321401010alternators
LUCAS063321402010alternators
LUCAS063321418010alternators
LUCAS063321419010alternators
LUCAS063321423010alternators
LUCAS063321426010alternators
LUCAS063321436010alternators
LUCAS063321453010alternators
LUCAS063321461010alternators
LUCAS063321485010alternators
LUCAS063321497010alternators
LUCAS063321804010alternators
LUCAS063377490010alternators
LUCAS063377491010alternators
LUCAS54022669alternators
MAGNETI MARELLI063321940010alternators
MAGNETI MARELLI063377005010alternators
MAGNETI MARELLI63320277alternators
MAGNETI MARELLI63320333alternators
MAGNETI MARELLI63321237alternators
MAGNETI MARELLI63321246alternators
MAGNETI MARELLI63321310alternators
MAGNETI MARELLI63321315alternators
MAGNETI MARELLI63321316alternators
MAGNETI MARELLI63321328alternators
MAGNETI MARELLI63321331alternators
MAGNETI MARELLI63321332alternators
MAGNETI MARELLI63321335alternators
MAGNETI MARELLI63321340alternators
MAGNETI MARELLI63321349alternators
MAGNETI MARELLI63321355alternators
MAGNETI MARELLI63321389alternators
MAGNETI MARELLI63321390alternators
MAGNETI MARELLI63321391alternators
MAGNETI MARELLI63321395alternators
MAGNETI MARELLI63321398alternators
MAGNETI MARELLI63321401alternators
MAGNETI MARELLI63321402alternators
MAGNETI MARELLI63321418alternators
MAGNETI MARELLI63321419alternators
MAGNETI MARELLI63321423alternators
MAGNETI MARELLI63321426alternators
MAGNETI MARELLI63321436alternators
MAGNETI MARELLI63321453alternators
MAGNETI MARELLI63321461alternators
MAGNETI MARELLI63321485alternators
MAGNETI MARELLI63321489alternators
MAGNETI MARELLI63321491alternators
MAGNETI MARELLI63321497alternators
MAGNETI MARELLI63321501alternators
MAGNETI MARELLI63321506alternators
MAGNETI MARELLI63321507alternators
MAGNETI MARELLI63321792alternators
MAGNETI MARELLI63321800alternators
MAGNETI MARELLI63321801alternators
MAGNETI MARELLI63321802alternators
MAGNETI MARELLI63321803alternators
MAGNETI MARELLI63321804alternators
MAGNETI MARELLI63321805alternators
MAGNETI MARELLI63321806alternators
MAGNETI MARELLI63321814alternators
MAGNETI MARELLI63321815alternators
MAGNETI MARELLI63321816alternators
MAGNETI MARELLI63321827alternators
MAGNETI MARELLI63321838alternators
MAGNETI MARELLI63321858alternators
MAGNETI MARELLI63321940alternators
MAGNETI MARELLI63377004alternators
MAGNETI MARELLI63377005alternators
MAGNETI MARELLI63377490alternators
MAGNETI MARELLI63377492alternators
