AS0124S


Code: AS0124S

Category: Alternator stators

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

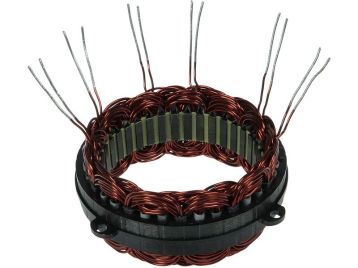

Brand new AS-PL Alternator stator



Amp.: 75 A

H.1: 51.00 mm

H.2: 21.50 mm

I.d.1: 94.00 mm

Leads: 6

O.d.1: 125.00 mm

O.d.2: 115.50 mm

Voltage: 12 v



Reference number

CodeManufacturer
UD47835ASAs-pl
1125045509Bosch
1125045623Bosch
230123Cargo
CSR10083ASCasco
31121-P1K-E03Honda
31121-P1K-E04Honda
AFB8059Krauf
20801380BNReal
SSR10083.0Sando
BOS1125045509Woodauto
WOOWST87768Woodauto


Usage

BrandModelTypeYearNote
As-plA0304alternators
BOSCH0123315007alternators
BOSCH0123315020alternators
