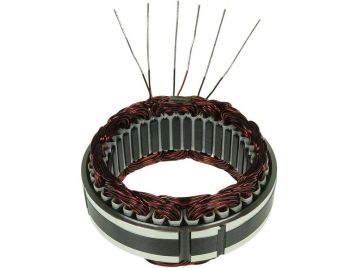

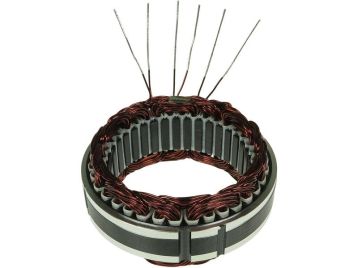

AS4001
Code: AS4001
Category: Alternator stators
Manufacturer: Magneti Marelli
Supplier: As-pl
STANDARD LINE
Brand new AS-PL Alternator stator
Amp.: 65 A
H.1: 52.70 mm
H.2: 13.20 mm
H.3: 26.10 mm
I.d.1: 89.80 mm
Leads: 3
O.d.1: 125.10 mm
O.d.2: 124.30 mm
O.d.3: 109.10 mm
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD52187AS | As-pl | |
| 131977 | Cargo | |
| CSR30009AS | Casco | |
| CQ1120033 | Cq | |
| STA4070 | Electrolog | |
| 212088 | Era | |
| 9960132 | Fiat | |
| 083602761010 | Lucas | |
| 74986521 | Magneti Marelli | |
| 83602761 | Magneti Marelli | |
| 83624641 | Magneti Marelli | |
| 86307091 | Magneti Marelli | |
| S/209 | Orme | |
| 1112654 | Powermax | |
| SSR30009 | Sando | |
| SNLS-607 | Unipoint | |
| WST8718 | Woodauto |
Usage
| Brand | Model | Type | Year | Note |
| As-pl | A4018 | alternators | ||
| As-pl | A4039 | alternators | ||
| As-pl | A4044 | alternators | ||
| As-pl | A4047 | alternators | ||
| As-pl | A4065 | alternators | ||
| As-pl | A4114 | alternators | ||
| EFEL | 13830 | alternators | ||
| EFEL | 13850 | alternators | ||
| LUCAS | 063305801010 | alternators | ||
| LUCAS | 063305802010 | alternators | ||
| LUCAS | 063305821010 | alternators | ||
| LUCAS | 063305822010 | alternators | ||
| LUCAS | 063305832010 | alternators | ||
| LUCAS | 063305842010 | alternators | ||
| LUCAS | 063305862010 | alternators | ||
| LUCAS | 063307408010 | alternators | ||
| LUCAS | 063307428010 | alternators | ||
| LUCAS | 063307602010 | alternators | ||
| LUCAS | 063307604010 | alternators | ||
| LUCAS | 063307622010 | alternators | ||
| LUCAS | 063307624010 | alternators | ||
| LUCAS | 063307634010 | alternators | ||
| LUCAS | 063307801010 | alternators | ||
| LUCAS | 063307802010 | alternators | ||
| LUCAS | 063307804010 | alternators | ||
| LUCAS | 063307805010 | alternators | ||
| LUCAS | 063307821010 | alternators | ||
| LUCAS | 063307822010 | alternators | ||
| LUCAS | 063307824010 | alternators | ||
| LUCAS | 063307832010 | alternators | ||
| LUCAS | 063307841010 | alternators | ||
| LUCAS | 063307842010 | alternators | ||
| LUCAS | 063307851010 | alternators | ||
| LUCAS | 063307862010 | alternators | ||
| LUCAS | 063307872010 | alternators | ||
| LUCAS | 063320013010 | alternators | ||
| LUCAS | 063320015010 | alternators | ||
| LUCAS | 063320016010 | alternators | ||
| LUCAS | 063320017010 | alternators | ||
| LUCAS | 063320018010 | alternators | ||
| LUCAS | 063320020010 | alternators | ||
| LUCAS | 063320032010 | alternators | ||
| LUCAS | 063320035010 | alternators | ||
| LUCAS | 063320037010 | alternators | ||
| LUCAS | 063320040010 | alternators | ||
| LUCAS | 063320042010 | alternators | ||
| LUCAS | 063320044010 | alternators | ||
| LUCAS | 063320045010 | alternators | ||
| LUCAS | 063320046010 | alternators | ||
| LUCAS | 063320048010 | alternators | ||
| LUCAS | 063320051010 | alternators | ||
| LUCAS | 063320054010 | alternators | ||
| LUCAS | 063320055010 | alternators | ||
| LUCAS | 063320058010 | alternators | ||
| LUCAS | 063320063010 | alternators | ||
| LUCAS | 063320082010 | alternators | ||
| LUCAS | 063320083010 | alternators | ||
| LUCAS | 063320132010 | alternators | ||
| LUCAS | 063321017010 | alternators | ||
| LUCAS | 063321022010 | alternators | ||
| LUCAS | 063321023010 | alternators | ||
| LUCAS | 063321024010 | alternators | ||
| LUCAS | 063321025010 | alternators | ||
| LUCAS | 063321027010 | alternators | ||
| LUCAS | 063321033010 | alternators | ||
| LUCAS | 063321056010 | alternators | ||
| LUCAS | 063321062010 | alternators | ||
| LUCAS | 063321068010 | alternators | ||
| LUCAS | 063321070010 | alternators | ||
| LUCAS | 063321072010 | alternators | ||
| LUCAS | 063321073010 | alternators | ||
| LUCAS | 063321077010 | alternators | ||
| LUCAS | 063321082010 | alternators | ||
| LUCAS | 063321084010 | alternators | ||
| LUCAS | 063321086010 | alternators | ||
| LUCAS | 063321087010 | alternators | ||
| LUCAS | 063321088010 | alternators | ||
| LUCAS | 063321090010 | alternators | ||
| LUCAS | 063321091010 | alternators | ||
| LUCAS | 063321096010 | alternators | ||
| LUCAS | 063321098010 | alternators | ||
| LUCAS | 063321101010 | alternators | ||
| LUCAS | 063321105010 | alternators | ||
| LUCAS | 063321108010 | alternators | ||
| LUCAS | 063321111010 | alternators | ||
| LUCAS | 063321123010 | alternators | ||
| LUCAS | 063321149010 | alternators | ||
| LUCAS | 063321150010 | alternators | ||
| LUCAS | 063321151010 | alternators | ||
| LUCAS | 063321156010 | alternators | ||
| LUCAS | 063321157010 | alternators | ||
| LUCAS | 063321167010 | alternators | ||
| LUCAS | 063321173010 | alternators | ||
| LUCAS | 063321176010 | alternators | ||
| LUCAS | 063321199010 | alternators | ||
| MAGNETI MARELLI | 063320049010 | alternators | ||
| MAGNETI MARELLI | 063321021010 | alternators | ||
| MAGNETI MARELLI | 63221024 | alternators | ||
| MAGNETI MARELLI | 63305801 | alternators | ||
| MAGNETI MARELLI | 63305802 | alternators | ||
| MAGNETI MARELLI | 63305821 | alternators | ||
| MAGNETI MARELLI | 63305822 | alternators | ||
| MAGNETI MARELLI | 63305832 | alternators | ||
| MAGNETI MARELLI | 63305842 | alternators | ||
| MAGNETI MARELLI | 63305862 | alternators | ||
| MAGNETI MARELLI | 63307408 | alternators | ||
| MAGNETI MARELLI | 63307428 | alternators | ||
| MAGNETI MARELLI | 63307602 | alternators | ||
| MAGNETI MARELLI | 63307604 | alternators | ||
| MAGNETI MARELLI | 63307622 | alternators | ||
| MAGNETI MARELLI | 63307624 | alternators | ||
| MAGNETI MARELLI | 63307634 | alternators | ||
| MAGNETI MARELLI | 63307801 | alternators | ||
| MAGNETI MARELLI | 63307802 | alternators | ||
| MAGNETI MARELLI | 63307804 | alternators | ||
| MAGNETI MARELLI | 63307805 | alternators | ||
| MAGNETI MARELLI | 63307821 | alternators | ||
| MAGNETI MARELLI | 63307822 | alternators | ||
| MAGNETI MARELLI | 63307824 | alternators | ||
| MAGNETI MARELLI | 63307832 | alternators | ||
| MAGNETI MARELLI | 63307841 | alternators | ||
| MAGNETI MARELLI | 63307842 | alternators | ||
| MAGNETI MARELLI | 63307851 | alternators | ||
| MAGNETI MARELLI | 63307862 | alternators | ||
| MAGNETI MARELLI | 63307872 | alternators | ||
| MAGNETI MARELLI | 63320013 | alternators | ||
| MAGNETI MARELLI | 63320015 | alternators | ||
| MAGNETI MARELLI | 63320016 | alternators | ||
| MAGNETI MARELLI | 63320017 | alternators | ||
| MAGNETI MARELLI | 63320018 | alternators | ||
| MAGNETI MARELLI | 63320020 | alternators | ||
| MAGNETI MARELLI | 63320026 | alternators | ||
| MAGNETI MARELLI | 63320032 | alternators | ||
| MAGNETI MARELLI | 63320035 | alternators | ||
| MAGNETI MARELLI | 63320037 | alternators | ||
| MAGNETI MARELLI | 63320040 | alternators | ||
| MAGNETI MARELLI | 63320042 | alternators | ||
| MAGNETI MARELLI | 63320044 | alternators | ||
| MAGNETI MARELLI | 63320045 | alternators | ||
| MAGNETI MARELLI | 63320046 | alternators | ||
| MAGNETI MARELLI | 63320048 | alternators | ||
| MAGNETI MARELLI | 63320049 | alternators | ||
| MAGNETI MARELLI | 63320051 | alternators | ||
| MAGNETI MARELLI | 63320054 | alternators | ||
| MAGNETI MARELLI | 63320055 | alternators | ||
| MAGNETI MARELLI | 63320058 | alternators | ||
| MAGNETI MARELLI | 63320063 | alternators | ||
| MAGNETI MARELLI | 63320082 | alternators | ||
| MAGNETI MARELLI | 63320083 | alternators | ||
| MAGNETI MARELLI | 63320094 | alternators | ||
| MAGNETI MARELLI | 63320105 | alternators | ||
| MAGNETI MARELLI | 63320119 | alternators | ||
| MAGNETI MARELLI | 63320121 | alternators | ||
| MAGNETI MARELLI | 63320122 | alternators | ||
| MAGNETI MARELLI | 63320124 | alternators | ||
| MAGNETI MARELLI | 63320126 | alternators | ||
| MAGNETI MARELLI | 63320129 | alternators | ||
| MAGNETI MARELLI | 63320132 | alternators | ||
| MAGNETI MARELLI | 63320137 | alternators | ||
| MAGNETI MARELLI | 63320140 | alternators | ||
| MAGNETI MARELLI | 63321017 | alternators | ||
| MAGNETI MARELLI | 63321019 | alternators | ||
| MAGNETI MARELLI | 63321020 | alternators | ||
| MAGNETI MARELLI | 63321021 | alternators | ||
| MAGNETI MARELLI | 63321022 | alternators | ||
| MAGNETI MARELLI | 63321023 | alternators | ||
| MAGNETI MARELLI | 63321024 | alternators | ||
| MAGNETI MARELLI | 63321025 | alternators | ||
| MAGNETI MARELLI | 63321027 | alternators | ||
| MAGNETI MARELLI | 63321028 | alternators | ||
| MAGNETI MARELLI | 63321031 | alternators | ||
| MAGNETI MARELLI | 63321033 | alternators | ||
| MAGNETI MARELLI | 63321056 | alternators | ||
| MAGNETI MARELLI | 63321062 | alternators | ||
| MAGNETI MARELLI | 63321068 | alternators | ||
| MAGNETI MARELLI | 63321069 | alternators | ||
| MAGNETI MARELLI | 63321070 | alternators | ||
| MAGNETI MARELLI | 63321072 | alternators | ||
| MAGNETI MARELLI | 63321073 | alternators | ||
| MAGNETI MARELLI | 63321077 | alternators | ||
| MAGNETI MARELLI | 63321082 | alternators | ||
| MAGNETI MARELLI | 63321083 | alternators | ||
| MAGNETI MARELLI | 63321084 | alternators | ||
| MAGNETI MARELLI | 63321086 | alternators | ||
| MAGNETI MARELLI | 63321087 | alternators | ||
| MAGNETI MARELLI | 63321088 | alternators | ||
| MAGNETI MARELLI | 63321090 | alternators | ||
| MAGNETI MARELLI | 63321091 | alternators | ||
| MAGNETI MARELLI | 63321096 | alternators | ||
| MAGNETI MARELLI | 63321098 | alternators | ||
| MAGNETI MARELLI | 63321099 | alternators | ||
| MAGNETI MARELLI | 63321101 | alternators | ||
| MAGNETI MARELLI | 63321105 | alternators | ||
| MAGNETI MARELLI | 63321106 | alternators | ||
| MAGNETI MARELLI | 63321108 | alternators | ||
| MAGNETI MARELLI | 63321111 | alternators | ||
| MAGNETI MARELLI | 63321114 | alternators | ||
| MAGNETI MARELLI | 63321116 | alternators | ||
| MAGNETI MARELLI | 63321117 | alternators | ||
| MAGNETI MARELLI | 63321123 | alternators | ||
| MAGNETI MARELLI | 63321129 | alternators | ||
| MAGNETI MARELLI | 63321136 | alternators | ||
| MAGNETI MARELLI | 63321146 | alternators | ||
| MAGNETI MARELLI | 63321149 | alternators | ||
| MAGNETI MARELLI | 63321150 | alternators | ||
| MAGNETI MARELLI | 63321151 | alternators | ||
| MAGNETI MARELLI | 63321152 | alternators | ||
| MAGNETI MARELLI | 63321153 | alternators | ||
| MAGNETI MARELLI | 63321156 | alternators | ||
| MAGNETI MARELLI | 63321157 | alternators | ||
| MAGNETI MARELLI | 63321167 | alternators | ||
| MAGNETI MARELLI | 63321170 | alternators | ||
| MAGNETI MARELLI | 63321173 | alternators | ||
| MAGNETI MARELLI | 63321174 | alternators | ||
| MAGNETI MARELLI | 63321199 | alternators | ||
| MAGNETI MARELLI | 63321424 | alternators | ||
| MAGNETI MARELLI | 63321458 | alternators | ||
| MAGNETI MARELLI | 63321470 | alternators | ||
| MAGNETI MARELLI | 63321488 | alternators | ||
| MAGNETI MARELLI | 63321492 | alternators | ||
| MAGNETI MARELLI | 63321502 | alternators | ||
| MAGNETI MARELLI | 63321503 | alternators | ||
| MAGNETI MARELLI | 63321510 | alternators | ||
| MAKO | 063320049000 | alternators | ||
| MAKO | 063321068020 | alternators | ||
| MAKO | 063321070000 | alternators | ||
| MAKO | 063321150000 | alternators | ||
| MAKO | 063321151000 | alternators | ||
| MAKO | 063321156000 | alternators | ||
| MAKO | 063321157000 | alternators | ||
| MAKO | 063321173000 | alternators | ||
| MAKO | 063396551000 | alternators | ||
| MAKO | 063396554000 | alternators | ||
| MAKO | 063396555000 | alternators | ||
| MAKO | 063396556000 | alternators | ||
| MAKO | 063396558000 | alternators | ||
| MAKO | 063396562000 | alternators | ||
| MAKO | 063396563000 | alternators | ||
| MAKO | 063396564000 | alternators | ||
| VOLVO | 8111569 | alternators |
