  5. AS4009



AS4009


Code: AS4009

Category: Alternator stators

Manufacturer: Magneti Marelli

Supplier: As-pl

STANDARD LINE

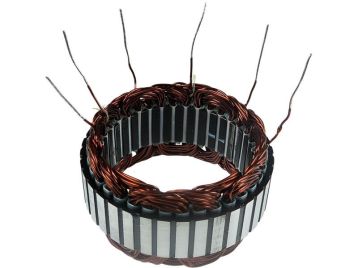

Brand new AS-PL Alternator stator



Amp.: 100 A

H.1: 69.20 mm

H.2: 33.20 mm

I.d.1: 99.70 mm

Leads: 6

O.d.1: 130.00 mm

O.d.3: 119.50 mm

Voltage: 12 v



Reference number

CodeManufacturer
UD01178ASAs-pl
232785Cargo
CSR30023ASCasco
STA9020Electrolog
9947384Fiat
AFE2785Krauf
CQ1120162Lauber
83612251Magneti Marelli
20804320BNReal
SSR30023.0Sando


Usage

BrandModelTypeYearNote
As-plA4032alternators
As-plA4054alternators
As-plA4101alternators
FORD95VB10300BCalternators
LUCAS54022669alternators
MAGNETI MARELLI63320289alternators
MAGNETI MARELLI63320317alternators
MAGNETI MARELLI63321237alternators
MAGNETI MARELLI63321246alternators
MAGNETI MARELLI63321310alternators
MAGNETI MARELLI63321315alternators
MAGNETI MARELLI63321321alternators
MAGNETI MARELLI63321331alternators
MAGNETI MARELLI63321332alternators
MAGNETI MARELLI63321333alternators
MAGNETI MARELLI63321345alternators
MAGNETI MARELLI63321346alternators
MAGNETI MARELLI63321349alternators
MAGNETI MARELLI63321352alternators
MAGNETI MARELLI63321353alternators
MAGNETI MARELLI63321395alternators
MAGNETI MARELLI63321418alternators
MAGNETI MARELLI63321426alternators
MAGNETI MARELLI63321453alternators
MAGNETI MARELLI63321461alternators
MAGNETI MARELLI63321485alternators
MAGNETI MARELLI63321489alternators
MAGNETI MARELLI63321497alternators
MAGNETI MARELLI63321792alternators
MAGNETI MARELLI63321800alternators
MAGNETI MARELLI63321801alternators
MAGNETI MARELLI63321803alternators
MAGNETI MARELLI63321804alternators
MAGNETI MARELLI63321805alternators
MAGNETI MARELLI63321806alternators
MAGNETI MARELLI63340005alternators
MAGNETI MARELLI63341321alternators
MAGNETI MARELLI63341333alternators
MAGNETI MARELLI63341345alternators
MAGNETI MARELLI63341352alternators
MAGNETI MARELLI63341353alternators
MAGNETI MARELLI63341354alternators
