AS5036

Code: AS5036

---

Category: Alternator stators

---

Manufacturer: MITSUBISHI

---

Supplier: As-pl

---

STANDARD LINE

---

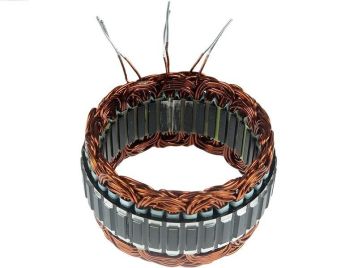

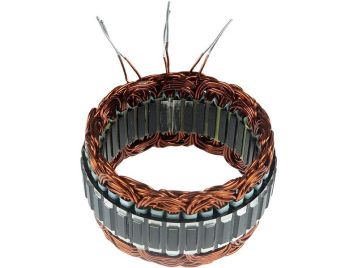

Brand new AS-PL Alternator stator

---

Amp.: 90 A

---

H.1: 64.50 mm

---

H.2: 20.00 mm

---

H.3: 28.10 mm

---

I.d.1: 95.00 mm

---

Leads: 6

---

O.d.1: 122.00 mm

---

O.d.2: 119.00 mm

---

O.d.3: 114.00 mm

---

Voltage: 12 v

---
