  1. Starters
    2. >
  2. M009TD1271(MITSUBISHI)

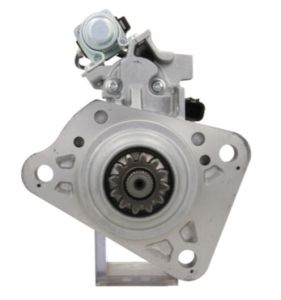

M009TD1271(MITSUBISHI)


Code: M009TD1271(MITSUBISHI)
Category: Starters
Manufacturer: MITSUBISHI
Supplier: MITSUBISHI

Size a: 92.00 mm
Size b: 47.00 mm
C.1: 13.50 mm
C.2: 13.50 mm
C.3: 13.50 mm
L.1: 318.00 mm
No./teeth: 12
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 129.00 mm
O.2: 88.00 mm
O.3: 144.00 mm
Power: 5.50 kW
Rotation: CW
Voltage: 24 v


Reference number

CodeManufacturer
STRF0053EFFE
15130127Aes
S5301S As-pl
UD15155S As-pl
0986025280Bosch
116087Cargo
CST35666Casco
CST35666ASCasco
CST35666ESCasco
CST35666GSCasco
CST35666OSCasco
CST35666RSCasco
19081922DELCO
DRS0986DELCO
DS2096DELCO
45-5284Elstock
107798Farcom
STM5571Krauf
255252Kuhner
255252MKuhner
336567Logistik
LRS04121Lucas
LRS4121Lucas
11.139.193MAHLE/ISKRA/LETRIKA
72502244MAHLE/ISKRA/LETRIKA
AZE4904MAHLE/ISKRA/LETRIKA
AZF4905MAHLE/ISKRA/LETRIKA
IS9491MAHLE/ISKRA/LETRIKA
MS940MAHLE/ISKRA/LETRIKA
51.26201-7238Man
51.26201-9238Man
51262017238Man
51262019238Man
M009T65571 MITSUBISHI
M9T65571 MITSUBISHI
M009T65571AMMITSUBISHI
M009TD1271MITSUBISHI
M009TD1271AMMITSUBISHI
M9T65571AMMITSUBISHI
M9TD1271MITSUBISHI
M9TD1271AMMITSUBISHI
551.541.123Psh
551.541.123.130Psh
551.541.123.370Psh
RNLM9T65571Rnl
130-90171Robert's
6035666Sando
30321NWai / Transpo
MITM9T65571Woodauto
MITM9TD1271Woodauto
STR71315Woodauto
WOOSTR71315Woodauto


Usage

BrandModelTypeYearNote
MANL 480 12.4[D2676LOH31]10.2015-
MANL 440 12.4[D2676LOH30]10.2015-
MANC 480 12.4[D2676LOH31]10.2015-
MANC 440 12.4[D2676LOH30]10.2015-
MAN440 12.4[D2676LOH30]10.2015-
MAN400 10.5[D2066LOH32]10.2015-
MAN37.400 10.5[D2066LF32]12.2004-
MAN37.400 10.5[D2066LF12]12.2004-
MAN37.400 10.5[D2066LF02]12.2004-
MAN37.390 10.5[D2066LF32]12.2004-
MAN37.390 10.5[D2066LF12]12.2004-
MAN37.390 10.5[D2066LF02]12.2004-
MAN32.400 10.5[D2066LF32]05.2004-
MAN32.400 10.5[D2066LF12]05.2004-
MAN32.400 10.5[D2066LF02]05.2004-
MAN32.390 10.5[D2066LF37]05.2004-
MAN32.390 10.5[D2066LF12]05.2004-
MAN32.390 10.5[D2066LF02]05.2004-
MAN28.480 12.4[D2676LF25]08.2008-
MAN28.480 12.4[D2676LF20]08.2008-
MAN28.480 12.4[D2676LF07]08.2008-
MAN28.480 12.4[D2676LF05]08.2008-
MAN28.480 12.4[D2676LF02]08.2008-
MAN28.440 10.5[D2066LF62]08.2008-
MAN28.440 10.5[D2066LF50]08.2008-
MAN28.440 10.5[D2066LF40]08.2008-
MAN28.440 10.5[D2066LF36]08.2008-
MAN28.400 10.5[D2066LF63]08.2008-
MAN28.400 10.5[D2066LF61]08.2008-
MAN28.400 10.5[D2066LF49]08.2008-
MAN28.400 10.5[D2066LF41]08.2008-
MAN28.400 10.5[D2066LF37]08.2008-
MAN28.360 10.5[D2066LF67]08.2008-
MAN28.360 10.5[D2066LF64]08.2008-
MAN28.360 10.5[D2066LF48]08.2008-
MAN28.360 10.5[D2066LF42]08.2008-
MAN28.360 10.5[D2066LF38]08.2008-
MAN28.320 10.5[D2066LF68]07.2008-
MAN28.320 10.5[D2066LF43]07.2008-
MAN28.320 10.5[D2066LF39]07.2008-
MAN26.540 12.4[D2676LF13]10.2007-
MAN26.540 12.4[D2676LF13]08.2006-
MAN26.540 12.4[D2676LF06]02.2009-
MAN26.540 12.4[D2676LF06]10.2007-
MAN26.480 12.4[D2676LF25]02.2009-
MAN26.480 12.4[D2676LF25]10.2007-
MAN26.480 12.4[D2676LF20]02.2009-
MAN26.480 12.4[D2676LF20]10.2007-
MAN26.480 12.4[D2676LF14]10.2007-
MAN26.480 12.4[D2676LF07]02.2009-
MAN26.480 12.4[D2676LF07]10.2007-
MAN26.480 12.4[D2676LF05]02.2009-
MAN26.480 12.4[D2676LF05]10.2007-
MAN26.480 12.4[D2676LF02]02.2009-
MAN26.480 12.4[D2676LF02]10.2007-
MAN26.440 12.4[D2676LF26]10.2012-
MAN26.440 12.4[D2676LF26]10.2007-
MAN26.440 12.4[D2676LF22]10.2012-
MAN26.440 12.4[D2676LF22]10.2007-
MAN26.440 10.5[D2066LF62]02.2009-
MAN26.440 10.5[D2066LF62]10.2007-
MAN26.440 10.5[D2066LF50]02.2009-
MAN26.440 10.5[D2066LF50]10.2007-
MAN26.440 10.5[D2066LF40]02.2009-
MAN26.440 10.5[D2066LF40]10.2007-
MAN26.440 10.5[D2066LF36]02.2009-
MAN26.440 10.5[D2066LF36]10.2007-
MAN26.440 10.5[D2066LF25]10.2007-
MAN26.400 10.5[D2066LF63]02.2009-
MAN26.400 10.5[D2066LF63]10.2007-
MAN26.400 10.5[D2066LF61]02.2009-
MAN26.400 10.5[D2066LF61]10.2007-
MAN26.400 10.5[D2066LF51]02.2009-
MAN26.400 10.5[D2066LF49]02.2009-
MAN26.400 10.5[D2066LF41]02.2009-
MAN26.400 10.5[D2066LF41]10.2007-
MAN26.400 10.5[D2066LF37]02.2009-
MAN26.400 10.5[D2066LF37]06.2005-
MAN26.400 10.5[D2066LF37]05.2004-
MAN26.400 10.5[D2066LF32]06.2005-
MAN26.400 10.5[D2066LF32]05.2004-
MAN26.400 10.5[D2066LF32]02.2004-
MAN26.400 10.5[D2066LF26]10.2007-
MAN26.400 10.5[D2066LF26]05.2004-
MAN26.400 10.5[D2066LF12]06.2005-
MAN26.400 10.5[D2066LF12]05.2004-
MAN26.400 10.5[D2066LF12]02.2004-
MAN26.400 10.5[D2066LF06]05.2004-
MAN26.400 10.5[D2066LF02]06.2005-
MAN26.400 10.5[D2066LF02]05.2004-
MAN26.400 10.5[D2066LF02]02.2004-
MAN26.390 10.5[D2066LF37]06.2005-
MAN26.390 10.5[D2066LF37]05.2004-
MAN26.390 10.5[D2066LF37]02.2004-
MAN26.390 10.5[D2066LF32]06.2005-
MAN26.390 10.5[D2066LF32]05.2004-
MAN26.390 10.5[D2066LF24]05.2004-
MAN26.390 10.5[D2066LF12]06.2005-
MAN26.390 10.5[D2066LF12]05.2004-
MAN26.390 10.5[D2066LF12]02.2004-
MAN26.390 10.5[D2066LF02]07.2005-
MAN26.390 10.5[D2066LF02]06.2005-
MAN26.390 10.5[D2066LF02]05.2004-
MAN26.390 10.5[D2066LF02]02.2004-
MAN26.360 10.5[D2066LF67]08.2008-
MAN26.360 10.5[D2066LF67]10.2007-
MAN26.360 10.5[D2066LF64]08.2008-
MAN26.360 10.5[D2066LF64]10.2007-
MAN26.360 10.5[D2066LF52]08.2008-
MAN26.360 10.5[D2066LF48]08.2008-
MAN26.360 10.5[D2066LF42]10.2007-
MAN26.360 10.5[D2066LF38]08.2008-
MAN26.320 10.5[D2066LF68]07.2008-
MAN26.320 10.5[D2066LF53]07.2008-
MAN26.320 10.5[D2066LF43]07.2008-
MAN26.320 10.5[D2066LF43]10.2007-
MAN26.320 10.5[D2066LF39]07.2008-
MAN26.320 10.5[D2066LF39]10.2007-
MAN26.320 10.5[D2066LF28]10.2007-
