S0011


Code: S0011

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

: 0001416036

STANDARD LINE

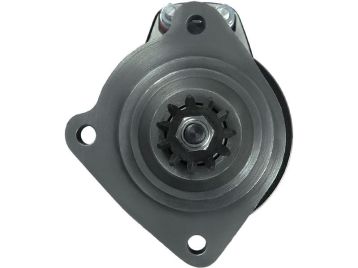

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 47.00 mm

C.1: 11.00 mm

C.2: 11.00 mm

C.3: 11.00 mm

Oil sealed: Yes

L.1: 386.00 mm

No./teeth: 11

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 127.00 mm

O.2: 89.00 mm

O.3: 89.00 mm

Power: 5.5 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
PRSS9033EFFE
STRS9033EFFE
CGB-11536Ainde
IM536 Avf
0001410111 Bosch
0001416036 Bosch
0986012730Bosch
110535Cargo
CST10628ASCasco
CST10628ESCasco
8694Cevam
1516756RDaf
DRS2730DELCO
33631Eai
22620Efel
STR1648Electrolog
STR79443Electrolog
621.000.0 Elmot
R23-21 Elmot
45-1370Elstock
220322Era
1701063Faun
C9JF11350AFord
D6PZ11350CFord
8812730Friesen
CS384Hc Parts
8EA726132-001Hella
11.139.013 Iskra / Letrika
AZK5173 Iskra / Letrika
IS9013 Iskra / Letrika
1171955Iveco
42498250Iveco
42522680Iveco
42526680Iveco
8121335Iveco
01171955Khd
01174639Khd
01174645Khd
1171955Khd
3040680Khd
10384Kuhner
22.0384Lauber
28.0384Lauber
330536Logistik
LRS00748Lucas
LRS748Lucas
72736194Mahle
MS566Mahle
81466036Monark
860655GBPrestolite
860656GBPrestolite
20401826BNReal
20401826ELReal
6010628.0Sando
6010628.3Sando
MAV126260SIOM
MAV126280SIOM
455616Valeo
16372NWai / Transpo
STR22018Woodauto


Usage

BrandModelTypeYearNote
IVECOP/PA 160-23 12.8[F8L413F]06.1986-05.1989
IVECOP/PA 160-30 12.8[BF8L513]06.1986-05.1989
IVECOP/PA 170-23 13.4[F8L513]04.1988-07.1991
IVECOP/PA 170-25 13.4[F8L513]03.1989-07.1991
IVECOP/PA 170-34 12.8[BF8L513]04.1989-07.1991
IVECOP/PA 180-23 13.4[F8L513]07.1991-07.2000
IVECOP/PA 180-25 13.4[F8L513]07.1991-07.2000
IVECOP/PA 180-34 12.8[BF8L513]07.1991-07.2000
IVECOP/PA 190-25 12.8[F8L413F]07.1983-09.1990
IVECOP/PA 260-25 12.8[F8L413F]07.1983-06.1986
IVECOP/PA 260-25 13.4[F8L513]04.1989-12.1999
IVECOP/PA 260-30 12.8[BF8L513]06.1986-05.1990
IVECOP/PA 260-34 12.8[BF8L513]04.1989-12.1999
IVECOP/PA 300-30 12.8[BF8L513]04.1987-05.1989
IVECOP/PA 330-30 12.8[BF8L513]05.1986-09.1990
IVECOP/PA 340-34 12.8[BF8L513]03.1989-12.1998
