  2. S0078



S0078


Code: S0078
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
: 0001231007
STANDARD LINE

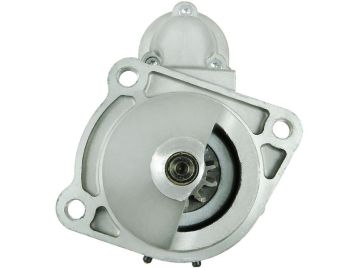

Brand new AS-PL Starter motor


Size a: 89.00 mm
Size b: 28.00 mm
C.1: 11.00 mm
C.2: 11.00 mm
C.3: 11.00 mm
L.1: 316.00 mm
No./teeth: 11
No./teeth (fits into): 11
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 94.00 mm
O.2: 127.00 mm
O.3: 82.50 mm
Power: 4.00 kW
Rotation: CW
Voltage: 24 v


Reference number

CodeManufacturer
CGB-28990Ainde
CGB-53103Ainde
ANM11210Andel
S0078 As-pl
UD11167SAs-pl
0001231007 Bosch
0001231019 Bosch
0001231030 Bosch
0001231119 Bosch
0986018990Bosch
F042002091Bosch
112446Cargo
CST10658ASCasco
CST10658GSCasco
CST10658RSCasco
8028Cevam
28.1243Cq
1516694RDaf
19083032DELCO
DRS8990DELCO
EAA-121144Eaa
STR1216Electrolog
STR7908Electrolog
45-3103Elstock
45-3331Elstock
220731Era
F926060041Fendt
F926900060041Fendt
8818990Friesen
CS1243Hc Parts
8EA737912-001Hella
11.130.730 Iskra / Letrika
AZF4509 Iskra / Letrika
IS0730 Iskra / Letrika
STB1243Krauf
101243Kuhner
101243PKuhner
331368Logistik
LRS01943Lucas
LRS01970Lucas
LRS1943Lucas
LRS1970Lucas
72736067Mahle
MS439 Mahle
51262017157 Man
51262017167Man
51262017183Man
51262017189Man
51262017213Man
51262017216Man
51262017217Man
51262019118Man
51262019157Man
51262019183Man
51262019213Man
N1015000012Man
N1015000628Man
5110019Meat & Doria
081251007 Monark
88212240Powermax
551.509.113.010Psh
551.509.113.018Psh
551.509.113.090Psh
551.509.113.098Psh
551.509.113.210Psh
551.509.113.216Psh
551.509.113.310Psh
20401856BNReal
20401856OEReal
20401856RCReal
RNL1899Rnl
STM932Rollco
6010658.0Sando
6010658.1Sando
6010658.2Sando
S24BH0064A2Sidat
MAV126580ASIOM
STX210206Stardax
STX210206RStardax
458335Valeo
30126NWai / Transpo
STR22101Woodauto


Usage

BrandModelTypeYearNote
MAN10.145 4.6[D0834LFL02]09.1981-09.1987
MAN10.145 4.6[D0834LFL02]09.2000-
MAN10.150 4.6[D0824LF0]02.1995-01.1996
MAN10.150 4.6[D0824LFO]02.1995-01.1996
MAN10.150 6.9[D0826GF01]09.1987-10.1993
MAN10.150 6.9[D0826GF03]09.1987-10.1993
MAN10.153 4.6[D0824LFL01]10.1993-06.1996
MAN10.153 4.6[D0824LFL05]10.1993-06.1996
MAN10.153 F 4.6[D0824LFL01]10.1993-
MAN10.153 F 4.6[D0824LFL05]10.1993-
MAN10.153 FA 4.6[D0824LFL01]10.1993-
MAN10.153 FA 4.6[D0824LFL05]10.1993-
MAN10.163 4.6[D0824LFL02]05.1994-12.1995
MAN10.163 4.6[D0824LFL02]05.1994-
MAN10.163 4.6[D0824LFL02]01.1995-
MAN10.163 4.6[D0824LFL06]05.1994-03.1997
MAN10.163 4.6[D0824LFL06]05.1994-
MAN10.163 4.6[D0824LFL06]01.1995-
MAN10.163 4.6[D0824LFL09]05.1994-
MAN10.163 4.6[D0824LFL09]01.1995-
MAN10.163 4.6[D0824LFL09]03.2000-
MAN10.163 4.6[D0824LFL09]09.2000-
MAN10.185 4.6[D0834LFL03]09.2000-
MAN10.185 4.6[D0834LFL03]09.2000-
MAN10.220 6.9[D0826LFL03]02.1995-02.2001
MAN10.220 6.9[D0826LFL03]02.1995-
MAN10.223 F 6.9[D0826LFL06]10.1993-06.1996
MAN10.223 FA 6.9[D0826LFL06]10.1993-06.1996
MAN10.223 FL 6.9[D0826LFL06]10.1993-06.1996
MAN10.224 6.9[D0826LFL03]05.1994-
MAN10.224 6.9[D0826LFL03]01.1995-
MAN10.224 6.9[D0826LFL03]02.2000-02.2001
MAN10.224 F 6.9[D0826LFL03]05.1994-
MAN10.224 FA 6.9[D0826LFL03]05.1994-
MAN10.224 FL 6.9[D0826LFL03]05.1994-
MAN10.225 6.9[D0836LFL02]09.2000-
MAN10.225 6.9[D0836LFL02]07.2001-
MAN12.163 4.6[D0824LFL06]08.1995-08.2001
MAN12.163 4.6[D0824LFL06]08.1995-
MAN12.163 4.6[D0824LFL09]08.1995-08.2001
MAN12.163 4.6[D0824LFL09]08.1995-
MAN12.185 4.6[D0834LFL03]09.1999-
MAN12.185 4.6[D0834LFL03]07.2001-
MAN12.185 9.7[D0834LFL03]05.2001-
MAN12.224 6.9[D0826LFL03]02.2000-08.2001
MAN12.224 6.9[D0826LFL10]08.1995-
MAN12.225 6.9[D0836LF04]02.2003-
MAN12.225 6.9[D0836LFL02]09.1999-
MAN12.225 6.9[D0836LFL02]07.2001-
MAN12.285 6.9[D0836LF03]02.2003-
MAN14.152 4.6[D0824LF01]05.1994-06.1997
MAN14.152 4.6[D0824LF01]05.1994-06.1996
MAN14.163 4.6[D0824LFL06]08.1995-08.2001
MAN14.163 4.6[D0824LFL06]08.1995-
MAN14.163 4.6[D0824LFL09]08.1995-08.2001
MAN14.163 4.6[D0824LFL09]08.1995-
MAN14.192 FA 6.6[D0826TF]08.1988-06.1990
MAN14.224 6.9[D0826LF15]02.2000-09.2001
MAN14.224 6.9[D0826LF18]08.1995-
MAN14.224 6.9[D0826LF18]08.1995-12.2005
MAN14.224 6.9[D0826LF18]02.2000-09.2001
MAN14.224 6.9[D0826LFL03]02.2000-09.2001
MAN14.224 6.9[D0826LFL10]08.1995-
MAN14.224 6.9[D0826LFL10]02.2000-09.2001
MAN14.225 6.9[D0836LF04]02.2003-
MAN14.225 6.9[D0836LFL02]09.2000-08.2002
MAN14.225 6.9[D0836LFL02]09.2000-
MAN14.255 6.9[D0836LF05]10.2000-
MAN14.255 6.9[D0836LFL05]09.2000-
MAN14.255 6.9[D0836LFL05]07.2001-
MAN14.264 6.9[D0826LF17]08.1995-12.2005
MAN14.264 6.9[D0826LF17]02.2000-09.2001
MAN14.264 6.9[D0826LFL09]08.1995-
MAN14.264 6.9[D0826LFL09]02.2000-09.2001
MAN14.284 6.9[D0836LF01]06.1998-
MAN14.284 6.9[D0836LF01]06.1998-12.2005
MAN14.284 6.9[D0836LF01]10.1998-
MAN14.284 6.9[D0836LF01]02.2000-09.2001
MAN14.285 6.9[D0836LFL03]09.1999-12.2005
MAN14.285 6.9[D0836LFL03]09.2000-
MAN14.285 6.9[D0836LFL03]09.2000-
MAN15.163 4.6[D0824LFL06]08.1995-09.2001
MAN15.163 4.6[D0824LFL06]08.1995-
MAN15.163 4.6[D0824LFL09]08.1995-09.2001
MAN15.163 4.6[D0824LFL09]08.1995-
MAN15.224 6.9[D0826LFL03]02.2000-09.2001
MAN15.224 6.9[D0826LFL10]08.1995-
MAN15.224 6.9[D0826LFL10]02.2000-09.2001
MAN15.225 6.9[D0836LFL02]09.1999-
MAN15.225 6.9[D0836LFL02]09.2001-
MAN15.255 6.9[D0836LFL05]09.1999-
MAN15.255 6.9[D0836LFL05]07.2001-08.2002
MAN15.264 6.9[D0826LFL09]08.1995-
MAN15.264 6.9[D0826LFL09]02.2000-09.2001
MAN15.284 6.9[D0836LF01]06.1998-
MAN15.284 6.9[D0836LF01]02.2000-09.2001
MAN15.285 6.9[D0836LFL03]09.1999-
MAN15.285 6.9[D0836LFL03]09.2000-09.2002
MAN17.192 6.9[D0826LF01]10.1992-04.1995
MAN17.192 6.9[D0826LF05]07.1990-06.1996
MAN17.192 6.9[D0826LF05]10.1992-04.1995
MAN17.192 6.9[D0826LF07]10.1992-04.1995
MAN17.222 6.9[D0826LF11]05.1994-06.1996
MAN18.224 6.9[D0826LF17]02.2000-09.2001
MAN18.224 6.9[D0826LF18]08.1995-12.2005
MAN18.224 6.9[D0826LF18]02.2000-09.2001
MAN18.224 6.9[D0826LFL03]02.2000-09.2001
MAN18.224 6.9[D0826LFL10]08.1995-
MAN18.224 6.9[D0826LFL10]02.2000-09.2001
MAN18.225 6.9[D0836LF04]02.2003-
MAN18.255 6.9[D0836LF05]10.2000-
MAN18.255 6.9[D0836LFL05]09.1999-
MAN18.255 6.9[D0836LFL05]09.2002-
MAN18.264 6.9[D0826LF17]02.2000-09.2001
MAN18.264 6.9[D0826LFL09]08.1995-
MAN18.264 6.9[D0826LFL09]02.2000-09.2001
MAN18.284 6.9[D0836LF01]06.1998-12.2005
MAN18.284 6.9[D0836LF01]06.1998-
MAN18.284 6.9[D0836LF01]02.2000-09.2001
MAN18.285 6.9[D0836LFL03]09.1999-
MAN18.285 6.9[D0836LFL03]07.2001-
MAN25.224 6.9[D0826LF18]08.1995-12.2005
MAN25.224 6.9[D0826LF18]02.2000-
MAN25.285 6.9[D0836LF03]02.2003-
MAN8.103 4.6[D0824FL01]10.1993-06.1996
MAN8.113 4.6[D0824LFL04]08.1995-09.2001
MAN8.113 4.6[D0824LFL04]08.1995-
MAN8.145 4.6[D0834LFL02]09.2000-
MAN8.145 4.6[D0834LFL02]07.2001-
MAN8.150 4.6[D0824LFO]02.1995-07.1998
MAN8.150 4.6[D0824LFO]02.1995-
MAN8.150 5.7[D0226MF]05.1988-05.1995
MAN8.150 6.9[D0826GF01]07.1988-10.1993
MAN8.150 6.9[D0826GF03]09.1987-10.1993
MAN8.150 6.9[D0826GF03]05.1988-05.1995
MAN8.150 6.9[D0826GF03]07.1988-10.1993
MAN8.150 6.9[D0826GF03]10.1992-05.1995
MAN8.150 6.9[D0826GF]09.1987-10.1993
MAN8.150 6.9[D0826GF]05.1988-05.1995
MAN8.153 4.6[D0824LFL01]10.1993-07.1997
MAN8.153 4.6[D0824LFL01]10.1993-06.1996
MAN8.153 4.6[D0824LFL01]01.1995-06.1996
MAN8.153 4.6[D0824LFL01]01.1995-09.1996
MAN8.153 4.6[D0824LFL05]10.1993-07.1997
MAN8.153 4.6[D0824LFL05]10.1993-06.1996
MAN8.153 4.6[D0824LFL05]01.1995-06.1996
MAN8.153 4.6[D0824LFL05]01.1995-09.1996
MAN8.163 4.6[D0824LFL02]05.1994-09.2001
MAN8.163 4.6[D0824LFL02]05.1994-
MAN8.163 4.6[D0824LFL02]01.1995-
MAN8.163 4.6[D0824LFL06]05.1994-
MAN8.163 4.6[D0824LFL06]01.1995-
MAN8.163 4.6[D0824LFL06]08.1995-
MAN8.163 4.6[D0824LFL07]08.1995-03.2001
MAN8.163 4.6[D0824LFL07]08.1995-03.1997
MAN8.163 4.6[D0824LFL07]08.1995-
MAN8.163 4.6[D0824LFL09]05.1994-09.2002
MAN8.163 4.6[D0824LFL09]05.1994-
MAN8.163 4.6[D0824LFL09]01.1995-
MAN8.163 4.6[D0824LFL09]09.2000-
MAN8.185 4.6[D0834LFL03]09.2000-
MAN8.185 4.6[D0834LFL03]09.2000-
MAN8.220 6.9[D0826LFL03]02.2000-09.2001
MAN8.223 6.9[D0826LFL06]10.1993-06.1996
MAN8.224 6.9[D0826LFL03]05.1994-
MAN8.224 6.9[D0826LFL03]08.1994-09.2001
MAN8.224 6.9[D0826LFL03]01.1995-
MAN8.225 6.9[D0826LFL10]09.2000-
MAN8.225 6.9[D0826LFL10]07.2001-
MAN8.225 6.9[D0836LFL02]09.2000-
MAN8.225 6.9[D0836LFL02]07.2001-
MAN9.145 4.6[D0834LFL02]09.2000-
MAN9.145 4.6[D0834LFL02]07.2001-
MAN9.150 6.9[D0826GF01]07.1988-10.1993
MAN9.150 6.9[D0826GF03]09.1987-10.1993
MAN9.150 6.9[D0826GF03]07.1988-10.1993
MAN9.150 6.9[D0826GF03]10.1992-05.1995
MAN9.150 6.9[D0826GF]09.1987-10.1993
MAN9.150 6.9[D0826GF]05.1988-05.1992
MAN9.153 4.6[D0824LFL01]10.1993-01.1995
MAN9.153 4.6[D0824LFL01]10.1993-06.1996
MAN9.153 4.6[D0824LFL05]10.1993-06.1996
MAN9.153 4.6[D0824LFL05]08.1995-06.1996
MAN9.163 4.6[D0824LFL07]08.1995-03.1997
MAN9.163 4.6[D0824LFL09]05.1994-
MAN9.163 4.6[D0824LFL09]02.2000-09.2001
MAN9.185 4.6[D0834LFL03]09.2000-08.2002
MAN9.185 4.6[D0834LFL03]09.2000-
MAN9.223 6.9[D0826LFL02]10.1993-06.1996
MAN9.224 6.9[D0826LFL03]05.1994-
MAN9.224 6.9[D0826LFL03]02.2000-09.2001
MAN9.225 6.9[D0836LFL02]09.2000-
MAN9.225 6.9[D0836LFL02]07.2001-06.2005
MANEM 222 6.9[D0826LOH15]02.1996-
MANEM 222 6.9[D0826LOH15]06.2000-09.2001
MANEM 222 6.9[D0826LUH12]06.2000-09.2001
MANEM 223 6.9[D0826LOH15]08.1987-
MANEM 223 6.9[D0826LOH15]02.2000-09.2001
MANEM 223 6.9[D0826LUH12]02.1996-
MANEM 223 6.9[D0826LUH12]02.2000-09.2001
MANNL 202 6.9[D0826LUH03]04.1994-03.1997
MANNL 202 6.9[D0826LUH12]04.1994-03.1997
MANNL 202 6.9[D0826LUH]04.1991-
MANNL 202 6.9[D0826LUH]04.1994-03.1997
MANNL 223 6.9[D0826LUH03]07.1998-09.2001
MANNL 223 6.9[D0826LUH12]08.1992-
MANNL 223 6.9[D0826LUH12]07.1998-09.2001
MANNL 262 6.9[D0826LUH]04.1991-
MANNL 262 6.9[D0826LUH]04.1994-02.1997
MANNM 152 4.4[D0824LOH01]04.1992-05.1996
MANNM 152 4.4[D0824LOH01]04.1992-03.1997
MANNM 222 6.9[D0826LOH15]02.1996-
MANNM 222 6.9[D0826LOH15]02.2000-
MANNM 223 6.9[D0826LOH15]08.1987-
MANNM 223 6.9[D0826LOH15]02.2000-09.2001
MANNM 223 6.9[D0826LUH12]02.1996-
MANNM 223 6.9[D0826LUH12]02.2000-09.2001
MANSG 283 6.9[D0836LOH02]09.2003-
MANSU 283 6.9[D0836LOH02]09.2003-
