S01070S


Code: S01070S

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

: 0001263501

STANDARD LINE

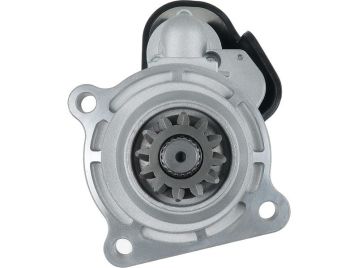

Brand new AS-PL Starter motor


Size a: 89.00 mm

Size b: 49.00 mm

C.1: 11.50 mm

C.2: 11.50 mm

C.3: 11.50 mm

L.1: 325.00 mm

No./teeth: 12

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 90.00 mm

O.2: 90.00 mm

O.3: 127.00 mm

Power: 5.50 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
UD17339SAs-pl
0001263501 Bosch
0001263502Bosch
CST10846ASCasco
CST10846GSCasco
108270Farcom
10010846AVItab Automotive
10010846OVItab Automotive
5801311484Iveco
5802001283Iveco
994327600Iveco
20401648BNReal
20401648OEReal
6010846.0Sando
6010846.1Sando
MAV128460ASIOM


Usage

BrandModelTypeYearNote
IVECOVarious Models
