  3. S0340



S0340


Code: S0340

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

: 0001416031

STANDARD LINE

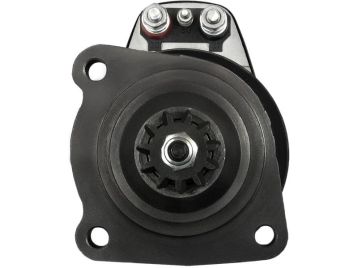

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 47.50 mm

Oil sealed: Yes

Insulated return: Yes

L.1: 386.00 mm

No./teeth: 11

No./teeth (fits into): 11

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 127.00 mm

O.2: 90.00 mm

O.3: 90.00 mm

Power: 5.40 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
0001416031 Bosch
114437Cargo
CST10799ASCasco
19024031 DELCO
6114855Ford
82DB11000BBFord
IS9069 Iskra / Letrika
01162183Khd
01174635Khd
1162183Khd
1174635Khd
10383Kuhner
254324Kuhner
28.3003Lauber
331986Logistik
1162183Magirus-deutz
MS 575Mahle
860652Prestolite
20401997BNReal
6010799Sando
UNIT BOM 120-578Wai / Transpo


Usage

BrandModelTypeYearNote
ATLAS COPCOPR 425 8.5[F6L413]02.1972-12.1986
BOSCHDDOD 100 9.6[F6L413]04.1982-01.1999
FORD2220 9.6[F6L413]04.1982-03.1984
FORD2420 9.6[F6L413]04.1982-08.1987
FORD2817 9.6[F6L413]04.1982-12.1999
FORD2820 S 9.6[F6L413]12.1984-08.1987
FORD3020 9.6[F6L413]04.1982-12.1999
FORD3220 9.6[F6L413]04.1982-08.1987
KHDDX250 9.6[01.82]01.1982-
KHDEngine 9.6 Diesel[F6L413]04.1982-
KHDVarious Models[F6L413]
PoclainVarious Models 8.5[F6L413]01.1973-
