S0341


Code: S0341

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

: 0001416033

STANDARD LINE

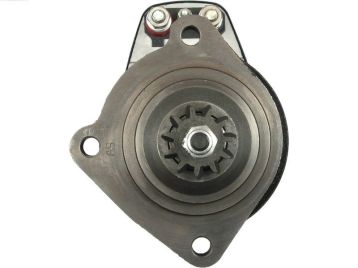

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 47.00 mm

C.1: 11.00 mm

C.2: 11.00 mm

C.3: 11.00 mm

Oil sealed: Yes

L.1: 386.00 mm

No./teeth: 11

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 89.00 mm

O.2: 89.00 mm

O.3: 127.00 mm

Power: 5.40 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
STRF8243EFFE
UD16620SAs-pl
0001416033 Bosch
CST10810ASCasco
19024033 DELCO
01174645Deutz
STR1647Electrolog
220318Era
IS9058 Iskra / Letrika
0746399Khd
1174639Khd
10384Kuhner
MS 470Mahle
860656GBPrestolite
20401018BNReal
6010810Sando
MAV126280SIOM
UNIT BOM 120-5065AWai / Transpo


Usage

BrandModelTypeYearNote
IVECOVarious Models
PoclainVarious ModelsPPM-680-ATT
