S0581


Code: S0581

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

: 0001223507

STANDARD LINE

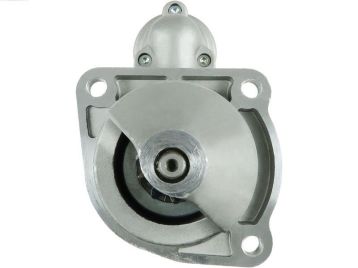

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 27.50 mm

C.1: 11.00 mm

C.2: 11.00 mm

C.3: 11.00 mm

L.1: 284.00 mm

No./teeth: 10

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 90.00 mm

O.2: 127.00 mm

O.3: 90.00 mm

Power: 2.60 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
STRS9173EFFE
ANM12249XAndel
UD12012SAs-pl
0001223507 Bosch
CST10467Casco
CST10467ASCasco
CST10467ESCasco
CST10467GSCasco
CST10467OSCasco
CST10467RSCasco
CST21122Casco
CST21122ASCasco
CST21122ESCasco
CST21122GSCasco
CST21122OSCasco
CST21122RSCasco
DRS0029DELCO
EAA-141408Eaa
STR1721Electrolog
SG9047Ghibaudi
504015749Iveco
254967MKuhner
500.559.103Psh
6010467Sando
6021122Sando
STX210072Stardax
UNIT BOM 920-707Wai / Transpo


Usage

BrandModelTypeYearNote
CASEEngine05.2006-
CLAASVarious Models04.2004-
NEW HOLLANDEngine12.2007-
STEYRVarious Models04.2001-
