S0590


Code: S0590

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

: 0001417022

STANDARD LINE

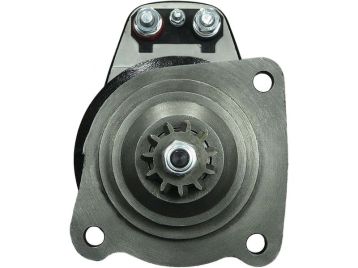

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 47.00 mm

C.1: 10.50 mm

C.2: 10.50 mm

C.3: 10.50 mm

Oil sealed: Yes

Insulated return: Yes

L.1: 406.00 mm

No./teeth: 11

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 90.00 mm

O.2: 90.00 mm

O.3: 127.00 mm

Power: 6.60 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
UD12341SAs-pl
0001417022 Bosch
19024062 DELCO
4778060Volvo
UNIT BOM 904-263Wai / Transpo


Usage

BrandModelTypeYearNote
VOLVOVarious Models
