S0648S


Code: S0648S

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

: 0001510028

STANDARD LINE

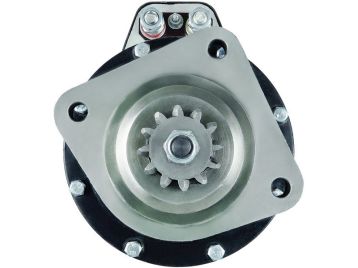

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 47.00 mm

C.1: 11.50 mm

C.2: 11.50 mm

C.3: 11.50 mm

L.1: 459.00 mm

No./teeth: 12

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 90.00 mm

O.2: 127.00 mm

O.3: 90.00 mm

Power: 9.00 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
STRF1833EFFE
UD13769SAs-pl
0001510028 Bosch
CST10741Casco
CST10741ASCasco
CST10741ESCasco
CST10741GSCasco
CST10741OSCasco
CST10741RSCasco
19024844DELCO
260-51206Dixie
STB5128Krauf
254809RKuhner
77726640DMoteurs Baudouin.s.a
771.202.123Psh
6010741Sando
UNIT BOM 920-1422Wai / Transpo
BOS0001510028Woodauto


Usage

BrandModelTypeYearNote
Moteurs BaudouinEngine
