  1. Starters
    2. >
  2. S0686PR



S0686PR


Code: S0686PR
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
PREMIUM LINE

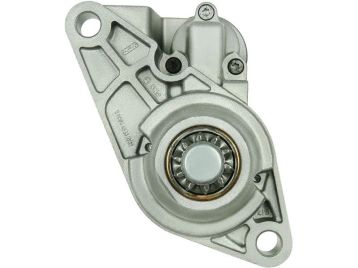

Remanufactured AS-PL Starter motor


Size a: 76.50 mm
Size b: 52.00 mm
C.1: 12.50 mm
C.2: 12.50 mm
L.1: 194.00 mm
No./teeth: 10
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 151.00 mm
Power: 0.90 kW
Rotation: ACW
Voltage: 12 v


Reference number

CodeManufacturer
PRSW1653EFFE
STRW1653EFFE
0001120400 Bosch
0001120401 Bosch
113515Cargo
CST10138ASCasco
CST10138GSCasco
3345Cevam
DRT0780DELCO
DT1890DELCO
EAA-121233Eaa
STR1235Electrolog
25-3131Elstock
220530Era
220544Era
CS1282Hc Parts
42020780Herth+buss
STB1282Krauf
101282Kuhner
101282BKuhner
LRS01610Lucas
LRS1610Lucas
06352120400Magneti Marelli
944280207800Magneti Marelli
MRS20780Magneti Marelli
5010026Meat & Doria
88212172Powermax
300.559.102.210Psh
20401831BNReal
STM1037Rollco
6010138.0Sando
6010138.1Sando
S12BH0176Sidat
S12BH0176A2Sidat
STX200135Stardax
STX200135RStardax
438261Valeo
458421Valeo
D7ES6 Valeo
02T911023DVw
02T911023G Vw
02T911023GXVw
02T911023QVw
2T911023DVw
2T911023GVw
2T911023QVw
32613NWai / Transpo
32613RWai / Transpo


Usage

BrandModelTypeYearNote
AUDIA2 1.4[AUA]02.2000-08.2005
AUDIA2 1.4[BBY]02.2000-08.2005
AUDIA2 1.6 FSi[BAD]05.2002-08.2005
SEATCordoba 1.2[AZQ]10.2002-06.2006
SEATCordoba 1.2[BME]10.2002-06.2006
SEATCordoba 1.4 16V[AUB]10.2002-11.2009
SEATCordoba 1.4 16V[BBY]09.2002-12.2007
SEATCordoba 1.4 16V[BBZ]10.2002-11.2009
SEATCordoba 1.4 16V[BKY]09.2002-12.2007
SEATCordoba 1.6[BAH]04.2003-11.2009
SEATIbiza 1.2[AZQ]02.2002-06.2006
SEATIbiza 1.2[BME]02.2002-06.2006
SEATIbiza 1.4 16V[AUB]02.2002-11.2009
SEATIbiza 1.4 16V[BBY]02.2002-12.2007
SEATIbiza 1.4 16V[BBZ]02.2002-11.2009
SEATIbiza 1.4 16V[BKY]02.2002-12.2007
SEATIbiza 1.6[BAH]02.2003-11.2009
SKODAFabia 1.2[AWY]07.2001-04.2007
SKODAFabia 1.2[AWY]07.2001-12.2007
SKODAFabia 1.2[AZQ]01.2003-03.2008
SKODAFabia 1.2[AZQ]01.2003-12.2007
SKODAFabia 1.2[BMD]07.2001-04.2007
SKODAFabia 1.2[BMD]07.2001-12.2007
SKODAFabia 1.2[BME]01.2003-03.2008
SKODAFabia 1.2[BME]01.2003-12.2007
SKODAFabia 1.4 16V[AUA]10.1999-12.2007
SKODAFabia 1.4 16V[AUA]12.1999-03.2008
SKODAFabia 1.4 16V[AUA]05.2000-12.2007
SKODAFabia 1.4 16V[AUB]12.1999-03.2008
SKODAFabia 1.4 16V[AUB]12.1999-12.2007
SKODAFabia 1.4 16V[AUB]04.2000-12.2007
SKODAFabia 1.4 16V[BBY]10.1999-12.2007
SKODAFabia 1.4 16V[BBY]12.1999-03.2008
SKODAFabia 1.4 16V[BBY]05.2000-12.2007
SKODAFabia 1.4 16V[BBZ]12.1999-03.2008
SKODAFabia 1.4 16V[BBZ]12.1999-12.2007
SKODAFabia 1.4 16V[BBZ]04.2000-12.2007
SKODAFabia 1.4 16V[BKY]10.1999-12.2007
SKODAFabia 1.4 16V[BKY]12.1999-03.2008
SKODAFabia 1.4 16V[BKY]05.2000-12.2007
VWBora 1.6 FSi[BAD]01.2002-05.2005
VWFox 1.2[BMD]04.2005-07.2011
VWFox 1.2[CHFA]09.2010-12.2011
VWFox 1.2[CHFB]04.2005-07.2011
VWFox 1.4[BKR]04.2005-12.2009
VWGolf IV 1.6 FSi[BAD]01.2002-06.2005
VWGolf IV 1.6 FSi[BAD]01.2002-06.2006
VWLupo 1.6 GTi[AVY]09.2000-07.2005
VWNew Beetle 1.4[BCA]11.2001-09.2010
VWNew Beetle 1.4[BCA]01.2003-09.2010
VWPolo 1.2[AWY]01.2002-05.2007
VWPolo 1.2[BMD]01.2002-05.2007
VWPolo 1.2 12V[AZQ]10.2001-07.2007
VWPolo 1.2 12V[BME]10.2001-07.2007
VWPolo 1.4[BBY]11.2002-04.2012
VWPolo 1.4[BBZ]11.2003-
VWPolo 1.4[BKY]11.2002-04.2012
VWPolo 1.4 16V[AUA]10.2001-05.2008
VWPolo 1.4 16V[AUB]10.2001-05.2008
VWPolo 1.4 16V[BBY]10.2001-05.2008
VWPolo 1.4 16V[BBZ]10.2001-05.2008
VWPolo 1.4 16V[BKY]10.2001-05.2008
VWPolo 1.4 FSi[AXU]02.2002-07.2006
