S0740S


Code: S0740S

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

: 0001418003

STANDARD LINE

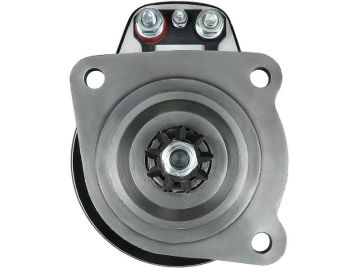

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 47.50 mm

C.1: 11.00 mm

C.2: 11.00 mm

C.3: 11.00 mm

Oil sealed: Yes

L.1: 387.00 mm

No./teeth: 9

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 90.00 mm

O.2: 90.00 mm

O.3: 127.00 mm

Power: 3.60 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
UD16654SAs-pl
05710906Bomag
05710993Bomag
0001401012 Bosch
0001413010 Bosch
0001418003 Bosch
111217Cargo
8882Cevam
EAA-121735Eaa
33653Eai
3109Efel
STR10320Electrolog
STR79525Electrolog
STR79526Electrolog
CS956Hc Parts
11.139.530Iskra / Letrika
01304445Khd
1304445Khd
STB0151Krauf
331181Logistik
MS716Mahle
51.26201-7008Man
51.26201-9008Man
88.26201-6002Man
5010314Meat & Doria
0031514401Mercedes
0041514001Mercedes
A0031514401Mercedes
A0041514001Mercedes
88213065Powermax
861067Prestolite
790.101.093.010Psh
790.101.093.016Psh
790.101.093.311Psh
790.101.093.380Psh
240500Volvo
240524Volvo
240847Volvo
6643669Volvo
6643900Volvo
7240524Volvo
120-6193BWai / Transpo
STR50556Woodauto


Usage

BrandModelTypeYearNote
BOMAGBW 4A 2.8[KHD-F3L912]01.1973-09.1984
BOMAGBW 6A 2.8[KHD-F3L912]01.1973-
VOLVO BMS950 5.0[D50A]02.1966-12.1970
VOLVO BMT800 5.0[D50A]01.1967-12.1975
VOLVO BMT810 5.0[TD50A]03.1969-12.1975
VOLVO BMT814 5.0[TD50A]03.1969-06.1979
VOLVOB 705 4.7[D47B]01.1962-04.1964
VOLVOF 84 5.0[D50B]01.1972-12.1974
VOLVOF 84T 5.0[TD50B]01.1972-10.1978
VOLVOF 85 5.0[D50B]01.1972-12.1974
VOLVOF 85T 5.0[TD50B]01.1972-10.1978
VOLVOF 86 6.7[D70B]06.1970-12.1974
VOLVOF 86T 6.7[TD70B]08.1970-09.1974
VOLVOFB 84 5.0[D50B]01.1972-12.1974
VOLVOFB 84T 5.0[TD50B]01.1972-10.1978
VOLVOFB 85T 5.0[TD50B]01.1972-10.1978
VOLVOFB 86 6.7[D70B]06.1970-12.1974
VOLVOFB 86T 6.7[TD70B]08.1970-09.1974
VOLVOL 375 Strake 4.7[D47A]01.1959-12.1961
VOLVOL 465 4.7[D47B]06.1961-05.1965
VOLVOL 475 4.7[D47B]06.1961-05.1965
VOLVOL 475 4.7[TD47B]06.1961-05.1965
VOLVOL 4751 4.7[D47B]10.1964-12.1965
VOLVOL 4751 4.7[TD47B]10.1964-12.1965
VOLVON 7 6.7[TD70B]09.1973-07.1978
VOLVON 84 5.0[D50B]01.1972-08.1973
VOLVON 86T 6.7[TD70B]08.1970-08.1973
VOLVONB 84 5.0[D50B]01.1972-08.1973
VOLVONB 86 6.7[D70B]06.1970-08.1973
VOLVONB 86T 6.7[TD70B]08.1970-08.1973
