S0805S

Code: S0805S

---

Category: Starters

---

Manufacturer: Bosch

---

Supplier: As-pl

---

: 0001410037

---

STANDARD LINE

---

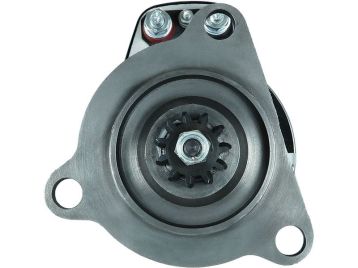

Brand new AS-PL Starter motor

---

Size a: 92.00 mm

---

Size b: 37.50 mm

---

C.1: 17.00 mm

---

C.2: 17.00 mm

---

C.3: 17.00 mm

---

Oil sealed: Yes

---

Insulated return: Yes

---

L.1: 388.00 mm

---

No./teeth: 11

---

No./mount. holes: 3

---

No./mount. holes with thread: 0

---

O.1: 127.00 mm

---

O.2: 127.00 mm

---

O.3: 127.00 mm

---

Power: 5.50 kW

---

Rotation: CW

---

Voltage: 24 v

---
