  3. S1056



S1056


Code: S1056

Category: Starters

Manufacturer: DELCO

Supplier: As-pl

STANDARD LINE

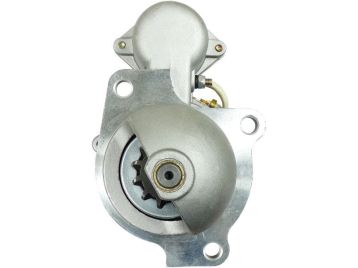

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 46.00 mm

C.1: 11.00 mm

C.2: 11.00 mm

C.3: 11.00 mm

L.1: 338.00 mm

No./teeth: 12

No./teeth (fits into): 12

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 90.00 mm

O.2: 90.00 mm

O.3: 127.00 mm

Power: 2.80 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
STRL6353EFFE
STRL7343EFFE
CGB-1575Ainde
S1056 As-pl
UD02194SAs-pl
UD02199SAs-pl
6630182Bobcat
6649676Bobcat
6660797Bobcat
6714082Bobcat
110602Cargo
CST60126Casco
CST60126ASCasco
CST60126ESCasco
CST60126GSCasco
CST60126OSCasco
CST60126RSCasco
8729Cevam
10465058 DELCO
10465348 DELCO
10465420 DELCO
10479613 DELCO
1107588 DELCO
1108692 DELCO
1113273 DELCO
1998339 DELCO
201-28104Dixie
EAA-121351Eaa
STR2680Electrolog
STR2684Electrolog
25-2255Elstock
US844Hc Parts
60824Kuhner
60844Kuhner
60860Kuhner
6571Lester
6586Lester
LRS01384Lucas
LRS1384Lucas
20409401Real
20409621BNReal
140-28111Robert's
6060126Sando
ALT131110SIOM
MAV621040SIOM
50-8403Wai / Transpo
50-8426Wai / Transpo
6571NWai / Transpo


Usage

BrandModelTypeYearNote
BOBCAT160001.1989-
BOBCAT611[Deutz]
BOBCAT621[Deutz]
BOBCAT64301.1982-01.1989
BOBCAT733[Deutz]
BOBCAT74301.1982-
BOBCAT75301.1990-01.1993
BOBCAT825[Perkins]
BOBCAT833[Perkins]
BOBCAT843[Perkins]
CLARKVarious Models01.1968-
PERKINS4-10801.1989-
PERKINS4-15401.1989-
