S1198S


Code: S1198S
Category: Starters
Manufacturer: DELCO
Supplier: As-pl
: 8000188
STANDARD LINE

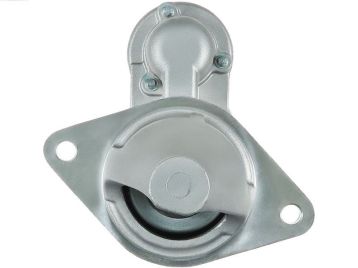

Brand new AS-PL Starter motor


Size a: 68.00 mm
Size b: 18.50 mm
C.1: 8.50 mm
C.2: 8.50 mm
L.1: 213.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 105.00 mm
Power: 1.10 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
STRL1373EFFE
ANM16056XAndel
UD20588SAs-pl
0001107401 Bosch
0001107408 Bosch
0001107413 Bosch
0001107435 Bosch
0986017120Bosch
F042202534Bosch
F042S02170Bosch
113276Cargo
CST10203ASCasco
3620Cevam
25182244Chevrolet
25186107 Chevrolet
96208782 Chevrolet
96469963Chevrolet
96550792 Chevrolet
96843578Chevrolet
96952006Chevrolet
8000188 DELCO
9000893 DELCO
9000944 DELCO
DRS3836DELCO
11665Eai
STR2203 Electrolog
220226Era
220656Era
71739718Fiat
71739864Fiat
DS7T11000GA Ford
24406133Gm
CS1257Hc Parts
8EA012527-441Hella
8EA737988-001Hella
42017120Herth+buss
S114-907 Hitachi
S114-907A Hitachi
STB1254Krauf
101257Kuhner
101257HKuhner
09115190Opel
09115192Opel
09130838Opel
09163856Opel
09512051Opel
1202128Opel
1202137Opel
1202142Opel
1202172Opel
1202173Opel
1202281Opel
24436877Opel
25187957 Opel
55351508Opel
55351608Opel
55556130Opel
6202013Opel
6202016Opel
6202020Opel
6202050Opel
6202061Opel
6202064Opel
6202072Opel
6202075Opel
6202077Opel
6202079Opel
6202088Opel
6202094Opel
90341777Opel
90421876Opel
90421877Opel
90508036 Opel
90543871Opel
90543872Opel
9115190Opel
9115191Opel
9115192Opel
9115197Opel
9130838Opel
913837NOpel
9190838Opel
9198701Opel
9199321Opel
93171936Opel
93171950Opel
93175885Opel
93175903Opel
93175996Opel
93176051Opel
93178167Opel
93184533Opel
93184534Opel
93184535Opel
93189230Opel
93189231Opel
93604828Opel
9512767Opel
95524889Opel
R1040008Opel
R1540011Opel
R1540024Opel
130.533.092Psh
20401302BNReal
20401302OEReal
93184533Saab
S12BH0128Sidat
S12BH0128A2Sidat
MAV122030SIOM
MAV122480SIOM
MAV4560SIOM
MAV6300SIOM
MAV7010SIOM
MAV7060SIOM
STX200006Stardax
STX200006RStardax
STX200009Stardax
STX200009RStardax
STX200083Stardax
STX200083RStardax
STX200152Stardax
STX200441Stardax
STX200441RStardax
90543871Vauxhall
9115192Vauxhall
9130838Vauxhall
93176051Vauxhall
93184533Vauxhall
R1040008Vauxhall
24437136Volvo
31222RWai / Transpo
BOS0001107401Woodauto


Usage

BrandModelTypeYearNote
OPELAgila 1.0[Z10XEP]08.2003-12.2007
OPELAgila 1.0 i 12V[Z10XE]09.2000-12.2007
OPELAgila 1.2 16V Twinport[Z12XEP]07.2004-12.2007
OPELAgila 1.2 i 16V[Z12XE]09.2000-12.2007
OPELAstra 1.4[Z14XEP]01.2009-
OPELAstra G 1.2 i 16V[X12XE]02.1998-09.2000
OPELAstra G 1.2 i 16V[X12XE]09.1998-09.2000
OPELAstra G 1.2 i 16V[Z12XE]09.2000-01.2005
OPELAstra G 1.2 i 16V[Z12XE]09.2000-07.2004
OPELAstra G 1.4 i 16V[X14XE]02.1998-01.2005
OPELAstra G 1.4 i 16V[X14XE]06.1998-07.2004
OPELAstra G 1.4 i 16V[X14XE]09.1998-01.2005
OPELAstra G 1.4 i 16V[Z14XE]09.2000-01.2004
OPELAstra G 1.6[Z16XEP]01.2003-10.2005
OPELAstra G 1.6[Z16XEP]10.2004-04.2005
OPELAstra G 1.6[Z16XEP]02.2006-07.2009
OPELAstra G 1.6[Z16YNG]03.2003-07.2004
OPELAstra G 1.6 16V[X16XEL]02.1998-07.2004
OPELAstra G 1.6 16V[X16XEL]02.1998-01.2005
OPELAstra G 1.6 16V[Z16XE]03.2000-05.2005
OPELAstra G 1.6 i[X16SZR]02.1998-09.2000
OPELAstra G 1.6 i[X16SZR]09.1998-09.2000
OPELAstra G 1.6 i[X16SZR]01.1999-09.2000
OPELAstra G 1.6 i[Z16SE]09.2000-01.2005
OPELAstra G 1.6 i[Z16SE]09.2000-07.2004
OPELAstra G 1.6 i[Z16SE]09.2000-04.2005
OPELAstra G 1.6 i 16V[X16XEL]09.1998-01.2005
OPELAstra G 1.6 i 16V[Z16XE]02.1998-01.2005
OPELAstra G 1.6 Twinport[Z16XEP]12.2002-01.2005
OPELAstra G 1.6 Twinport[Z16XEP]12.2002-12.2009
OPELAstra G 1.6 Twinport[Z16XEP]12.2002-07.2004
OPELAstra G 1.8 i 16V[X18XE1]03.2000-10.2000
OPELAstra G 1.8 i 16V[Z18XE]06.2000-01.2005
OPELAstra G 1.8 i 16V[Z18XE]09.2000-01.2005
OPELAstra G 1.8 i 16V[Z18XE]09.2000-05.2005
OPELAstra H 1.4[Z14XEL]04.2004-10.2004
OPELAstra H 1.4[Z14XEL]03.2005-
OPELAstra H 1.4 LPG[Z14XEP]08.2009-
OPELAstra H 1.6[Z16XE1]03.2004-
OPELAstra H 1.6[Z16XE1]09.2005-
OPELAstra H 1.6[Z16XEP]03.2004-
OPELAstra H 1.6[Z16XEP]09.2005-
OPELAstra H 1.6 Twinport[Z16XE1]08.2004-
OPELAstra H 1.6 Twinport[Z16XEP]08.2004-
OPELAstra H 1.6 Twinport GTC[Z16XE1]03.2005-
OPELAstra H 1.6 Twinport GTC[Z16XEP]03.2005-
OPELAstra H 1.8[Z18XE]03.2004-
OPELAstra H 1.8[Z18XE]08.2004-
OPELAstra H 1.8[Z18XE]09.2005-
OPELAstra H 1.8 i GTC[Z18XE]03.2005-
OPELCombo 1.2 i[C12NZ]07.1994-10.2001
OPELCombo 1.2 i[X12SZ]07.1994-10.2001
OPELCombo 1.4[X14SZ]07.1994-10.2001
OPELCombo 1.4 i[C14SE]07.1994-10.2001
OPELCombo 1.6[Z16SE]10.2001-
OPELCombo 1.6 16V Tour[Z16YNG]06.2006-
OPELCorsa B 1.2 i[12NZ]03.1993-09.2000
OPELCorsa B 1.4 i[X14SZ]03.1993-09.2000
OPELCorsa C 1.0 i 12V[Z10XE]09.2000-
OPELCorsa C 1.0 Twinport[Z10XEP]06.2003-
OPELCorsa C 1.2[Z12XEP]07.2005-
OPELCorsa C 1.2 i 16V[Z12XE]09.2000-
OPELCorsa C 1.4[Z14XEP]08.2003-
OPELCorsa C 1.4 i 16V[Z14XE]09.2000-
OPELCorsa C 1.8 i 16V[Z18XE]09.2000-
OPELCorsa D 1.0[A10XEP]07.2006-
OPELCorsa D 1.2[A12XEL]06.2010-
OPELCorsa D 1.2[A12XER]06.2010-
OPELCorsa D 1.2[Z12XEP]07.2006-
OPELCorsa D 1.2[Z12XEP]07.2009-
OPELCorsa D 1.2[Z12XEP]09.2009-
OPELCorsa D 1.2 LPG[Z12XEP]09.2009-
OPELCorsa D 1.4[Z14XEP]07.2006-
OPELCorsa D 1.4 LPG[A14XEL]09.2009-
OPELCorsa D 1.4 LPG[Z14XEP]07.2006-
OPELMeriva 1.4 16V LPG[Z14XEP]07.2004-05.2010
OPELMeriva A 1.8[Z18XE]05.2003-
OPELTigra 1.6 i 16V[C16SEL]08.1997-08.1998
OPELTigra 1.6 i 16V[X16XE]07.1994-08.1998
OPELTigra 1.8 i[Z18XE]06.2004-
OPELVectra A 1.4 S[14NV]04.1988-06.1992
OPELVectra B 1.6 i[16LZ2]10.1995-07.2003
OPELVectra B 1.6 i 16V[X16XEL]09.1995-08.2000
OPELVectra B 1.6 i 16V[X16XEL]10.1995-07.2002
OPELVectra B 1.6 i 16V[X16XEL]11.1996-07.2002
OPELVectra C 1.6[Z16XEP]01.2006-
OPELVectra C 1.6 16V[Z16XE]06.2004-
OPELVectra C 1.6 GTS[Z16XE]08.2005-
OPELVectra C 1.8 16V GTS[Z18XEL]08.2002-12.2006
OPELVectra C 1.8 i[Z18XE]10.2003-
OPELVectra C 1.8 i 16V[Z18XEL]04.2002-
OPELVectra C 1.8 i 16V[Z18XE]04.2002-
OPELZafira A 1.6 16V[X16XEL]04.1999-06.2005
OPELZafira A 1.6 16V[Z16XE]09.2000-06.2005
OPELZafira A 1.6 i[Z16YNG]09.2001-06.2005
OPELZafira B 1.6[Z16XE1]07.2005-
OPELZafira B 1.6[Z16XEP]07.2005-
VAUXHALLAgila 1.0 12V[Z10XEP]08.2003-
VAUXHALLAgila 1.0 12V[Z10XE]09.2000-
VAUXHALLAgila 1.2 16V[Z12XE]09.2000-03.2008
VAUXHALLAstra 1.6[Z16XEP]09.2005-11.2010
VAUXHALLAstra G 1.2 16V[X12XE]02.1998-09.2000
VAUXHALLAstra G 1.2 16V[X12XE]09.1998-09.2000
VAUXHALLAstra G 1.6[X16SZR]02.1998-09.2000
VAUXHALLAstra G 1.6[X16SZR]09.1998-09.2000
VAUXHALLAstra G 1.8 16V[X18XE1]02.1998-09.2000
VAUXHALLAstra Mk 4 1.6[X16XEL]09.1999-08.2004
VAUXHALLAstra Mk 4 1.6[Z16XE]09.1999-08.2004
VAUXHALLAstra MK IV 1.2 16V[Z12XE]09.2000-05.2005
VAUXHALLAstra MK IV 1.6[Z16SE]09.2000-05.2005
VAUXHALLAstra MK IV 1.6[Z16SE]09.2000-
VAUXHALLAstra MK IV 1.6[Z16XEP]12.2002-05.2005
VAUXHALLAstra MK IV 1.6[Z16XE]09.2002-
VAUXHALLAstra MK IV 1.6[Z16XE]09.2002-05.2005
VAUXHALLAstra MK IV 1.6 16V[Z16XEP]03.2000-08.2005
VAUXHALLAstra MK IV 1.6 16V[Z16XEP]03.2003-10.2005
VAUXHALLAstra Mk IV 1.807.2002-12.2003
VAUXHALLAstra Mk IV 1.8[Z18XE]07.2002-08.2004
VAUXHALLAstra Mk IV 1.8[Z18XE]07.2002-12.2003
VAUXHALLAstra MK IV 1.8 16V[Z18XE]09.2000-05.2005
VAUXHALLAstra MK IV 1.8 16V[Z18XE]09.2002-08.2005
VAUXHALLAstra MK IV 1.8 16V[Z18XE]09.2002-05.2005
VAUXHALLAstra MK IV 1.8 16V[Z18XE]09.2002-
VAUXHALLAstra MK V 1.6[Z16XEP]03.2004-
VAUXHALLAstra MK V 1.6[Z16XEP]08.2004-
VAUXHALLAstra MK V 1.6[Z16XEP]02.2005-11.2010
VAUXHALLAstra MK V 1.8[Z18XE]03.2004-
VAUXHALLAstra MK V 1.8[Z18XE]10.2004-
VAUXHALLAstravan Mk IV 1.6[Z16XEP]10.2004-12.2005
VAUXHALLAstravan Mk IV 1.6[Z16XE]07.2000-08.2005
VAUXHALLCombo 1.6 16V CNG[Z16YNG]04.2005-
VAUXHALLCombo 1.6 16V CNG[Z16YNG]06.2006-
VAUXHALLCombo MK II 1.4 16V[Z14XE]10.2001-05.2007
VAUXHALLCombo Tour Mk II 1.6 CNG[Z16YNG]04.2005-02.2012
VAUXHALLCombo Tour Mk II 1.6 CNG[Z16YNG]06.2006-09.2010
VAUXHALLCorsa B 1.2 i[C12NZ]03.1993-09.2000
VAUXHALLCorsa B 1.2 i[X12SZ]03.1993-09.2000
VAUXHALLCorsa Mk III 1.0 12V[Z10XE]09.2000-
VAUXHALLCorsa MK III 1.2 16V[Z12XE]09.2000-
VAUXHALLCorsa MK III 1.2 16V[Z12XE]08.2001-
VAUXHALLCorsa Mk III 1.4 16V[Z14XE]09.2000-
VAUXHALLCorsa MK III 1.8 16V[Z18XE]09.2000-
VAUXHALLCorsavan 1.4 i[C14NZ]01.1994-09.2000
VAUXHALLCorsavan Mk II 1.2[Z12XEP]07.2004-12.2005
VAUXHALLCorsavan MK II 1.2 16V[Z12XEP]07.2004-11.2006
VAUXHALLCorsavan MK III 1.2 16V[A12XEL]07.2006-
VAUXHALLCorsavan MK III 1.2 16V[Z12XE]09.2000-06.2006
VAUXHALLCorsavan MK III 1.2 16V[Z12XE]08.2001-06.2006
VAUXHALLMeriva A 1.6 i[Z16SE]05.2003-06.2010
VAUXHALLMeriva A 1.6 i 16V[Z16XE]05.2003-09.2005
VAUXHALLMokka 1.4[A14NET]04.2013-
VAUXHALLTigra 1.8[Z18XE]06.2004-08.2009
VAUXHALLVectra 1.8[Z18XEL]04.2002-
VAUXHALLVectra 1.8 16V[Z18XE]04.2002-
VAUXHALLVectra 1.8 16V GTS[Z18XE]04.2002-
VAUXHALLVectra 1.8 i 16V[Z18XE]04.2002-
VAUXHALLVectra 1.8 i 16V GTS[Z18XE]08.2002-
VAUXHALLVectra Mk II 1.8[Z18XEL]04.2002-07.2008
VAUXHALLZafira 1.8 16V[Z18XE]09.2000-
VAUXHALLZafira Mk II 1.6[Z16XEP]07.2005-
