S1225S


Code: S1225S

Category: Starters

Manufacturer: DELCO

Supplier: As-pl

: 8200889

STANDARD LINE

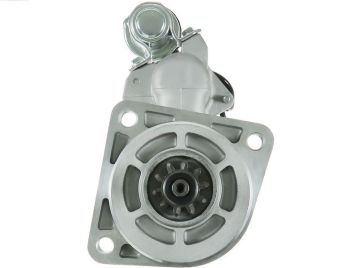

Brand new AS-PL Starter motor



Size a: 98.00 mm

Size b: 25.00 mm

C.1: 11.00 mm

C.2: 11.00 mm

C.3: 11.00 mm

L.1: 305.00 mm

No./teeth: 10

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 89.00 mm

O.2: 127.00 mm

O.3: 89.00 mm

Power: 3.30 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
UD17274SAs-pl
8200854 DELCO
8200889 DELCO
201-29122Dixie


Usage

BrandModelTypeYearNote
Agrale5075[D229-4]01.2012-12.2014
Agrale5085[D229-4]01.2012-12.2014
