S1290S


Code: S1290S

Category: Starters

Manufacturer: DELCO

Supplier: As-pl

: 1998352

STANDARD LINE

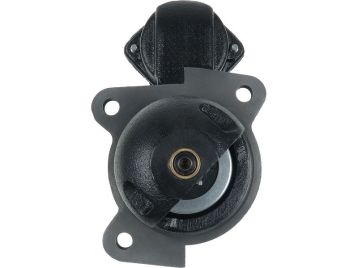

Brand new AS-PL Starter motor



Size a: 88.50 mm

Size b: 47.00 mm

C.1: 11.00 mm

C.2: 11.00 mm

C.3: 11.00 mm

L.1: 346.00 mm

No./teeth: 9

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 90.00 mm

O.2: 90.00 mm

O.3: 127.00 mm

Power: 2.50 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
UD102948SAs-pl
10461615DELCO
1107522 DELCO
1107546 DELCO
1107578 DELCO
1108665 DELCO
1108675 DELCO
1109145 DELCO
12301338 DELCO
1998352 DELCO
201-27112Dixie
S-1088Dixie
TS-1088Dixie
410-12267J&n
AR11161 John Deere
AR11305 John Deere
AR1161John Deere
AR60085John Deere
AT15335 John Deere
SE501432John Deere
SE501433John Deere
TY1456 John Deere
TY26007 John Deere
TY26008John Deere
TY6622John Deere
TY6694 John Deere
TY6722John Deere
4393Lester
140-27110Robert's
4393NWai / Transpo


Usage

BrandModelTypeYearNote
InternationalUD-166[D-166]01.1960-12.1961
InternationalUD-188[D-188]01.1963-12.1964
JOHN DEERE105[341]01.1961-12.1969
JOHN DEERE3020 3.9[4-241]01.1969-12.1972
JOHN DEERE4000[360]01.1969-12.1972
JOHN DEERE4010[302]01.1960-12.1961
JOHN DEERE4010[302]01.1962-12.1962
JOHN DEERE4020[341]01.1963-12.1968
JOHN DEERE4020[360]01.1969-12.1972
JOHN DEERE4020[362]01.1964-12.1972
JOHN DEERE51001.1977-12.1986
JOHN DEERE7700 5.9[6-362]01.1970-12.1978
JOHN DEERE95[HD-248D]01.1959-12.1969
WhiteVarious Models[6-200]01.1968-12.1968
