S3150S


Code: S3150S

Category: Starters

Manufacturer: Valeo

Supplier: As-pl

: D7GS17

STANDARD LINE

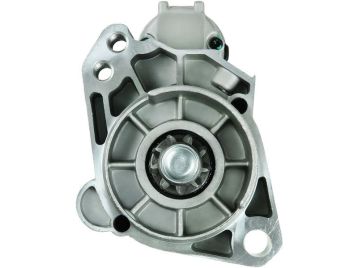

Brand new AS-PL Starter motor



Size a: 76.00 mm

Size b: 23.00 mm

C.1: 13.00 mm

C.2: M10x1.5 mm

C.3: M10x1.5 mm

L.1: 209.00 mm

No./teeth: 9

No./mount. holes: 3

No./mount. holes with thread: 2

O.1: 114.00 mm

O.2: 16.00 mm

O.3: 121.00 mm

Power: 1.70 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
STRS4573EFFE
ANM16106XAndel
S3150S As-pl
UD12706SAs-pl
AEY1749Autoelectro
115744Cargo
CST15184Casco
CST15184ASCasco
CST15184ESCasco
CST15184GSCasco
CST15184OSCasco
CST15184RSCasco
3134Cevam
DRS3886DELCO
DS4996DELCO
S-6557Dixie
EAA-123028Eaa
12155Eai
STR00109Electrolog
STR00109AElectrolog
25-3316Elstock
220969Era
SG1139Ghibaudi
STV4717Krauf
254154VKuhner
331450Logistik
LRS01749Lucas
LRS1749Lucas
5015867Meat & Doria
88214475Powermax
300.572.093Psh
6015184Sando
S12VA0445Sidat
S12VA0445A2Sidat
MAV171840SIOM
STX201392Stardax
458182 Valeo
D7GS17 Valeo
D7GS7 Valeo
D7GSP7Valeo
077911023JVw
077911023JXVw
077911023KVw
077911023KXVw
77911023KVw
77911023KXVw
17888RWai / Transpo
91-20-3545Wilson
VAL438167Woodauto


Usage

BrandModelTypeYearNote
AUDIA8 3.7 Quattro[BFL]10.2002-05.2006
AUDIA8 4.2 FSi Quattro[BVJ]06.2006-07.2010
AUDIA8 4.2 Quattro[BFM]10.2002-07.2010
VWTouareg 4.2 V8[AXQ]12.2002-
VWTouareg 4.2 V8[BHX]12.2002-
VWTouareg 5.0 TDi[AYH]10.2002-
VWTouareg 5.0 TDi[BLE]10.2002-
VWTouareg 5.0 TDi[BWF]10.2002-
