  3. S6006



S6006


Code: S6006

Category: Starters

Manufacturer: Denso

Supplier: As-pl

: 281001442

STANDARD LINE

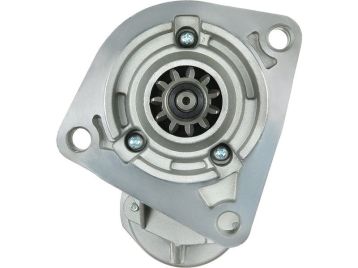

Brand new AS-PL Starter motor



Size a: 100.00 mm

Size b: 27.00 mm

C.1: 13.50 mm

C.2: 13.50 mm

C.3: 13.50 mm

L.1: 296.00 mm

No./teeth: 11

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 105.00 mm

O.2: 138.00 mm

O.3: 119.00 mm

Power: 4.50 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
CST40609ASCasco
028000-9140 Denso
028000-9141Denso
028000-9142Denso
STR6851Electrolog
EH700 Hino
254462Kuhner
20432906BNReal
6040609Sando
0330-402-0010Sawafuji
0330-402-0011Sawafuji
0330-402-0012Sawafuji
0330-402-0310Sawafuji
0330-402-0311Sawafuji
0330-402-0320Sawafuji
0350-552-0061Sawafuji
28100-1090Toyota
28100-1090BToyota
28100-1090CToyota
28100-1442 Toyota
28100-1443Toyota
STR70273Woodauto


Usage

BrandModelTypeYearNote
HINOVarious Models01.1984-
