S6102
Code: S6102
Category: Starters
Manufacturer: Denso
Supplier: As-pl
: 228000-5730
STANDARD LINE

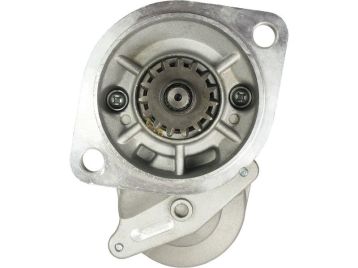

Brand new AS-PL Starter motor
Size a: 95.00 mm
Size b: 20.00 mm
C.1: 13.50 mm
C.2: 13.50 mm
L.1: 220.00 mm
No./teeth: 15
No./teeth (fits into): 15
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 120.00 mm
Power: 3.00 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 03101-3071 | Poongsung |
Usage
| Brand | Model | Type | Year | Note |
| YANMAR | YM6000 | |||
| YANMAR | YM7000 |
