  3. S6170



S6170


Code: S6170

Category: Starters

Manufacturer: Denso

Supplier: As-pl

: 428000-2140

STANDARD LINE

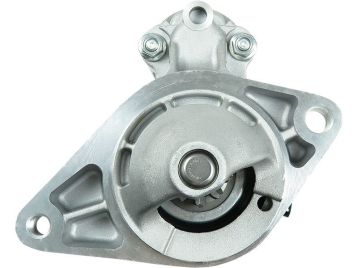

Brand new AS-PL Starter motor



Size a: 74.00 mm

Size b: 11.50 mm

C.1: 10.50 mm

C.2: M10x1.25 mm

L.1: 202.00 mm

No./teeth: 9

No./mount. holes: 2

No./mount. holes with thread: 1

O.1: 129.00 mm

Power: 1.20 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
S6170 As-pl
UD12045SAs-pl
428000-2140 Denso
28100-23060Toyota


Usage

BrandModelTypeYearNote
TOYOTAYaris 1.301.2006-12.2011
