S6302S


Code: S6302S

Category: Starters

Manufacturer: Denso

Supplier: As-pl

: 438000-0473

STANDARD LINE

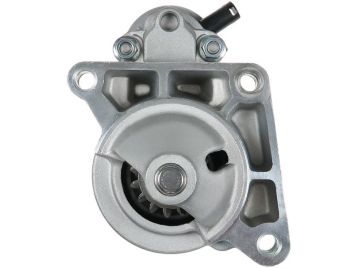

Brand new AS-PL Starter motor



Size a: 70.00 mm

Size b: 1.00 mm

C.1: 8.50 mm

C.2: 8.50 mm

C.3: 8.50 mm

L.1: 212.00 mm

No./teeth: 15

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 75.00 mm

O.2: 113.00 mm

O.3: 75.00 mm

Power: 1.40 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
UD20509SAs-pl
UD20548SAs-pl
12417645979Bmw
12417645980Bmw
12418570845Bmw
7645979Bmw
7645980Bmw
116371Cargo
CST40554ASCasco
CST40554GSCasco
3284Cevam
DRS1016DELCO
260540-0140Denso
438000-0470 Denso
438000-0471 Denso
438000-0472Denso
438000-0473 Denso
438000-0474 Denso
438000-0475Denso
438000-0476Denso
DSN1479Denso
S-80768Dixie
STR6742Electrolog
25-5094Elstock
220975AEra
11090343Eurotec
STN0470Krauf
255885Kuhner
255885DKuhner
255885RKuhner
LRS03931Lucas
LRS3931Lucas
5040888Meat & Doria
210.560.153.050Psh
210.560.153.260Psh
210.560.153.261Psh
20432455BNReal
20432455OEReal
STM1402Rollco
6040554.0Sando
6040554.1Sando
S12DE0846Sidat
STX210193Stardax
30486NWai / Transpo
STR70505Woodauto


Usage

BrandModelTypeYearNote
BMW216 1.5 i(F45)[B38A15A]02.2015-02.2018AT
BMW216 1.5 i(F46)[B38A15A]09.2014-02.2018AT
BMW218 1.5 i(F45)[B38A15A]07.2014-AT
BMW218 1.5 i(F46)[B38A15A]03.2015-AT
BMW218 1.5 i(F46)[B38A15A]04.2017-
BMW220 2.0 i(F45)[B48A20A]03.2014-AT
BMW220 2.0 i(F45)[B48A20F]03.2014-AT
BMW220 2.0 i(F46)[B48A20A]03.2015-AT
BMW225 2.0 i(F45)[B48A20B]11.2013-AT
BMW225 2.0 i xDrive(F45)[B48A20B]03.2014-AT
BMWX1 1.5 sDrive 18 i(F48)[B38A15A]11.2014-05.2017AT
BMWX1 1.5 sDrive 18 i(F48)[B38A15A]07.2017-AT
BMWX1 2.0 sDrive 20 i(F48)[B48A20A]07.2015-AT
BMWX1 2.0 sDrive 20 i(F48)[B48A20F]07.2015-AT
BMWX1 2.0 xDrive 20 i(F48)[B48A20A]07.2015-AT
BMWX1 2.0 xDrive 20 i(F48)[B48A20B]07.2015-AT
BMWX1 2.0 xDrive 20 i(F48)[B48A20F]07.2015-AT
BMWX1 2.0 xDrive 25 i(F48)[B46A20B]11.2014-AT
BMWX1 2.0 xDrive 25 i(F48)[B48A20A]11.2014-AT
BMWX1 2.0 xDrive 25 i(F48)[B48A20B]11.2014-AT
