  2. S6306S



S6306S


Code: S6306S
Category: Starters
Manufacturer: Denso
Supplier: As-pl
: 438000-1530
STANDARD LINE

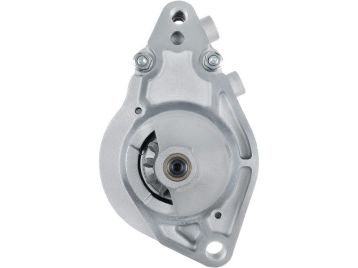

Brand new AS-PL Starter motor


Size a: 62.00 mm
Size b: 34.00 mm
C.1: M10x1.5 mm
C.2: 11.00 mm
L.1: 215.00 mm
No./teeth: 11
No./mount. holes: 2
No./mount. holes with thread: 1
O.1: 142.00 mm
Power: 1.70 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
UD20558SAs-pl
AEY3966Autoelectro
CST40446Casco
CST40446ASCasco
CST40446ESCasco
CST40446GSCasco
CST40446OSCasco
CST40446RSCasco
3259Cevam
DRS1139DELCO
DS2249DELCO
438000-1530Denso
438000-1531Denso
DSN1410 Denso
25-5128Elstock
C2D36864Jaguar
FW93-11001-ABJaguar
FW93-11001-ACJaguar
GX73-11001-EBJaguar
GX73-11001-ECJaguar
T2H3246Jaguar
STN1532Krauf
255593DKuhner
LRS03966Lucas
LRS3966Lucas
840.512.113Psh
20432644Real
16432-OSWai / Transpo
DENDSN1410Woodauto


Usage

BrandModelTypeYearNote
JAGUARF-Pace 3.0 AWD[306PS]09.2015-
JAGUARF-Type 3.0[306PS]10.2012-
JAGUARF-Type 3.0[306PS]10.2013-
JAGUARF-Type 3.0 S[306PS]10.2012-
JAGUARF-Type 3.0 S[306PS]10.2013-
JAGUARF-Type 3.0 S AWD[306PS]12.2014-
JAGUARF-Type 5.0 R[508PS]10.2013-
JAGUARF-Type 5.0 R AWD[508PS]12.2014-
JAGUARF-Type 5.0 S[508PS]10.2012-
JAGUARF-Type 5.0 SVR[508PS]12.2015-
JAGUARXE 3.0 S[306PS]03.2015-
JAGUARXF 3.0[306PS]05.2015-
JAGUARXF 3.0 AWD[306PS]07.2015-
JAGUARXJ 3.0[306PS]03.2012-
JAGUARXJ 3.0 AWD[306PS]10.2012-
JAGUARXJ 5.0 V8[508PS]10.2009-
JAGUARXJ 5.0 V8[508PS]06.2013-
