S6314S

Code: S6314S

---

Category: Starters

---

Manufacturer: Denso

---

Supplier: As-pl

---

: 428000-3070

---

STANDARD LINE

---

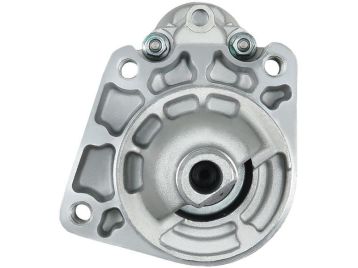

Brand new AS-PL Starter motor

---

Size a: 82.00 mm

---

Size b: 8.00 mm

---

C.1: M10x1.5 mm

---

C.2: M10x1.5 mm

---

C.3: M10x1.5 mm

---

L.1: 237.00 mm

---

No./teeth: 10

---

No./mount. holes: 3

---

No./mount. holes with thread: 3

---

O.1: 113.00 mm

---

O.2: 71.00 mm

---

O.3: 67.50 mm

---

Power: 1.10 kW

---

Rotation: CW

---

Voltage: 12 v

---
