S6487S
Code: S6487S
Category: Starters
Manufacturer: Denso
Supplier: As-pl
: 428000-8110
STANDARD LINE

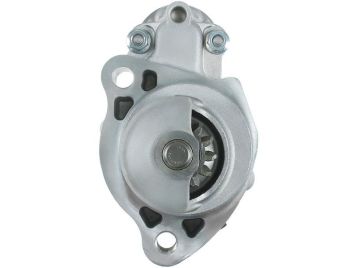

Brand new AS-PL Starter motor
Size a: 70.00 mm
Size b: 33.00 mm
C.1: 11.00 mm
C.2: M12x1.75 mm
L.1: 215.00 mm
No./teeth: 13
No./mount. holes: 2
No./mount. holes with thread: 1
O.1: 91.00 mm
Power: 1.50 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD100729S | As-pl | |
| 9913 | Cevam | |
| 428000-8110 | Denso | |
| 25-5120 | Elstock | |
| PYDU4 | Honda | |
| STN2711 | Krauf | |
| LRS03958 | Lucas | |
| LRS3958 | Lucas | |
| 88214942 | Powermax | |
| 120.554.132.058 | Psh |
Usage
| Brand | Model | Type | Year | Note |
| HONDA | CIVIC IX (FK) 1.4 i-VTEC (FK1) | L13Z4 | 02.2012-12.2016 | |
| HONDA | JAZZ III (GE_, GG_, GP_, ZA_) 1.2 (GG1) | L12B1 | 07.2008- | |
| HONDA | JAZZ III (GE_, GG_, GP_, ZA_) 1.2 (GG1) | L12B2 | 07.2008- | |
| HONDA | JAZZ III (GE_, GG_, GP_, ZA_) 1.3 i (GE6, GG3, GG6 | L13A | 07.2008- | |
| HONDA | JAZZ III (GE_, GG_, GP_, ZA_) 1.3 i (GE6, GG3, GG6 | L13Z1 | 07.2008- | |
| HONDA | JAZZ III (GE_, GG_, GP_, ZA_) 1.3 i (GE6, GG3, GG6 | L13Z2 | 07.2008- | |
| HONDA | JAZZ III (GE_, GG_, GP_, ZA_) 1.4 | L13Z1 | 11.2008- |
