S6536S
Code: S6536S
Category: Starters
Manufacturer: Denso
Supplier: As-pl
: 428080-3320
STANDARD LINE

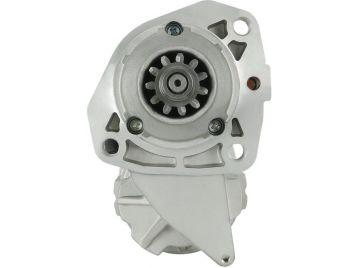

Brand new AS-PL Starter motor
Size a: 88.10 mm
Size b: 51.00 mm
C.1: 12.00 mm
C.2: 12.00 mm
C.3: 12.00 mm
L.1: 318.00 mm
No./teeth: 11
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 90.00 mm
O.2: 90.00 mm
O.3: 128.00 mm
Power: 5.00 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | ||||||||||||||||||||||||||||
| PRSE150 | 3EFFE | ||||||||||||||||||||||||||||
| STRE150 | 3EFFE | ||||||||||||||||||||||||||||
| S6536S | As-pl | ||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
| UD100740S | As-pl | ||||||||||||||||||||||||||||
| SDN370 | Autoteam | ||||||||||||||||||||||||||||
| SDN370A | Autoteam | ||||||||||||||||||||||||||||
| CST40370AS | Casco | ||||||||||||||||||||||||||||
| CST40370GS | Casco | ||||||||||||||||||||||||||||
| 428000-3320 | Denso | ||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
| 428080-3320 | Denso | ||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
| DSN2022 | Denso | ||||||||||||||||||||||||||||
| TG428000-3320 | Denso | ||||||||||||||||||||||||||||
| TG428080-3320 | Denso | ||||||||||||||||||||||||||||
| 107199 | Farcom | ||||||||||||||||||||||||||||
| 3123665 | Henkel Parts | ||||||||||||||||||||||||||||
| RE520634 | John Deere | ||||||||||||||||||||||||||||
| STN3320 | Krauf | ||||||||||||||||||||||||||||
| 255250 | Kuhner | ||||||||||||||||||||||||||||
| 255250D | Kuhner | ||||||||||||||||||||||||||||
| 630.542.113.050 | Psh | ||||||||||||||||||||||||||||
| 630.542.113.260 | Psh | ||||||||||||||||||||||||||||
| 20432073BN | Real | ||||||||||||||||||||||||||||
| 20432073OE | Real | ||||||||||||||||||||||||||||
| 190-50107 | Robert's | ||||||||||||||||||||||||||||
| 6040370.0 | Sando | ||||||||||||||||||||||||||||
| 6040370.1 | Sando | ||||||||||||||||||||||||||||
| 19851N | Wai / Transpo | ||||||||||||||||||||||||||||
| WG1920146 | Wilmink Group | ||||||||||||||||||||||||||||
| 91-29-5831 | Wilson | ||||||||||||||||||||||||||||
| STR70449 | Woodauto | ||||||||||||||||||||||||||||
| WOOSTR70449 | Woodauto | ||||||||||||||||||||||||||||
Usage
| Brand | Model | Type | Year | Note |
| JOHN DEERE | 344J 4.5 | [4045] | 01.2006-12.2014 | |
| JOHN DEERE | 3520 9.0 | [6090] | 01.2012-12.2018 | |
| JOHN DEERE | 3522 9.0 | [6090] | 01.2015-12.2018 | |
| JOHN DEERE | 450J 4.5 | [4045] | 01.2004-12.2009 | |
| JOHN DEERE | 4930 9.0 | [6090] | 01.2006-12.2012 | |
| JOHN DEERE | 4940 9.0 | [6090] | 01.2011-12.2015 | |
| JOHN DEERE | 550J 4.5 | [4045] | 01.2004-12.2009 | |
| JOHN DEERE | 650J 4.5 | [4045] | 01.2004-12.2009 | |
| JOHN DEERE | 670G 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 670GP 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 672G 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 672GP 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 7180 9.0 | [6090] | 01.2013-12.2016 | |
| JOHN DEERE | 7660 9.0 | [6090] | 01.2010-12.2011 | |
| JOHN DEERE | 770G 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 770GP 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 772G 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 772GP 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 8100 9.0 | [6090] | 01.2015-12.2019 | |
| JOHN DEERE | 8130 9.0 | [6090] | 01.2006-12.2009 | |
| JOHN DEERE | 8200 9.0 | [6090] | 01.2015-12.2019 | |
| JOHN DEERE | 8225R 9.0 | [6090] | 01.2009-12.2010 | |
| JOHN DEERE | 8230 9.0 | [6090] | 01.2006-12.2009 | |
| JOHN DEERE | 8230T 9.0 | [6090] | 01.2006-12.2009 | |
| JOHN DEERE | 8245R 9.0 | [6090] | 01.2009-12.2010 | |
| JOHN DEERE | 8245R 9.0 | [6090] | 01.2014-12.2018 | |
| JOHN DEERE | 8260R 9.0 | [6090] | 01.2011-12.2013 | |
| JOHN DEERE | 8270R 9.0 | [6090] | 01.2009-12.2010 | |
| JOHN DEERE | 8270R 9.0 | [6090] | 01.2014-12.2018 | |
| JOHN DEERE | 8285R 9.0 | [6090] | 01.2011-12.2013 | |
| JOHN DEERE | 8295R 9.0 | [6090] | 01.2009-12.2010 | |
| JOHN DEERE | 8295R 9.0 | [6090] | 01.2014-12.2018 | |
| JOHN DEERE | 8295RT 9.0 | [6090] | 01.2009-12.2010 | |
| JOHN DEERE | 8310R 9.0 | [6090] | 01.2011-12.2014 | |
| JOHN DEERE | 8310RT 9.0 | [6090] | 01.2011-12.2014 | |
| JOHN DEERE | 8320R 9.0 | [6090] | 01.2009-12.2010 | |
| JOHN DEERE | 8320RT 9.0 | [6090] | 01.2009-12.2010 | |
| JOHN DEERE | 8330 9.0 | [6090] | 01.2006-12.2009 | |
| JOHN DEERE | 8330T 9.0 | [6090] | 01.2006-12.2009 | |
| JOHN DEERE | 8335R 9.0 | [6090] | 01.2011-12.2013 | |
| JOHN DEERE | 8335RT 9.0 | [6090] | 01.2011-12.2013 | |
| JOHN DEERE | 8345R 9.0 | [6090] | 01.2009-12.2010 | |
| JOHN DEERE | 8345R 9.0 | [6090] | 01.2014-12.2018 | |
| JOHN DEERE | 8345RT 9.0 | [6090] | 01.2009-12.2010 | |
| JOHN DEERE | 8345RT 9.0 | [6090] | 01.2014-12.2018 | |
| JOHN DEERE | 8360R 9.0 | [6090] | 01.2011-12.2013 | |
| JOHN DEERE | 8360RT 9.0 | [6090] | 01.2011-12.2013 | |
| JOHN DEERE | 8370R 9.0 | [6090] | 01.2014-12.2018 | |
| JOHN DEERE | 8370RT 9.0 | [6090] | 01.2014-12.2018 | |
| JOHN DEERE | 8400R 9.0 | [6090] | 01.2016-12.2018 | |
| JOHN DEERE | 8430 9.0 | [6090] | 01.2006-12.2009 | |
| JOHN DEERE | 8430T 9.0 | [6090] | 01.2006-12.2009 | |
| JOHN DEERE | 8530 9.0 | [6090] | 01.2006-12.2009 | |
| JOHN DEERE | 870G 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 870GP 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 872G 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 872GP 9.0 | [6090] | 01.2009-12.2018 | |
| JOHN DEERE | 9230 9.0 | [6090] | 01.2007-12.2011 | |
| JOHN DEERE | 9560 STS 8.1 | [6081] | 01.2004-12.2008 | |
| JOHN DEERE | 9580i WTS 9.0 | [6090] | 01.2007-12.2009 | |
| JOHN DEERE | 9640 WTS 9.0 | [6090] | 01.2005-12.2009 | |
| JOHN DEERE | 9640i WTS 9.0 | [6090] | 01.2005-12.2009 | |
| JOHN DEERE | 9660 STS 8.1 | [6081] | 01.2003-12.2008 | |
| JOHN DEERE | 9660 STS 9.0 | [6090] | 01.2003-12.2008 | |
| JOHN DEERE | 9660 WTS 9.0 | [6090] | 01.2005-12.2009 | |
| JOHN DEERE | 9660i WTS 9.0 | [6090] | 01.2005-12.2009 | |
| JOHN DEERE | 9670 STS 9.0 | [6090] | 01.2007-12.2012 | |
| JOHN DEERE | 9680 WTS 9.0 | [6090] | 01.2005-12.2009 | |
| JOHN DEERE | 9680i WTS 9.0 | [6090] | 01.2005-12.2009 | |
| JOHN DEERE | 9760 STS 8.1 | [6081] | 01.2003-12.2008 | |
| JOHN DEERE | 9760 STS 9.0 | [6090] | 01.2003-12.2008 | |
| JOHN DEERE | 9770 STS 9.0 | [6090] | 01.2007-12.2012 | |
| JOHN DEERE | 9780 CTS 9.0 | [6090] | 01.2005-12.2009 | |
| JOHN DEERE | 9780i CTS 9.0 | [6090] | 01.2005-12.2009 | |
| JOHN DEERE | C670 9.0 | [6090] | 01.2009-12.2012 | |
| JOHN DEERE | CH570 9.0 | [6090] | 01.2015-12.2018 | |
| JOHN DEERE | CH670 9.0 | [6090] | 01.2016-12.2018 | |
| JOHN DEERE | R4038 9.0 | [6090] | 01.2014-12.2018 | |
| JOHN DEERE | R4045 9.0 | [6090] | 01.2014-12.2019 | |
| JOHN DEERE | R4060 9.0 | [6090] | 01.2018-12.2019 | |
| JOHN DEERE | S560 9.0 | [6090] | 01.2008-12.2019 | |
| JOHN DEERE | S650 9.0 | [6090] | 01.2015-12.2019 | |
| JOHN DEERE | S660 9.0 | [6090] | 01.2012-12.2019 | |
| JOHN DEERE | S670 9.0 | [6090] | 01.2011-12.2019 | |
| JOHN DEERE | S670 HillMaster 9.0 | [6090] | 01.2011-12.2019 | |
| JOHN DEERE | S760 9.0 | [6090] | 01.2018-12.2019 | |
| JOHN DEERE | S770 9.0 | [6090] | 01.2018-12.2019 | |
| JOHN DEERE | T560 9.0 | [6090] | 01.2007-12.2019 | |
| JOHN DEERE | T660 9.0 | [6090] | 01.2007-12.2019 | |
| JOHN DEERE | T670 9.0 | [6090] | 01.2007-12.2019 | |
| JOHN DEERE | W650 9.0 | [6090] | 01.2007-12.2019 | |
| JOHN DEERE | W660 9.0 | [6090] | 01.2007-12.2019 |
