S9046


Code: S9046
Category: Starters
Manufacturer: Magneton
Supplier: As-pl
: 9142805
STANDARD LINE

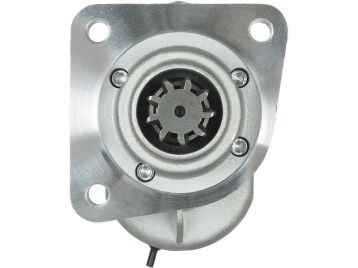

Brand new AS-PL Starter motor


Size a: 88.50 mm
Size b: 48.00 mm
C.1: 11.00 mm
C.2: 11.00 mm
C.3: 11.00 mm
L.1: 235.00 mm
No./teeth: 9
No./teeth (fits into): 9
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 127.00 mm
O.2: 90.00 mm
O.3: 90.00 mm
Power: 2.70 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
STRL2573EFFE
CGB-21130Ainde
S9046 As-pl
AES5170Autoelectro
0001354073 Bosch
0001354080 Bosch
0001359014 Bosch
0001359074 Bosch
0001362063 Bosch
0001362300 Bosch
0001367001 Bosch
0986011130Bosch
0986017280Bosch
111752Cargo
121905A1Case
3055557R92Case
3218675R91Case
3218677R91Case
3228193EXCase
3228193R91Case
3229193EXCase
3229193R91Case
19024257 DELCO
DRS1130DELCO
DRS7280DELCO
25-0208Elstock
25-0232Elstock
25-1118Elstock
220011Era
220176Era
CS503Hc Parts
8EA726151-001Hella
11.130.704 Iskra / Letrika
11.130.889 Iskra / Letrika
AZJ3242 Iskra / Letrika
AZJ3314 Iskra / Letrika
IS0704 Iskra / Letrika
10503Kuhner
LRS00570Lucas
LRS01985Lucas
LRS01988Lucas
LRS1985Lucas
LRS1988Lucas
LRS570Lucas
MSN206Magneti Marelli
9142805 Magneton
MS 272Mahle
MS 352Mahle
120-504Pic
120-504APic
120-504BPic
120-504CPic
120-504GPic
PTC-4033Power Truck
20513058Prestolite
S12BH0668A2Sidat
MAV121910SIOM
MAV122330SIOM
STX200747Stardax
436077Valeo
17228NWai / Transpo
STR22004Woodauto


Usage

BrandModelTypeYearNote
CASEIH 1046 A 5.9[D-358]04.1973-09.1977
CASEIH 1246 A 5.9[DT-358]02.1974-08.1979
CASEIH 125 B2 4.0[D239]06.1973-12.1986
CASEIH 22110.1972-12.1974
CASEIH 325 5.1[D-239]04.1973-12.1985
CASEIH 3654 4.0[D-239]04.1973-12.1978
CASEIH 3964 Yumbo 5.9[D-358]07.1973-12.1986
CASEIH 3965 Yumbo 5.9[D-358]03.1971-12.1986
CASEIH 3980 Yumbo 5.9[D-358]03.1972-12.1986
CASEIH 400-Serie 431 3.9[D-239]01.1986-06.1986
CASEIH 400-Serie 431 5.1[D-310]01.1986-06.1986
CASEIH 431 4.0[D239]02.1973-12.1985
CASEIH 431 5.1[D-310]04.1973-12.1985
CASEIH 500-Serie 531 2.5[D-310]01.1986-06.1986
CASEIH 500-Serie 531 5.1[D-310]04.1973-12.1985
CASEIH 500-Serie 531 5.9[D-358]04.1973-12.1985
CASEIH 500-Serie 531 5.9[D-358]01.1986-06.1986
CASEIH 554 A02.1974-02.1975
CASEIH 600-Serie 644 3.4[D-206]01.1986-06.1986
CASEIH 644 3.4[D-206]01.1974-12.1985
CASEIH 644 A 3.4[D-206]01.1974-12.1985
CASEIH 724A04.1973-01.1974
CASEIH 744 4.0[D239]02.1974-06.1984
CASEIH 744 A 4.0[D239]02.1974-06.1984
CASEIH 744A02.1974-06.1984
CASEIH 800-Serie 321 3.9[D-239]01.1986-06.1986
CASEIH 800-Serie 844 S/SA 4.4[D-268]01.1986-12.1990
CASEIH 800-Serie 844A 4.3[D-246]01.1986-12.1990
CASEIH 844 A 4.0[D-246]01.1974-12.1985
CASEIH 844 S, SA 4.0[D-268]02.1975-12.1985
CASEIH 946 A 5.1[D-310]04.1973-09.1977
CASEIH H 30 B 4.0[D-239]01.1976-12.1985
CASEIH H 60 B 5.9[D-358]10.1971-06.1984
CASEIH H-Serie H 50 B 5.1[D-310]04.1973-12.1979
CASEIH H30B Payloader[D239]01.1975-01.1976
CASEIH H50B Payloader04.1973-01.1979
CASEIH H60B Payloader10.1971-06.1984
CASEIH TD 8B 4.0[D-239]04.1973-12.1978
CASEIH TD8B Crawler Tractor01.1969-01.1976
