  3. S9048



S9048


Code: S9048

Category: Starters

Manufacturer: Magneton

Supplier: As-pl

: 9142743

STANDARD LINE

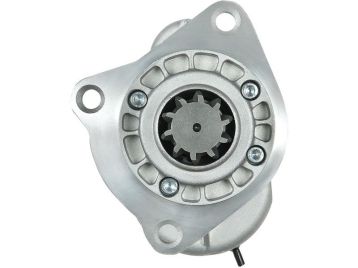

Brand new AS-PL Starter motor



Size a: 88.50 mm

Size b: 30.00 mm

C.1: 11.00 mm

C.2: 11.00 mm

C.3: 11.00 mm

L.1: 236.00 mm

No./teeth: 10

No./teeth (fits into): 10

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 127.00 mm

O.2: 89.00 mm

O.3: 89.00 mm

Power: 2.70 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
ALTS6983EFFE
STRL0273EFFE
STRL8253EFFE
CGB-23287Ainde
AES2132Autoelectro
AES9169Autoelectro
0001367040 Bosch
110565Cargo
111013Cargo
111346Cargo
CST21138GSCasco
234987A1Case
3116683R91Case
323319A1Case
388187A1Case
388187A2Case
DRS3287DELCO
538502 Ducellier
EAA-111286Eaa
806.004.000.0Elmot
806004000.0Elmot
863.000.4Elmot
863.000.5 Elmot
863000.4Elmot
906.011.000.0Elmot
R11-04Elmot
R11.04Elmot
R11G Elmot
25-0041Elstock
25-1022Elstock
25-1030Elstock
25-1410Elstock
25-2228Elstock
220739Era
CS1033Hc Parts
CS201Hc Parts
CS994Hc Parts
8EA726027-001Hella
8EA737250-001Hella
S12-73Hitachi
S13-73 Hitachi
S13-73BHitachi
S13-74 Hitachi
11.130.076 Iskra / Letrika
11.130.200 Iskra / Letrika
11.130.373 Iskra / Letrika
11.130.411 Iskra / Letrika
11.130.509 Iskra / Letrika
11.130.629 Iskra / Letrika
11.130.872 Iskra / Letrika
11.130.904 Iskra / Letrika
AZJ0405 Iskra / Letrika
AZJ3117 Iskra / Letrika
AZJ3144 Iskra / Letrika
AZJ3203 Iskra / Letrika
AZJ3305 Iskra / Letrika
AZJ3536 Iskra / Letrika
AZJ3590Iskra / Letrika
AZJ3598 Iskra / Letrika
26358 Jcb
26358A Jcb
27519 Jcb
714-14300Jcb
714-29500Jcb
714-40005Jcb
714/29500-RJcb
714/40005Jcb
714/40159Jcb
123708007Jubana
STL0948Krauf
10201LKuhner
10201PKuhner
10994LKuhner
10994PKuhner
3542185M91Landini
3542185M92Landini
3542185M93Landini
3546391M91Landini
26274 Lucas
26274B Lucas
26274E Lucas
26274H Lucas
26320D Lucas
26323 Lucas
26323A Lucas
26345 Lucas
26345A Lucas
26345B Lucas
26345D Lucas
26345ELucas
26366 Lucas
26366A Lucas
26366BLucas
26410 Lucas
26410A Lucas
26410B Lucas
26414 Lucas
26414E Lucas
27510 Lucas
27510BLucas
27510FLucas
27515 Lucas
27515A Lucas
27515BLucas
27515E Lucas
27539 Lucas
27539B Lucas
27539D Lucas
27541 Lucas
27565 Lucas
27568 Lucas
27572 Lucas
27572A Lucas
27572B Lucas
27572D Lucas
27572ELucas
27572FLucas
27578 Lucas
27583 Lucas
27583A Lucas
27583B Lucas
27583D Lucas
27583H Lucas
27583J Lucas
27590 Lucas
27594 Lucas
27594ALucas
27598 Lucas
27599 Lucas
27602 Lucas
27606 Lucas
27608 Lucas
27626ALucas
54265233Lucas
LRS00173Lucas
LRS00232 Lucas
LRS00969 Lucas
LRS173Lucas
LRS232Lucas
LRS969 Lucas
MT68S Magneti Marelli
443115142743Magneton
9142743 Magneton
9144703Magneton
MS 282Mahle
MS 345Mahle
MS 385Mahle
MS 548Mahle
MS 615 OFMahle
1447731Massey Ferguson
1691806R1Massey Ferguson
1860093M2Massey Ferguson
1868285M1Massey Ferguson
1868285M2Massey Ferguson
1868285M3Massey Ferguson
1868285R3Massey Ferguson
1868287TMassey Ferguson
2873006 Massey Ferguson
3516094M1Massey Ferguson
3519400M1Massey Ferguson
3519400M92Massey Ferguson
3539390M91Massey Ferguson
3542185M91Massey Ferguson
3542185M92Massey Ferguson
3546391M91Massey Ferguson
3597372M2Massey Ferguson
3597372R2Massey Ferguson
3763362M91Massey Ferguson
3763362M94Massey Ferguson
3930506R1Massey Ferguson
3930509R1Massey Ferguson
70179544M1Massey Ferguson
706022A1Massey Ferguson
909971R2Massey Ferguson
1447834M91Perkins
1873A054Perkins
1873A055Perkins
2378A029 Perkins
26410RPerkins
26414RPerkins
2873003 Perkins
2873004 Perkins
2873006T Perkins
2873A029 Perkins
2873A031 Perkins
2873B055 Perkins
2873B057 Perkins
2873B072 Perkins
2873B073 Perkins
2873D001 Perkins
2873D002 Perkins
2873D003 Perkins
3181A032 Perkins
20500969Prestolite
66925051 Prestolite
M100R2015SEPrestolite
S5005LPrestolite
20419831OEReal
6005003154Renault
6005021272Renault
6005700081Renault
7700011850Renault
7701031686Renault
6021138Sando
S12LU0292A2Sidat
MAV271220SIOM
MAV3630SIOM
STX200560Stardax
STX200678Stardax
STX200715Stardax
STX210083Stardax
STX210084Stardax
STX210091Stardax
7017954M1Ursus
433316Valeo
D11E137 Valeo
D11E154 Valeo
D11E15HValeo
STR25013Woodauto


Usage

BrandModelTypeYearNote
URSUS1042 3.8[4390]
URSUS1044 3.8[4390]
URSUS4502
URSUS4504 3.8[4390]
URSUS4512 3.8[4390]
URSUS4514 3.8[4390]
URSUS4822
URSUS4824
URSUS5312 3.8[4390]
URSUS5314 3.8[4390]
URSUS5322
URSUS5324
URSUS5712 4.0[4410]
URSUS5714 4.0[4410]
URSUS6012
URSUS6014
URSUS6612
URSUS6614
