S9091ER

Code: S9091ER

---

Category: Starters

---

Manufacturer: Elmot

---

Supplier: As-pl

---

ECONOMY LINE

---

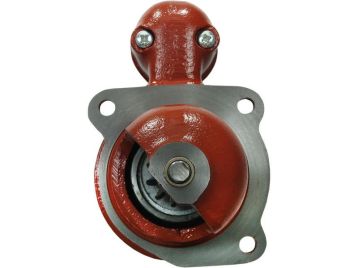

Remanufactured AS-PL Starter motor

---

Size a: 89.00 mm

---

Size b: 46.50 mm

---

C.1: 10.50 mm

---

C.2: 10.50 mm

---

C.3: 10.50 mm

---

L.1: 353.00 mm

---

No./teeth: 11

---

No./teeth (fits into): 10. 11

---

No./mount. holes: 3

---

No./mount. holes with thread: 0

---

O.1: 90.00 mm

---

O.2: 127.00 mm

---

O.3: 90.00 mm

---

Power: 2.90 kW

---

Rotation: CW

---

Voltage: 12 v

---
