S9227


Code: S9227

Category: Starters

Manufacturer: Iskra / Letrika

Supplier: As-pl

: 11.131.727

STANDARD LINE

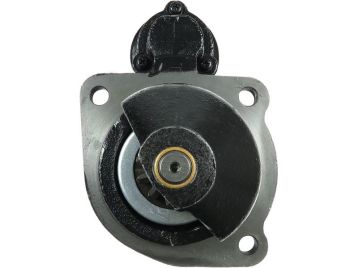

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 47.50 mm

C.1: 11.50 mm

C.2: 11.50 mm

C.3: 11.50 mm

L.1: 321.00 mm

No./teeth: 11

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 90.00 mm

O.2: 127.00 mm

O.3: 90.00 mm

Power: 4.20 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
PRSL8143EFFE
STRL8143EFFE
STRL814L3EFFE
569018D1Agco
836673290Agco
836866817Agco
836873088Agco
836873457Agco
V836866817Agco
V836873457Agco
CGB-23257Ainde
S9227 As-pl
UD02663SAs-pl
0001260025 Bosch
0001260026 Bosch
113570Cargo
CST10049GSCasco
CST21117ASCasco
CST21117GSCasco
47111575Case
84284540Case
8103Cevam
DRS0569DELCO
DS1679DELCO
273-42111Dixie
STR7894Electrolog
STR79247Electrolog
25-4033Elstock
836873290Hesston
11.131.727 Iskra / Letrika
11.132.356 Iskra / Letrika
AZF4190 Iskra / Letrika
AZF4369 Iskra / Letrika
IS0836 Iskra / Letrika
STI3570Krauf
254856Kuhner
254856BKuhner
254856MKuhner
LRS02361Lucas
LRS2361Lucas
72735803Mahle
MS175 Mahle
MS591 Mahle
162000090722New Holland
87693781New Holland
87751000New Holland
88213744Powermax
S5001LPrestolite
800.008.113.010Psh
800.008.113.090Psh
800.008.113.098Psh
800.008.113.211Psh
800.008.113.311Psh
20401940OEReal
20419711BNReal
20419711OEReal
6010049.1Sando
6021117.0Sando
6021117.1Sando
MAV231170SIOM
36208Sparex
83646500Valtra
89732200Valtra
VPF7263Valtra
19992NWai / Transpo
91-23-6582Wilson
MAHMS175Woodauto
STR50592Woodauto
WOOSTR60609Woodauto


Usage

BrandModelTypeYearNote
AgcoEngine[44CTA]
AgcoEngine 4.9[CWA]
AgcoEngine 8.4[84CTA]
CASECS 105 PRO 4.401.2008-
CASECS 110 4.401.2004-
CASECS 12001.2004-
CASECS 130 6.6[620.92]01.1997-12.2003
CASECS 15001.2004-
CASECS 78 4.4[420.81]01.1998-12.2003
CASECS 80 PRO10.2007-
CASECS 85 PRO 4.401.2008-
CASECS 8601.1999-01.2004
CASECS 94[420.83]01.1998-12.2004
CASECS 95 PRO01.2008-
CASECVX 113501.2003-
CASECVX 114501.2003-
CASECVX 115501.2003-
CASECVX 117001.2003-
CASECVX 119001.2003-
CASECVX 119501.2003-
CASECVX 12001.2000-05.2003
CASECVX 13007.2000-05.2003
CASECVX 140 6.6[620.60]01.2007-12.2009
CASECVX 150 6.601.2000-05.2003
CASECVX 160 6.6[620.62]01.2007-12.2009
CASECVX 170 6.6[620.90]01.2000-12.2003
CASECVX 17507.2007-
CASECVX 190 6.601.2007-
CASECVX 19501.2007-
Challenger652C 8.4[CTA]
Challenger660B 8.4[CTA]
Challenger670B 8.4[CTA]
Challenger672C 7.4
Challenger8333 8.4[CTA]
ChallengerMT665D 8.4
ChallengerMT685D 8.4
ChallengerMT745D 8.4[CTA]
ChallengerMT755D 8.4[CTA]
ChallengerMT765D 8.4[CTA]
ChallengerRG1100 8.4
ChallengerRG1300 8.4
ChallengerRG635B 4.9
ChallengerRG645B 7.4
ChallengerRG655B 7.4
ChallengerTG845 8.4[CTA]
ChallengerWR9740 4.9
Crystal TractorORION 16
HesstonWR9735 4.9[CTAT4F]
HesstonWR9740 4.9[CTAT4F]
HesstonWR9760 4.9[CTAT4F]
HesstonWR9770 6.6[CTAT4F]
HesstonWR9860 4.9[CTAT4F]
HesstonWR9870 6.6[CTAT4F]
JCB3200 Xtra 7.4
JCB3230 Xtra 7.4
JCB8280 8.4
JCB8310 8.4
MASSEY FERGUSONMF 32[620DS]03.2008-
MASSEY FERGUSONMF 34[634DSA]04.2008-
MASSEY FERGUSONMF 4292[420DS]06.2009-
MASSEY FERGUSONMF 4297[420DS]06.2009-
MASSEY FERGUSONMF 4299[420DSA]06.2009-
MASSEY FERGUSONMF 4299[420DSA]08.2009-
MASSEY FERGUSONMF 460 XTRA[44DTA]06.2009-
MASSEY FERGUSONMF 470 XTRA[44DTA]06.2009-
MASSEY FERGUSONMF 480 XTRA[44DTA]06.2009-
MASSEY FERGUSONMF 5650[620DS]03.2008-
MCCORMICKTele-Trac 4.4[44-CWA]
PioneiraEngine[420DS]07.2008-
Sampo Rosenlew3065L 4.4[44DT]
Sampo RosenlewSR1046X 4.4[44DT]
Sampo RosenlewSR1066 4.4[44DT]
Sampo RosenlewSR3045C 4.4[44DT]
Sampo RosenlewSR3085L TS 4.4[44DT]
Valtra6200 4.4[44DT]
Valtra6250 4.4[44DT]
Valtra6300 4.4[44DT]
Valtra6350Hi 4.4[44DT]
Valtra6400 4.4[420DWRE]
Valtra6400 4.4[44ET]
Valtra6550 4.4[44ET]
Valtra6850 4.4[44EWI]
Valtra690001.1997-
ValtraA750L[420D]08.2009-
ValtraA85 4WD 4.4[44DTA]
ValtraA85L 4.4[33DTA]
ValtraA85L 4.4[44DT]
ValtraA85N 4.4[33DTA]
ValtraA85N 4.4[44DT]
ValtraA95 4WD 4.4[44DTA]
ValtraA950 4.4[420DS]
ValtraA950 4.4[420DS]03.2009-
ValtraA950 F 3.3[320DS]
ValtraA95L 4.4[33DTA]
ValtraA95L 4.4[44DT]
ValtraA95N 4.4[33DTA]
ValtraA95N 4.4[44DT]
ValtraA990[420DS]08.2009-
ValtraBC4500 6.6[620DSR]
ValtraBC4500 6.6[620DSR]03.2008-
ValtraBH135i 4.4[420DSA]
ValtraBH145 6.6[620DS]03.2008-
ValtraBH165 6.6[620DS]03.2008-
ValtraBH180 6.6[620DS]03.2008-
ValtraBH180 6.6[620DS]03.2010-
ValtraBH185i[620DSA]03.2008-
ValtraBH200 6.6[620DS]
ValtraBH205i[620DSA]07.2008-
ValtraBH210i 6.6[620DS]
ValtraBM100 4.4[420DR]
ValtraBM100 4.4[420DS]03.2008-
ValtraBM110 4.4[420DS]03.2008-
ValtraBM125i 4.4[420DSA]03.2008-
ValtraN101 4.4[44DTA]
ValtraN101 4.4[44DT]
ValtraN101 C 4.4[44DTA]
ValtraN101 H 4.4[44DTA]
ValtraN103[33AWI]
ValtraN103.4 HiTech 4.4[44AWI]
ValtraN103.4 HiTech 5 4.4[44AWI]
ValtraN111 4.4[44DTA]
ValtraN111 4.4[44DT]
ValtraN111 C 4.4[44DTA]
ValtraN111 C 4.4[44EWA]
ValtraN111 E 4.4[44DTA]
ValtraN111 E 4.4[44EWA]
ValtraN111 H 4.4[44DTA]
ValtraN111 H 4.4[44EWA]
ValtraN111 LS 4.4[44DTA]
ValtraN111 LS 4.4[44EWA]
ValtraN113 4.4[44AWI]
ValtraN121 H 4.4[44CWA]
ValtraN121 LS 4.4[44CWA]
ValtraN123 HiTech 3 4.4[44AWI]
ValtraN123 Versu 4.4[49AWI]
ValtraN141 H 4.9[49CWA]
ValtraN141 LS 4.9[49CWA]
ValtraN143 4.9[49AWI]
ValtraN143 HiTech 3 4.9[49AWI]
ValtraN143 Versu 4.9[49AWI]
ValtraN143D 4.9[49AWI]
ValtraN163 4.9[49AWI]
ValtraN163 Versu 4.9[49AWI]
ValtraN163D 4.9[49AWI]
ValtraN82 4.4[44DTA]
ValtraN91 4.4[44DTA]
ValtraN91 4.4[44DT]
ValtraN91C 4.4[44DT]
ValtraN91H 4.4[44DT]
ValtraN92 4.4[44DTA]
ValtraN93 8.4[33AWI]
ValtraS233 8.4[84AWI]
ValtraS260 8.4[645DSBAE]
ValtraS263 8.4[84AWI]
ValtraS280 8.4[84ETA]
ValtraS293 8.4[84AWI]
ValtraS323 8.4[84AWI]
ValtraS353 8.4[84AWI]
ValtraT121 4WD 6.6[66CTA]
ValtraT131 4WD 6.6[66CTA]
ValtraT133 6.6[66AWI]
ValtraT133H 6.6[66AWI]
ValtraT151 4WD 6.6[66CTA]
ValtraT153 6.6[66AWI]
ValtraT153 HiTech 6.6[66AWI]
ValtraT153 Versu 6.6[66AWI]
ValtraT153D 6.6[66AWI]
ValtraT161 4WD 6.6[66CTA]
ValtraT163E 7.4[74AWI]
ValtraT163e Versu 7.4[74AWI]
ValtraT163ED 7.4[74AWI]
ValtraT173 HiTech 7.4[74AWI]
ValtraT183 7.4[74AWI]
ValtraT183 Versu 7.4[74AWI]
ValtraT183D 7.4[74AWI]
ValtraT191 4WD 7.4[74CTA]
ValtraT193 7.4[74AWI]
ValtraT203T203D 7.4[74AWI]
ValtraT213 Versu 7.4[74AWI]
ValtraX120 4.4[420DWRIE]01.1999-
ZETOR3520[7201]01.1995-
ZETOR3540[7201]01.1995-
ZETOR4712 2.5[Z4701]01.1974-12.1977
ZETOR4718 2.5[Z4701]01.1974-12.1977
ZETOR4911 2.6[Z4901]01.1976-12.1980
ZETOR5011 2.6[Z5001]01.1980-12.1984
ZETOR5211 2.6[Z5001]01.1984-12.1990
ZETOR5213
ZETOR5243
ZETOR5245
ZETOR5320 3.5[Z7201]01.1992-
ZETOR5321 3.5[7202]01.1997-
ZETOR5340 3.5[Z7201]01.1992-
ZETOR5341 3.5[7202]01.1997-
ZETOR5511[Z5501]
ZETOR5516[Z5501]
ZETOR5545[Z5501]
ZETOR5611[Z5501]
ZETOR5645[Z5501]
ZETOR5647[Z5501]
ZETOR5711 3.1[Z5501]01.1974-12.1977
ZETOR5718 3.1[Z5501]01.1974-12.1977
ZETOR5745[Z5501]
ZETOR5748[Z5501]
ZETOR59113.4[Z5901]01.1978-12.1980
ZETOR5945 3.4[Z5901]01.1978-12.1980
ZETOR6011 3.4[Z6001]01.1980-12.1984
ZETOR6045 3.4[Z6001]01.1980-12.1984
ZETOR6211 3.4[Z6001]01.1984-12.1990
ZETOR6212 3.4[Z6001]01.1984-12.1990
ZETOR6245 3.4[Z6001]01.1984-12.1990
ZETOR6320 3.9[Z7701]01.1992-
ZETOR6321 3.9[Z7702]01.1977-
ZETOR6340 3.9[Z7701]01.1992-
ZETOR6341 3.9[Z7702]01.1977-
ZETOR6511
ZETOR6518
ZETOR6522
ZETOR6711 3.4[Z6701]01.1974-12.1977
ZETOR6718 3.4[Z6701]01.1974-12.1977
ZETOR6745 3.4[Z6701]01.1974-12.1977
ZETOR6748 3.4[Z6701]01.1974-12.1977
ZETOR6911 3.4[Z6901]01.1978-12.1980
ZETOR6918 3.4[Z6901]01.1978-12.1980
ZETOR6945 3.4[Z6901]01.1978-12.1980
ZETOR7011 3.4[Z7001]01.1980-12.1984
ZETOR7045 3.4[Z7001]01.1980-12.1984
ZETOR7211 3.5[Z7201]01.1984-12.1990
ZETOR7245 3.5[Z7201]01.1984-12.1990
ZETOR7321 3.9[Z7302]01.1997-
ZETOR7340 3.9[Z7301]01.1992-
ZETOR7341 3.9[Z7302]01.1997-
ZETOR7520 4.1[7801]01.1991-
ZETOR7711 3.9[Z7701]01.1986-12.1990
ZETOR7745 3.9[Z7701]01.1986-12.1990
