S9347S

Code: S9347S

Category: Starters

Manufacturer: Mitsuba

Supplier: As-pl

: SM422-09

STANDARD LINE

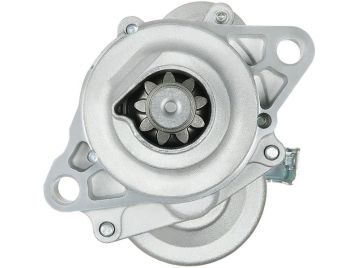

Brand new AS-PL Starter motor

Size a: 75.00 mm

Size b: 34.00 mm

C.1: 11.00 mm

C.2: 11.00 mm

L.1: 206.00 mm

No./teeth: 9

No./mount. holes: 2

No./mount. holes with thread: 0

O.1: 113.00 mm

Power: 1.00 kW

Rotation: CW

Voltage: 12 v

Reference number

Code

Manufacturer

CGB-24061

Ainde

CGB-24062

Ainde

UD20519S

As-pl

9605

Cevam

128000-0280

Denso

ARS0032	DENSO	Alternator repair kits
SRS6063S	DENSO	Alternator repair kits
ARS9057S	DENSO	Alternator repair kits
ARS4010	DENSO	Alternator repair kits
ABE9035(SKF)	DENSO	Bearings
ABE9020	DENSO	Bearings
ABE9035(NACHI)	DENSO	Bearings
ABE9020(NACHI)	DENSO	Bearings
ABE9157(KBC)	DENSO	Bearings
ABE9020(SKF)	DENSO	Bearings
ABE9020(KOYO)	DENSO	Bearings
ABE9035(NTN)	DENSO	Bearings
ABE9020(NTN)	DENSO	Bearings
ABE9195(SKF)	DENSO	Bearings
ABE9035(NSK)	DENSO	Bearings
ABE9020(NSK)	DENSO	Bearings
ABE9195(NSK)	DENSO	Bearings
ABE9035	DENSO	Bearings
ABE9010(SKF)	DENSO	Bearings
ABE9020(FAG)	DENSO	Bearings
ABE9010(NSK)	DENSO	Bearings
ABE9010	DENSO	Bearings
140272	DENSO	Bearings
66-82600	DENSO	Solenoid parts
SP6053S	DENSO	Solenoid parts
SP6007	DENSO	Solenoid parts
SP6010	DENSO	Solenoid parts
66-82751	DENSO	Solenoid parts
SA6004	DENSO	Starter armatures
61-8202	DENSO	Starter armatures
69-8206-1	DENSO	Starter brush holders
SBH6032S	DENSO	Starter brush holders
SB6004	DENSO	Starter brush sets
0.1984.1(IKA)	DENSO	Starter brush sets
SDK6015P	DENSO	Starter drives
SD6039	DENSO	Starter drives
ZEN1215	DENSO	Starter drives
SD6025	DENSO	Starter drives
SDK6004S	DENSO	Starter drives
SGK6005S	DENSO	Starter repair kits
SP6014	DENSO	Starter repair kits
SP6006	DENSO	Starter repair kits
SRS6069S	DENSO	Starter repair kits
SRS6058S	DENSO	Starter repair kits

128000-2190

Denso

SRS5067S	DENSO	Alternator repair kits
ARS0032	DENSO	Alternator repair kits
SRS6077S	DENSO	Alternator repair kits
ZS0002	DENSO	Bearings
ABE9035(NACHI)	DENSO	Bearings
ABE9019	DENSO	Bearings
ABE9019(SKF)	DENSO	Bearings
ABE9019(NACHI)	DENSO	Bearings
ABE9019(NTN)	DENSO	Bearings
ABE9001(NACHI)	DENSO	Bearings
ABE9019(NSK)	DENSO	Bearings
ABE9019(KOYO)	DENSO	Bearings
ABE9001(NTN)	DENSO	Bearings
140079	DENSO	Bearings
ABE9001(NSK)	DENSO	Bearings
ABE9001	DENSO	Bearings
ABE9001(SKF)	DENSO	Bearings
ABE9035(NTN)	DENSO	Bearings
ABE9035(NSK)	DENSO	Bearings
ABE9035(SKF)	DENSO	Bearings
ABE9035	DENSO	Bearings
SP6007	DENSO	Solenoid parts
SP6001	DENSO	Solenoid parts
SP6010	DENSO	Solenoid parts
SP6053S	DENSO	Solenoid parts
66-82600	DENSO	Solenoid parts
66-82751	DENSO	Solenoid parts
0.1984.1(IKA)	DENSO	Starter brush sets
SB6004	DENSO	Starter brush sets
ZEN1215	DENSO	Starter drives
3-788	DENSO	Starter drives
SDK6004S	DENSO	Starter drives
SD6025	DENSO	Starter drives
SD6023P	DENSO	Starter drives
SDK6015P	DENSO	Starter drives
SD6023	DENSO	Starter drives
SRS6069S	DENSO	Starter repair kits
SRS6058S	DENSO	Starter repair kits
SGK6005S	DENSO	Starter repair kits
SP6014	DENSO	Starter repair kits
71-82510	DENSO	Starter repair kits

128000-5080

Denso

SRS6063S	DENSO	Alternator repair kits
ARS9057S	DENSO	Alternator repair kits
ARS0032	DENSO	Alternator repair kits
ARS4010	DENSO	Alternator repair kits
ABE9157(KBC)	DENSO	Bearings
ABE9020(SKF)	DENSO	Bearings
ABE9035(NTN)	DENSO	Bearings
ABE9020(KOYO)	DENSO	Bearings
ABE9020(NTN)	DENSO	Bearings
ABE9035(NSK)	DENSO	Bearings
ABE9195(SKF)	DENSO	Bearings
ABE9020(NSK)	DENSO	Bearings
ABE9035	DENSO	Bearings
ABE9195(NSK)	DENSO	Bearings
ABE9010(SKF)	DENSO	Bearings
ABE9020(FAG)	DENSO	Bearings
ABE9010(NSK)	DENSO	Bearings
ABE9020	DENSO	Bearings
ABE9010	DENSO	Bearings
ABE9035(SKF)	DENSO	Bearings
140272	DENSO	Bearings
ABE9035(NACHI)	DENSO	Bearings
ABE9020(NACHI)	DENSO	Bearings
SP6053S	DENSO	Solenoid parts
SP6007	DENSO	Solenoid parts
66-82751	DENSO	Solenoid parts
SP6010	DENSO	Solenoid parts
66-82600	DENSO	Solenoid parts
SA6004	DENSO	Starter armatures
61-8202	DENSO	Starter armatures
SBH6032S	DENSO	Starter brush holders
69-8206-1	DENSO	Starter brush holders
0.1984.1(IKA)	DENSO	Starter brush sets
SB6004	DENSO	Starter brush sets
ZEN1215	DENSO	Starter drives
SD6025	DENSO	Starter drives
SDK6004S	DENSO	Starter drives
SD6040	DENSO	Starter drives
SD6039	DENSO	Starter drives
SDK6015P	DENSO	Starter drives
SP6006	DENSO	Starter repair kits
SRS6069S	DENSO	Starter repair kits
SRS6058S	DENSO	Starter repair kits
SGK6005S	DENSO	Starter repair kits
SP6014	DENSO	Starter repair kits

228000-0210

Denso

SRS6063S	DENSO	Alternator repair kits
ARS4010	DENSO	Alternator repair kits
ARS9057S	DENSO	Alternator repair kits
ARS0032	DENSO	Alternator repair kits
ABE9010(SKF)	DENSO	Bearings
ABE9195(NSK)	DENSO	Bearings
ABE9010(NSK)	DENSO	Bearings
ABE9157(KBC)	DENSO	Bearings
ABE9020(FAG)	DENSO	Bearings
ABE9020	DENSO	Bearings
ABE9010	DENSO	Bearings
ABE9020(SKF)	DENSO	Bearings
ABE9020(NACHI)	DENSO	Bearings
ABE9020(NTN)	DENSO	Bearings
ABE9020(KOYO)	DENSO	Bearings
ABE9020(NSK)	DENSO	Bearings
ABE9195(SKF)	DENSO	Bearings
140272	DENSO	Bearings
66-82600	DENSO	Solenoid parts
SP6053S	DENSO	Solenoid parts
66-82751	DENSO	Solenoid parts
SP6007	DENSO	Solenoid parts
SP6010	DENSO	Solenoid parts
SA6004	DENSO	Starter armatures
61-8202	DENSO	Starter armatures
SBH6032S	DENSO	Starter brush holders
69-8206-1	DENSO	Starter brush holders
SB6004	DENSO	Starter brush sets
0.1984.1(IKA)	DENSO	Starter brush sets
SD6039	DENSO	Starter drives
SP6014	DENSO	Starter repair kits
SGK6005S	DENSO	Starter repair kits
SRS6019	DENSO	Starter repair kits
SRS6069S	DENSO	Starter repair kits
SP6006	DENSO	Starter repair kits
SRS6058S	DENSO	Starter repair kits

228000-0211

Denso

SRS6063S	DENSO	Alternator repair kits
ARS4010	DENSO	Alternator repair kits
ARS9057S	DENSO	Alternator repair kits
ARS0032	DENSO	Alternator repair kits
ABE9020(NTN)	DENSO	Bearings
ABE9020(KOYO)	DENSO	Bearings
ABE9010	DENSO	Bearings
ABE9020(NSK)	DENSO	Bearings
ABE9195(SKF)	DENSO	Bearings
ABE9010(SKF)	DENSO	Bearings
ABE9195(NSK)	DENSO	Bearings
ABE9010(NSK)	DENSO	Bearings
ABE9157(KBC)	DENSO	Bearings
140272	DENSO	Bearings
ABE9035(NTN)	DENSO	Bearings
ABE9035(NSK)	DENSO	Bearings
ABE9035(SKF)	DENSO	Bearings
ABE9035(NACHI)	DENSO	Bearings
ABE9035	DENSO	Bearings
ABE9020(NACHI)	DENSO	Bearings
ABE9020(FAG)	DENSO	Bearings
ABE9020(SKF)	DENSO	Bearings
ABE9020	DENSO	Bearings
SP6007	DENSO	Solenoid parts
SP6010	DENSO	Solenoid parts
SP6053S	DENSO	Solenoid parts
66-82751	DENSO	Solenoid parts
66-82600	DENSO	Solenoid parts
SA6004	DENSO	Starter armatures
61-8202	DENSO	Starter armatures
SBH6032S	DENSO	Starter brush holders
69-8206-1	DENSO	Starter brush holders
SB6004	DENSO	Starter brush sets
0.1984.1(IKA)	DENSO	Starter brush sets
SD6040	DENSO	Starter drives
SD6025	DENSO	Starter drives
SD6039	DENSO	Starter drives
ZEN1215	DENSO	Starter drives
SRS6069S	DENSO	Starter repair kits
SGK6005S	DENSO	Starter repair kits
SRS6058S	DENSO	Starter repair kits
SP6006	DENSO	Starter repair kits
SP6014	DENSO	Starter repair kits

242-101

Dixie

S-8701

Dixie

25-1117

Elstock

SG0238

Ghibaudi

JS319

Hc Parts

JS645

Hc Parts

8EA726416-001

Hella

J5214024

Herth+buss

31200-P2A-004

Honda

SD9066	HONDA	Starter drives
66-8504	HONDA	Starter solenoids

31200-P2A-014

Honda

SD9066	HONDA	Starter drives
66-8504	HONDA	Starter solenoids

31200-P2C-004

Honda

SD9213P	HONDA	Starter drives
SD9066	HONDA	Starter drives
66-8504	HONDA	Starter solenoids

31200-PCO-883

Honda

31200-PEO-461

Honda

31200-PEO-661

Honda

31200-PEO-662

Honda

31200-PEO-663

Honda

31200-PEO-664

Honda

31200-PEO-665

Honda

STU0319

Krauf

20319

Kuhner

20645

Kuhner

20645K

Kuhner

254883

Kuhner

LRS00719

Lucas

LRS719

Lucas

SM-302-05

Mitsuba

SM-302-07

Mitsuba

140224	MITSUBA	Bearings
ABE9117(NTN)	MITSUBA	Bearings
ABE9117(NSK)	MITSUBA	Bearings
SB9048P	MITSUBA	Starter brush sets
SB9048S	MITSUBA	Starter brush sets
140706	MITSUBA	Starter brush sets
140648	MITSUBA	Starter bushings
SD9184P	MITSUBA	Starter drives
SD9030	MITSUBA	Starter drives
SS9238P	MITSUBA	Starter solenoids
SS9238S	MITSUBA	Starter solenoids

SM-302-25

Mitsuba

140224	MITSUBA	Bearings
ABE9117(NTN)	MITSUBA	Bearings
ABE9117(NSK)	MITSUBA	Bearings
140706	MITSUBA	Starter brush sets
SB9048P	MITSUBA	Starter brush sets
SB9048S	MITSUBA	Starter brush sets
140648	MITSUBA	Starter bushings
SD9184P	MITSUBA	Starter drives
SD9030	MITSUBA	Starter drives
SS9035P	MITSUBA	Starter solenoids
SS9035	MITSUBA	Starter solenoids

SM-302-48

Mitsuba

ABE9117(NSK)	MITSUBA	Bearings
ABE9117(NTN)	MITSUBA	Bearings
ABE9019(NACHI)	MITSUBA	Bearings
ABE9019(KOYO)	MITSUBA	Bearings
140224	MITSUBA	Bearings
ABE9019	MITSUBA	Bearings
ZS0002	MITSUBA	Bearings
ABE9019(NTN)	MITSUBA	Bearings
ABE9019(NSK)	MITSUBA	Bearings
ABE9019(SKF)	MITSUBA	Bearings
SB6004	MITSUBA	Starter brush sets
140706	MITSUBA	Starter brush sets
0.1984.1(IKA)	MITSUBA	Starter brush sets
140648	MITSUBA	Starter bushings
SP6014	MITSUBA	Starter repair kits
SS9035	MITSUBA	Starter solenoids
SS9035P	MITSUBA	Starter solenoids

SM-422-09

Mitsuba

ABE9020	MITSUBA	Bearings
ABE9020(FAG)	MITSUBA	Bearings
140272	MITSUBA	Bearings
ABE9117(NSK)	MITSUBA	Bearings
ABE9020(SKF)	MITSUBA	Bearings
ABE9117(NTN)	MITSUBA	Bearings
ABE9020(NACHI)	MITSUBA	Bearings
ABE9020(NTN)	MITSUBA	Bearings
ABE9020(KOYO)	MITSUBA	Bearings
ABE9020(NSK)	MITSUBA	Bearings
ABE9195(SKF)	MITSUBA	Bearings
ABE9010(SKF)	MITSUBA	Bearings
ABE9195(NSK)	MITSUBA	Bearings
ABE9010(NSK)	MITSUBA	Bearings
ABE9010	MITSUBA	Bearings
140224	MITSUBA	Bearings
SA9064S	MITSUBA	Starter armatures
232311	MITSUBA	Starter brush holders
140841	MITSUBA	Starter brush sets
SB3006	MITSUBA	Starter brush sets
SD9184P	MITSUBA	Starter drives
SD9213P	MITSUBA	Starter drives
SD9066	MITSUBA	Starter drives
SD9030	MITSUBA	Starter drives
66-8504	MITSUBA	Starter solenoids
SS9013	MITSUBA	Starter solenoids
SS9241S	MITSUBA	Starter solenoids

SM-442-10

Mitsuba

ABE9020(SKF)	MITSUBA	Bearings
ABE9010	MITSUBA	Bearings
ABE9020(NTN)	MITSUBA	Bearings
ABE9020(NACHI)	MITSUBA	Bearings
ABE9020(NSK)	MITSUBA	Bearings
ABE9020(KOYO)	MITSUBA	Bearings
ABE9010(SKF)	MITSUBA	Bearings
ABE9195(SKF)	MITSUBA	Bearings
ABE9010(NSK)	MITSUBA	Bearings
ABE9195(NSK)	MITSUBA	Bearings
ABE9020	MITSUBA	Bearings
ABE9020(FAG)	MITSUBA	Bearings
140272	MITSUBA	Bearings
SB3006	MITSUBA	Starter brush sets
140841	MITSUBA	Starter brush sets
SD9066	MITSUBA	Starter drives
SS9174S	MITSUBA	Starter solenoids
66-8504	MITSUBA	Starter solenoids
SS9013	MITSUBA	Starter solenoids
66-8506	MITSUBA	Starter solenoids
SS9241S	MITSUBA	Starter solenoids
SS9174P	MITSUBA	Starter solenoids

SM-44210

Mitsuba

ABE9195(NSK)	MITSUBA	Bearings
ABE9020	MITSUBA	Bearings
ABE9020(FAG)	MITSUBA	Bearings
140272	MITSUBA	Bearings
ABE9020(SKF)	MITSUBA	Bearings
ABE9010	MITSUBA	Bearings
ABE9020(NTN)	MITSUBA	Bearings
ABE9020(NACHI)	MITSUBA	Bearings
ABE9020(NSK)	MITSUBA	Bearings
ABE9020(KOYO)	MITSUBA	Bearings
ABE9010(SKF)	MITSUBA	Bearings
ABE9195(SKF)	MITSUBA	Bearings
ABE9010(NSK)	MITSUBA	Bearings
SB3006	MITSUBA	Starter brush sets
140841	MITSUBA	Starter brush sets
SD9066	MITSUBA	Starter drives
66-8504	MITSUBA	Starter solenoids
SS9013	MITSUBA	Starter solenoids
66-8506	MITSUBA	Starter solenoids
SS9241S	MITSUBA	Starter solenoids
SS9174P	MITSUBA	Starter solenoids
SS9174S	MITSUBA	Starter solenoids

SM422-09

Mitsuba

ABE9020	MITSUBA	Bearings
ABE9020(FAG)	MITSUBA	Bearings
140272	MITSUBA	Bearings
ABE9117(NSK)	MITSUBA	Bearings
ABE9020(SKF)	MITSUBA	Bearings
ABE9117(NTN)	MITSUBA	Bearings
ABE9020(NACHI)	MITSUBA	Bearings
ABE9020(NTN)	MITSUBA	Bearings
ABE9020(KOYO)	MITSUBA	Bearings
ABE9020(NSK)	MITSUBA	Bearings
ABE9195(SKF)	MITSUBA	Bearings
ABE9010(SKF)	MITSUBA	Bearings
ABE9195(NSK)	MITSUBA	Bearings
ABE9010(NSK)	MITSUBA	Bearings
ABE9010	MITSUBA	Bearings
140224	MITSUBA	Bearings
SA9064S	MITSUBA	Starter armatures
232311	MITSUBA	Starter brush holders
140841	MITSUBA	Starter brush sets
SB3006	MITSUBA	Starter brush sets
SD9184P	MITSUBA	Starter drives
SD9213P	MITSUBA	Starter drives
SD9066	MITSUBA	Starter drives
SD9030	MITSUBA	Starter drives
66-8504	MITSUBA	Starter solenoids
SS9013	MITSUBA	Starter solenoids
SS9241S	MITSUBA	Starter solenoids

88212644

Powermax

66925103

Prestolite

MAV5930

SIOM

STX200709

Stardax

STX200709R

Stardax

STX200986

Stardax

STX200986R

Stardax

17587N

Wai / Transpo

Usage

Brand	Model	Type	Year	Note
HONDA	Civic 1.2	[AGAH]	01.1985-12.1987
HONDA	Civic 1.2	[ECEDEE]	01.1987-12.1991
HONDA	Civic 1.3	[AGAH]	01.1983-12.1987
HONDA	Civic 1.3	[ECEDEE]	01.1987-12.1991
HONDA	Civic 1.3	[EGEHEJ]	01.1991-12.1995
HONDA	Civic 1.4	[ECEDEE]	01.1987-12.1991
HONDA	Civic 1.5	[AGAH]	01.1983-12.1987
HONDA	Civic 1.5	[AGAH]	01.1985-12.1987
HONDA	Civic 1.5 i	[D15Z6]	11.1995-02.2001	AT
HONDA	Civic 1.5 i	[ECEDEE]	01.1987-12.1991
HONDA	Civic 1.5 i	[ECEDEE]	01.1988-12.1990
HONDA	Civic 1.5 i	[EGEHEJ]	01.1992-12.1995
HONDA	Civic 1.5 i	[EJEK]	01.1995-12.2001
HONDA	Civic 1.6 i	[D16Y7]	03.1996-03.2000	AT
HONDA	Civic 1.6 i	[ECEDEE]	01.1987-12.1991
HONDA	Civic 1.6 i VTEC	[D16Y6]	11.1995-02.2001	AT
HONDA	Civic 1.6 i VTEC	[D16Y8]	11.1995-02.2001	AT
HONDA	Civic 1.6 i VTEC	[D16Y8]	03.1996-03.2000	AT
HONDA	Civic 1.6 i VTEC	[EJEK]	01.1995-12.2001
HONDA	Civic 1.6 Si	[EGEHEJ]	01.1991-12.1993
HONDA	Civic 1.6 VTi	[B16A2]	11.1995-02.2001	AT
HONDA	Concerto 1.4	[HWHWW]	01.1989-12.1991
HONDA	Concerto 1.5	[HWHWW]	01.1989-12.1995
HONDA	Concerto 1.6 i	[HWHWW]	01.1989-12.1995
HONDA	CR-X 1.5	[AFAS]	01.1983-12.1987
HONDA	CR-X 1.6 i	[EDEE]	01.1987-12.1992
HONDA	Integra 1.5	[DA]	01.1985-12.1989
HONDA	Integra 1.6	[DA]	01.1986-12.1989
HONDA	Jazz 1.2	[AA]	01.1983-12.1986
HONDA	Shuttle 1.5	[RA]	01.1988-12.1992
HONDA	Shuttle 1.5 4x4	[RA]	01.1985-12.1987
ROVER	216 1.6 GSi	[XW]	01.1991-12.1999
ROVER	416 1.6 GSi	[XW]	01.1990-12.1996
ROVER	416 1.6 GTi	[XW]	01.1990-12.1995

Filters

Supplier

Manufacturer

Size a (mm)

Size b (mm)

Size c (mm)

Amp. (A)

Pulley

L.1 (mm)

G

No./teeth

No./teeth (fits into)

No./mount. holes

No./mount. holes with thread

Splines

O.d.1 (mm)

Power (Kw)

Power (kW)

Rotation

Voltage (v)

S9347S

Reference number

Usage

Contact

Suport

Menu

Menu
