S9430S


Code: S9430S

Category: Starters

Manufacturer: Iskra / Letrika

Supplier: As-pl

: IS1456

STANDARD LINE

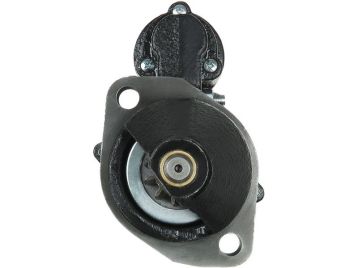

Brand new AS-PL Starter motor



Size a: 82.50 mm

Size b: 21.00 mm

C.1: 13.00 mm

C.2: 13.00 mm

L.1: 278.00 mm

No./teeth: 11

No./mount. holes: 2

No./mount. holes with thread: 0

O.1: 105.00 mm

Power: 3.20 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
S9430S As-pl
UD19377SAs-pl
CST21185ASCasco
CST21185GSCasco
STR79417Electrolog
000050476101Hatz
000050476102Hatz
000050648800Hatz
02502000Hatz
504761011053Hatz
50476102Hatz
505407001023Hatz
50648800Hatz
11.131.820 Iskra / Letrika
11.132.389 Iskra / Letrika
AZE4182 Iskra / Letrika
AZE4285 Iskra / Letrika
IS1456 Iskra / Letrika
STI4285Krauf
255839Kuhner
255839MKuhner
331020Logistik
72412085Mahle
MS725Mahle
730.511.112.090Psh
730.511.112.310Psh
730.511.112.770Psh
20419581BNReal
20419581OEReal
182-30492Robert's
6021185.0Sando
6021185.1Sando
S12ML0391A2Sidat
18236NWai / Transpo
MAHMS725Woodauto


Usage

BrandModelTypeYearNote
HATZEngine[2M41]
HATZEngine[4L41]
HATZEngine 1.7[2L41C]
HATZEngine 1.7[2M41]
HATZEngine 2.6[3L41C]
HATZEngine 2.6[3M41]
HATZEngine 2.6[3M43-DPF]
HATZEngine 2.6[3M43-EGR]
HATZEngine 3.4[4L42C]
HATZEngine 3.4[4M41]
HATZEngine 3.4[4M42-EGR]
HATZEngine 3.4[4M42]
HATZEngine 3.4[4M43-DFP]
HATZEngine 3.4[4M43-EGR]
HATZEngine 3.4[4M43]
HuedigSDVA 200 3.4[4L41C]
LOMBARDINI1503 M 1.601.1996-
LOMBARDINI2004 M 2.101.1996-
LOMBARDINI2004 TBI 2.101.1996-
SelwoodH80 3.4[4L41C]
SelwoodHSP20 1.7[2L41C]
SelwoodHSP35 2.6[3L41C]
TurbosolTB 30 2.6[3M41]
