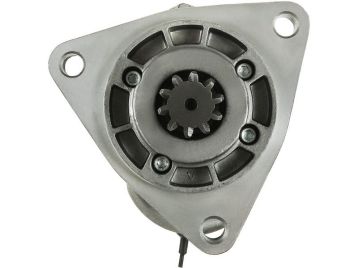

S9459(LETRIKA)


Code: S9459(LETRIKA)

Category: Starters

Manufacturer: Iskra / Letrika

Supplier: Letrika

PREMIUM LINE

Brand new OEM ISKRA / LETRIKA Starter motor


Size a: 100.00 mm

Size b: 34.00 mm

C.1: 13.00 mm

C.2: 13.00 mm

C.3: 13.00 mm

L.1: 240.00 mm

No./teeth: 10

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 127.00 mm

O.2: 127.00 mm

O.3: 127.00 mm

Power: 3.60 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
UD815870(LETRIKA)SAs-pl
CT230P370800Bate
STR79611Electrolog
11.139.199Iskra / Letrika
AZF4910Iskra / Letrika
IS9497Iskra / Letrika
72524309Mahle
MS1002Mahle
MAHMS1002Woodauto


Usage

BrandModelTypeYearNote
BELARUS1005 4.8 Turbo[MMZD-245S]
BELARUS1021 4.8 Turbo[MMZD-245S]
BELARUS1021.3 4.8 Turbo[MMZ.D-245S2]01.2007-
BELARUS1021.4 4.8[D-245S3A]01.2013-
BELARUS1025 4.8[MMZD-245]
BELARUS1025.3 T 4.8[D-245S2]01.2004-
BELARUS1025.4 4.8[D-245S3B]01.2013-
BELARUS1025.4 T 4.8[D-245S2]01.2008-
BELARUS1025.4-10/91 4.8[MMZD-245S3A]
BELARUS1025.4-10/99 4.0[TCD2012L04-2VC3UT83]
BELARUS1025.5[D-245.5S3B]
BELARUS1025XL 4.8[MMZD-245]
BELARUS1220.3 4.8[MMZD-245.252]
BELARUS1220.4 4.8[MMZD-245.2S3]
BELARUS1522 7.1[MMZD-260.6]
BELARUS323.5 4.8[D-245.5S3B]01.2013-
BELARUS510 4.8[MMZD-244]
BELARUS510E 4.8[MMZD-244]
BELARUS512E 4.8[MMZD-244]
BELARUS520 4.8[MMZD-242]
BELARUS522 4.8[MMZD-242]
BELARUS570 4.8[MMZD-242]01.1990-
BELARUS572 4.8[MMZD-242]01.1990-
BELARUS80.1 4.8[MMZD-243]
BELARUS800 4.8[MMZD-243]01.1979-12.1996
BELARUS800M 4.8[MMZD-243]01.1979-12.1996
BELARUS802 4.8[MMZ]01.1977-12.1996
BELARUS805 4.8[MMZ]01.1977-12.1996
BELARUS82.1 4.8[MMZD-243]
BELARUS820 4.8[MMZD-243]
BELARUS820 4.8[MMZD-243]01.1977-12.1996
BELARUS820R 4.8[MMZD-243]
BELARUS822 4.8[MMZ]01.1977-12.1996
BELARUS825 4.8[MMZ]01.1977-12.1996
BELARUS825R 4.8[MMZ]01.1977-12.1996
BELARUS890 4.8 Turbo[MMZD-245.5]
BELARUS892 4.8 Turbo[MMZD-245.5]
BELARUS892.2 4.8[MMZD-245.5]
BELARUS900 4.8[MMZD-243]01.1977-12.1996
BELARUS900S 4.8[MMZD-243]
BELARUS902 4.8[MMZ]01.1977-12.1996
BELARUS905 4.8[MMZ]01.1977-12.1996
BELARUS920 4.8[MMZD-243]01.1994-12.1996
BELARUS920.3 4.8[MMZD-245.43S3A]
BELARUS920.3-70 4.8[MMZD-245.43S3A]
BELARUS920.3A 4.8[MMZD-245]
BELARUS920.4 4.8[D-245.43S3A]01.2013-
BELARUS920.4-10/91 4.8[MMZD-245.43S3A]01.2008-
BELARUS921.3 4.8[MMZD-245.5S2]
BELARUS922 4.8[MMZD-245.5]01.1994-
BELARUS922.3 4.8[MMZD-245.5S2]
BELARUS922.4 4.8[D-245.5S3A]01.2013-
BELARUS922.5 4.8[D-245.5S3B]01.2013-
BELARUS923,3 4.8[D-245,5S2]01.2009-
BELARUS923.4 4.8[D-245.5S3A]01.2013-
BELARUS925 4.8[MMZ]01.1977-12.1996
BELARUS925.4 4.8[MMZD-245S3A]
BELARUS950 4.8[MMZD-245.5]01.1994-
BELARUS950S 4.8[MMZD-243]
BELARUS952 4.8[MMZD-245.5]01.1994-
BELARUS952.2 4.8[MMZD-245.5]
BELARUS952.2-70 4.8[MMZD245.5]
BELARUS952.3 T 4.8[D-245.5S2]
BELARUS952.4-10/91 4.8[MMZD-245.43S3A]01.2008-
BELARUS952.5 4.8[D-245.5S3B]01.2013-
BELARUS952S 4.8[MMZD-243]
BELARUS952XL 4.8[MMZD-243]
