S9471S


Code: S9471S

Category: Starters

Manufacturer: MAHLE/ISKRA/LETRIKA

Supplier: As-pl

: 11.131.485

STANDARD LINE

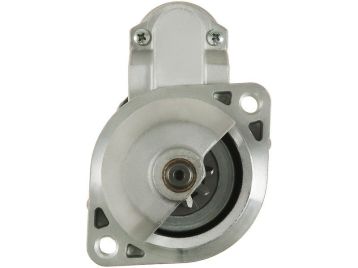

Brand new AS-PL Starter motor



Size a: 76.00 mm

Size b: 25.00 mm

C.1: 9.50 mm

C.2: 9.50 mm

L.1: 241.00 mm

No./teeth: 9

No./mount. holes: 2

No./mount. holes with thread: 0

O.1: 105.00 mm

Power: 3.00 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
UD21219SAs-pl
CST21634GSCasco
11.131.431 Iskra / Letrika
11.131.485 Iskra / Letrika
AZE6508 Iskra / Letrika
AZE6517 Iskra / Letrika
IS1124 Iskra / Letrika
STI2511Krauf
254446MKuhner
332202Logistik
58402300Lombardini
58402350Lombardini
72736069MAHLE/ISKRA/LETRIKA
MS441MAHLE/ISKRA/LETRIKA
691.510.092.090Psh
691.510.092.315Psh
20419436OEReal
182-30359Robert's
6021634.1Sando
MAV236340SIOM
MAHMS441Woodauto


Usage

BrandModelTypeYearNote
BELARUS422 2.1[LDW2204]
BELARUS622 2.1[LDW2204T]
LOMBARDINIEngine 2.2[LDW2204MT]
LOMBARDINIEngine 2.2[LDW2204M]
LOMBARDINIEngine 2.2[LDW2204TSD]
