S9567S
Code: S9567S
Category: Starters
Manufacturer: United Technologies
Supplier: As-pl
STANDARD LINE

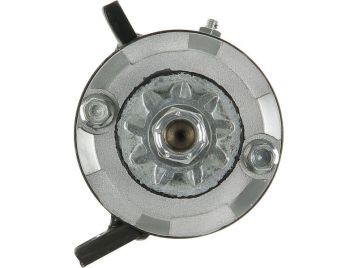

Brand new AS-PL Starter motor
Size b: 43.00 mm
C.1: 9.00 mm
C.2: 8.00 mm
C.3: 10.00 mm
L.1: 210.00 mm
No./teeth: 9
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 81.00 mm
O.2: 120.00 mm
O.3: 70.00 mm
Power: 0.60 kW
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | ||||
| 10439030 | Alanko | ||||
| SAB0078 | Arrowhead | ||||
| UD13690S | As-pl | ||||
| 0586279DS200 | Bombardier | ||||
| 110647 | Cargo | ||||
| 112155 | Cargo | ||||
| F032110647 | Cargo | ||||
| CST11121AS | Casco | ||||
| 104252 | Farcom | ||||
| |||||
| US876 | Hc Parts | ||||
| 3117809 | Henkel Parts | ||||
| 10011121AV | Itab Automotive | ||||
| STZ1751 | Krauf | ||||
| 60876 | Kuhner | ||||
| 5713 | Lester | ||||
| 583482 | OMC | ||||
| MS689 | Prestolite | ||||
| 400.039.093.200 | Psh | ||||
| 20412121BN | Real | ||||
| 6011121.0 | Sando | ||||
| MAV131210A | SIOM | ||||
| 5059240 | United Technologies | ||||
| 5059240MO30SM | United Technologies | ||||
| 5704640M030SM | United Technologies | ||||
| 5704640MO30SM | United Technologies | ||||
| SM57046 | United Technologies | ||||
| 2-2160 | Wai / Transpo | ||||
| 5713N | Wai / Transpo | ||||
| 71-09-5713 | Wilson | ||||
| 91-09-1042 | Wilson | ||||
| STR1067 | Woodauto | ||||
| STR88209 | Woodauto | ||||
| WOOSTR88209 | Woodauto | ||||
Usage
| Brand | Model | Type | Year | Note |
| Evinrude | E40E | [44.9ci-40H.P.] | 01.1989-12.1998 | |
| Evinrude | E40EL | [44.9ci-40H.P.] | 01.1989-12.1998 | |
| Evinrude | E40TE | [44.9ci-40H.P.] | 01.1989-12.1998 | |
| Evinrude | E40TEL | [44.9ci-40H.P.] | 01.1989-12.1998 | |
| Evinrude | E40TL | [44.9ci-40H.P.] | 01.1989-12.1998 | |
| Evinrude | E40TTL | [44.9ci-40H.P.] | 01.1989-12.1998 | |
| Evinrude | E48ESL | [44.9ci-48H.P.] | 01.1987-12.1996 | |
| Evinrude | E50BE | [44.9ci-50H.P.] | 01.1989-12.1994 | |
| Evinrude | E50BEL | [44.9ci-50H.P.] | 01.1989-12.1995 | |
| Evinrude | E50TEL | [44.9ci-50H.P.] | 01.1989-12.1997 | |
| Evinrude | E50TL | [44.9ci-50H.P.] | 01.1989-12.1997 | |
| Johnson | 40E | [44.9ci-40H.P.] | 01.1989-12.1995 | |
| Johnson | 40EL | [44.9ci-40H.P.] | 01.1989-12.1998 | |
| Johnson | 40PL | [44.9ci-40H.P.] | 01.1999-12.2005 | |
| Johnson | 40R | [44.9ci-40H.P.] | 01.1989-12.2001 | |
| Johnson | 40TE | [44.9ci-40H.P.] | 01.1989-12.1998 | |
| Johnson | 40TEL | [44.9ci-40H.P.] | 01.1989-12.1998 | |
| Johnson | 40TL | [44.9ci-40H.P.] | 01.1989-12.1998 | |
| Johnson | 40TPL | [44.9ci-40H.P.] | 01.1999-12.2001 | |
| Johnson | 40TTL | [44.9ci-40H.P.] | 01.1989-12.1998 | |
| Johnson | 48ESL | [44.9ci-48H.P.] | 01.1987-12.1996 | |
| Johnson | 50EL | [44.9ci-50H.P.] | 01.1999-12.2001 | |
| Johnson | 50ESL | [44.9ci-50H.P.] | 01.1997-12.1998 | |
| Johnson | 50J Jet | [44.9ci-35H.P.] | 01.1991-12.1997 | |
| Johnson | 50PL | [44.9ci-50H.P.] | 01.1999-12.2005 | |
| Johnson | 50TEL | [44.9ci-50H.P.] | 01.1989-12.1995 | |
| Johnson | 50TLE | [44.9ci-50H.P.] | 01.1989-12.1998 | |
| Johnson | 50TSL | [44.9ci-50H.P.] | 01.1997-12.1998 |
