S9617S
Code: S9617S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

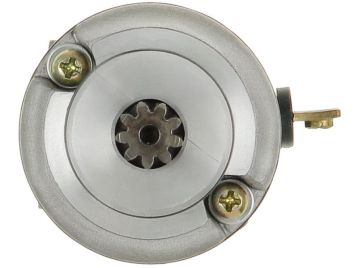

Brand new AS-PL Starter motor
Size b: 37.00 mm
C.1: 7.00 mm
C.2: 7.00 mm
L.1: 136.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 28.00 mm
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 10438051 | Alanko | |
| UD19008S | As-pl | |
| 256465 | Kuhner | |
| 18839 | Lester | |
| 18839N | Wai / Transpo | |
| 5UM-81890-00-00 | Yamaha | |
| 5UM-81890-10-00 | Yamaha |
Usage
| Brand | Model | Type | Year | Note |
| YAMAHA | WR 250 F | [249cc] | 01.2004-01.2005 | |
| YAMAHA | WR 250 F | [249cc] | 01.2005- | |
| YAMAHA | WR 250 F | [250cc] | 01.2001-12.2002 | |
| YAMAHA | WR 250 F | [250cc] | 01.2003-12.2004 | |
| Gasgas | EC 250 Cami F | [247cc] | 11.2013- |
