S9683S
Code: S9683S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

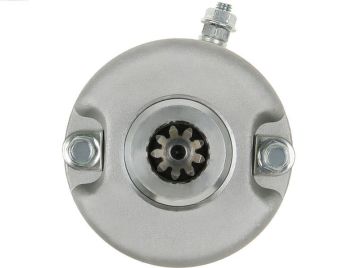

Brand new AS-PL Starter motor
Size b: 41.00 mm
C.1: 6.50 mm
C.2: 7.00 mm
L.1: 196.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 28.00 mm
Power: 0.50 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 10439149 | Alanko | |
| 439149 | Alanko | |
| SMU0287 | Arrowhead | |
| UD19129S | As-pl | |
| SMT142A | Autoteam | |
| 420-684-280 | Bombardier | |
| 420-684-282 | Bombardier | |
| CST33142AS | Casco | |
| 242-06134 | Dixie | |
| 10033142AV | Itab Automotive | |
| 410-54079 | J&n | |
| STZ2983 | Krauf | |
| 18823 | Lester | |
| 400.553.092.190 | Psh | |
| 20467241BN | Real | |
| 6033142.0 | Sando | |
| TT16578 | TESLA | |
| 18823N | Wai / Transpo | |
| 71-26-18823 | Wilson |
Usage
| Brand | Model | Type | Year | Note |
| Bombardier | Outlander 330 4x4 | [325cc] | 01.2004-12.2005 | |
| Bombardier | Outlander 400 2x4 | [400cc] | 01.2003-12.2006 | |
| Bombardier | Outlander 400 4x4 | [400cc] | 01.2003-12.2008 | |
| Bombardier | Outlander 400 XT 4x4 | [400cc] | 01.2003-12.2008 | |
| Bombardier | Outlander Max 400 4x4 | [400cc] | 01.2004-12.2008 | |
| Bombardier | Outlander Max 400 XT 4x4 | [400cc] | 01.2005-12.2006 |
