S9690S
Code: S9690S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

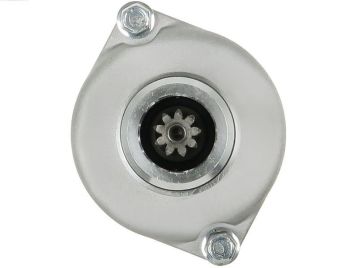

Brand new AS-PL Starter motor
Size b: 41.00 mm
C.1: 6.50 mm
C.2: 8.00 mm
L.1: 183.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 50.00 mm
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 10439198 | Alanko | |
| SMU0280 | Arrowhead | |
| UD19154S | As-pl | |
| SMT162A | Autoteam | |
| CST33162AS | Casco | |
| RS41239 | DELCO | |
| 242-06113 | Dixie | |
| MS-829 | Dixie | |
| MS-829N | Dixie | |
| 108745 | Farcom | |
| 3117850 | Henkel Parts | |
| 10033162AV | Itab Automotive | |
| 21163-0037 | Kawasaki | |
| 21163-1320 | Kawasaki | |
| 21163-1321 | Kawasaki | |
| STU1886 | Krauf | |
| 256008 | Kuhner | |
| 18719 | Lester | |
| 400.076.092.200 | Psh | |
| 20467261BN | Real | |
| 6033162.0 | Sando | |
| MAV351620A | SIOM | |
| K2116-31320 | Suzuki | |
| TT15937 | TESLA | |
| 18719N | Wai / Transpo | |
| 18719N-OE | Wai / Transpo | |
| 2-2417-MT | Wai / Transpo | |
| 71-26-18719 | Wilson |
Usage
| Brand | Model | Type | Year | Note |
| KAWASAKI | KRF750 Teryx 750 4x4 | [749cc] | 01.2008-12.2008 | |
| KAWASAKI | KRF750 Teryx 750 4x4 LE | [749cc] | 01.2008-12.2008 | |
| KAWASAKI | KRF750 Teryx 750 4x4 NRA | [749cc] | 01.2008-12.2008 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 | [749cc] | 01.2009-12.2009 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 | [749cc] | 01.2010-12.2011 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 | [749cc] | 01.2012-12.2012 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 LE | [749cc] | 01.2009-12.2009 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 LE | [749cc] | 01.2010-12.2011 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 LE | [749cc] | 01.2012-12.2012 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 LE NRA Outdoors | [749cc] | 01.2009-12.2009 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 LE Sport | [749cc] | 01.2009-12.2009 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 LE Sport ME | [749cc] | 01.2009-12.2009 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 SGE | [749cc] | 01.2010-12.2010 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 SGE | [749cc] | 01.2011-12.2011 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 SGE | [749cc] | 01.2012-12.2012 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 Sport | [749cc] | 01.2010-12.2011 | |
| KAWASAKI | KRF750 Teryx 750 FI 4x4 Sport | [749cc] | 01.2012-12.2012 | |
| KAWASAKI | KRT750 Teryx4 750 4x4 | [749cc] | 01.2012-12.2012 | |
| KAWASAKI | KRT750 Teryx4 750 4x4 EPS | [749cc] | 01.2012-12.2012 | |
| KAWASAKI | KRT750 Teryx4 750 4x4 EPS LE | [749cc] | 01.2012-12.2012 | |
| KAWASAKI | KSV700 A1-A8 | [697cc] | 01.2004-12.2008 | |
| KAWASAKI | KSV700 A9 | [697cc] | 01.2009-12.2009 | |
| KAWASAKI | KSV700 B1-B8 | [697cc] | 01.2004-12.2008 | |
| KAWASAKI | KSV700 B9 | [697cc] | 01.2009-12.2009 | |
| KAWASAKI | KSV700 C6F | [697cc] | 01.2006-12.2006 | |
| KAWASAKI | KVF650 Brute Force 4x4 650 D1-D8 | [633cc] | 01.2005-12.2008 | |
| KAWASAKI | KVF650 Brute Force 4x4 650 D9 | [633cc] | 01.2009-12.2009 | |
| KAWASAKI | KVF650 Brute Force 4x4 650 F6-F8 | [633cc] | 01.2006-12.2008 | |
| KAWASAKI | KVF650 Brute Force 4x4 650 F9 | [633cc] | 01.2009-12.2009 | |
| KAWASAKI | KVF650 Brute Force 4x4 650 H7-H8 | [633cc] | 01.2007-12.2008 | |
| KAWASAKI | KVF650 Brute Force 4x4 Hardwoods 650 E1-E8 | [633cc] | 01.2005-12.2008 | |
| KAWASAKI | KVF650 Brute Force 4x4 Hardwoods 650 E9 | [633cc] | 01.2009-12.2009 | |
| KAWASAKI | KVF650 Brute Force 4x4 Hardwoods 650 G6-G8 | [633cc] | 01.2006-12.2008 | |
| KAWASAKI | KVF650 Brute Force 4x4 Hardwoods 650 G9 | [633cc] | 01.2009-12.2009 | |
| KAWASAKI | KVF650 Prarie 650 4x4 ADV. Classic B2 | [633cc] | 01.2003-12.2003 | |
| KAWASAKI | KVF650 Prarie 650 A1-A2 | [633cc] | 01.2002-12.2003 | |
| KAWASAKI | KVF700 Prarie 700 A6F | [697cc] | 01.2004-12.2006 | |
| KAWASAKI | KVF750 Brute Force 750 4x4 A1-A7 | [749cc] | 01.2005-12.2007 | |
| KAWASAKI | KVF750 Brute Force 750 4x4 B1-B7 | [749cc] | 01.2005-12.2007 | |
| KAWASAKI | KVF750 Brute Force 750 4x4 C1-C7 | [749cc] | 01.2005-12.2007 | |
| KAWASAKI | KVF750 Brute Force 750 4x4 D8-D9 | [749cc] | 01.2008-12.2009 | |
| KAWASAKI | KVF750 Brute Force 750 4x4 E8-E9 | [749cc] | 01.2008-12.2009 | |
| KAWASAKI | KVF750 Brute Force 750 4x4 F8-F9 | [749cc] | 01.2008-12.2009 | |
| SUZUKI | LT-V700F Twin Peaks | [697cc] | 01.2004-12.2005 |
