S9705S
Code: S9705S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

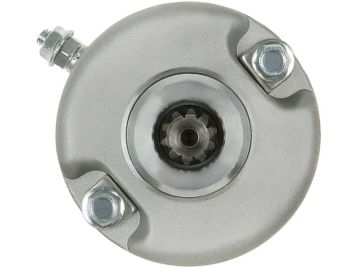

Brand new AS-PL Starter motor
Size b: 46.00 mm
C.1: 7.00 mm
C.2: 7.00 mm
L.1: 195.00 mm
No./teeth: 10
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 27.00 mm
Power: 0.30 kW
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD19172S | As-pl | |
| 242-06137 | Dixie | |
| 31200-HN2-003 | Honda | |
| 31200-HN2-A01 | Honda | |
| STU1501 | Krauf | |
| 18666 | Lester | |
| 400.905.102.190 | Psh | |
| 18666N | Wai / Transpo | |
| 71-26-18666 | Wilson |
Usage
| Brand | Model | Type | Year | Note |
| HONDA | TRX500FA Foreman Rubicon | [499cc] | 01.2001-12.2009 | |
| HONDA | TRX500FGA Foreman Rubicon | [499cc] | 01.2006-12.2008 | |
| HONDA | TRX500FGA Rubicon | [499cc] | 01.2004-12.2005 |
